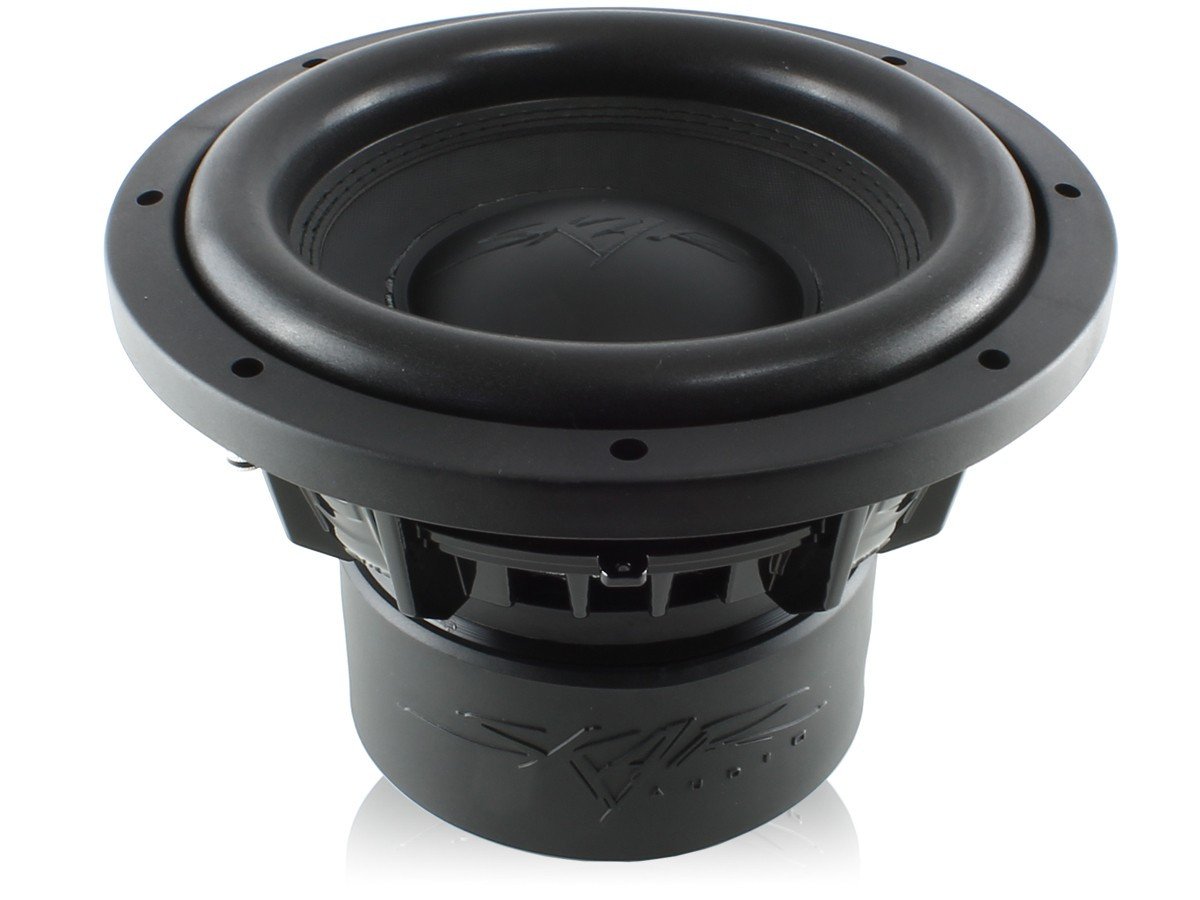

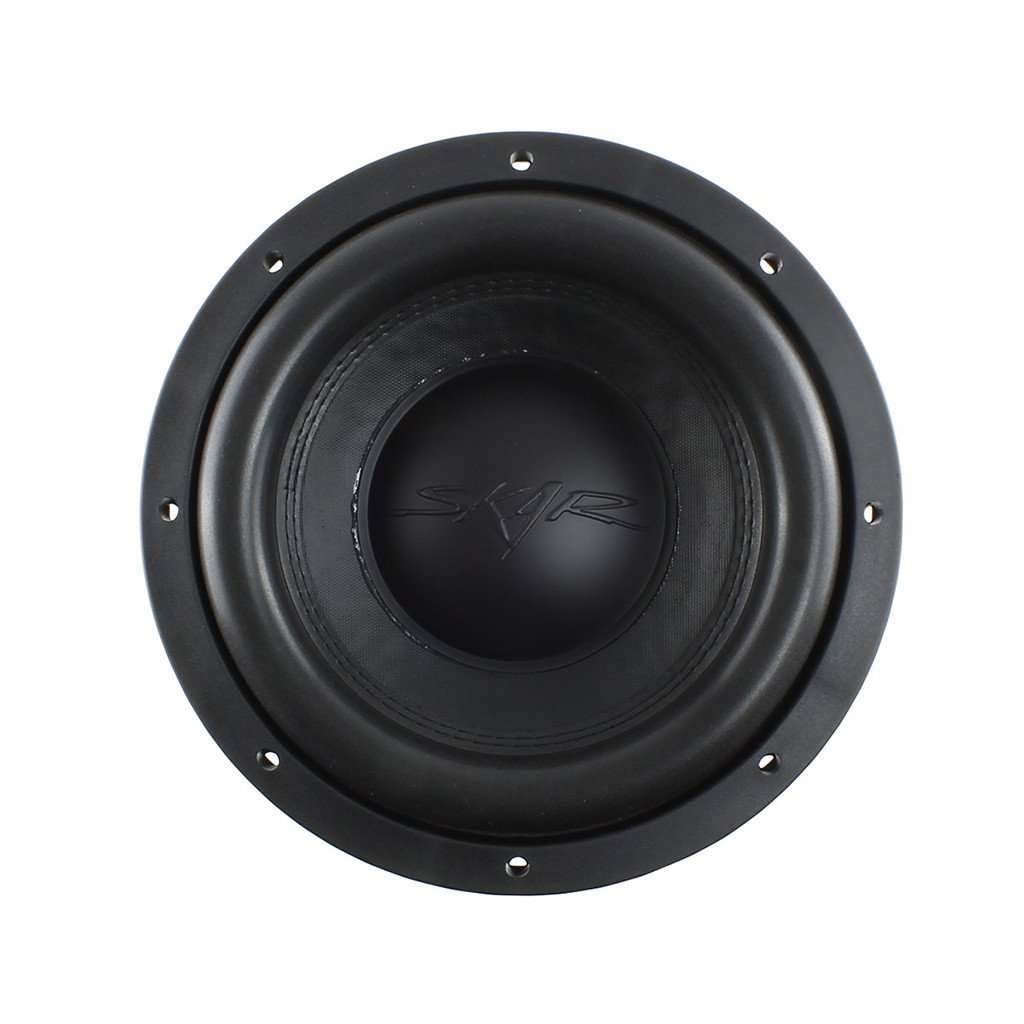

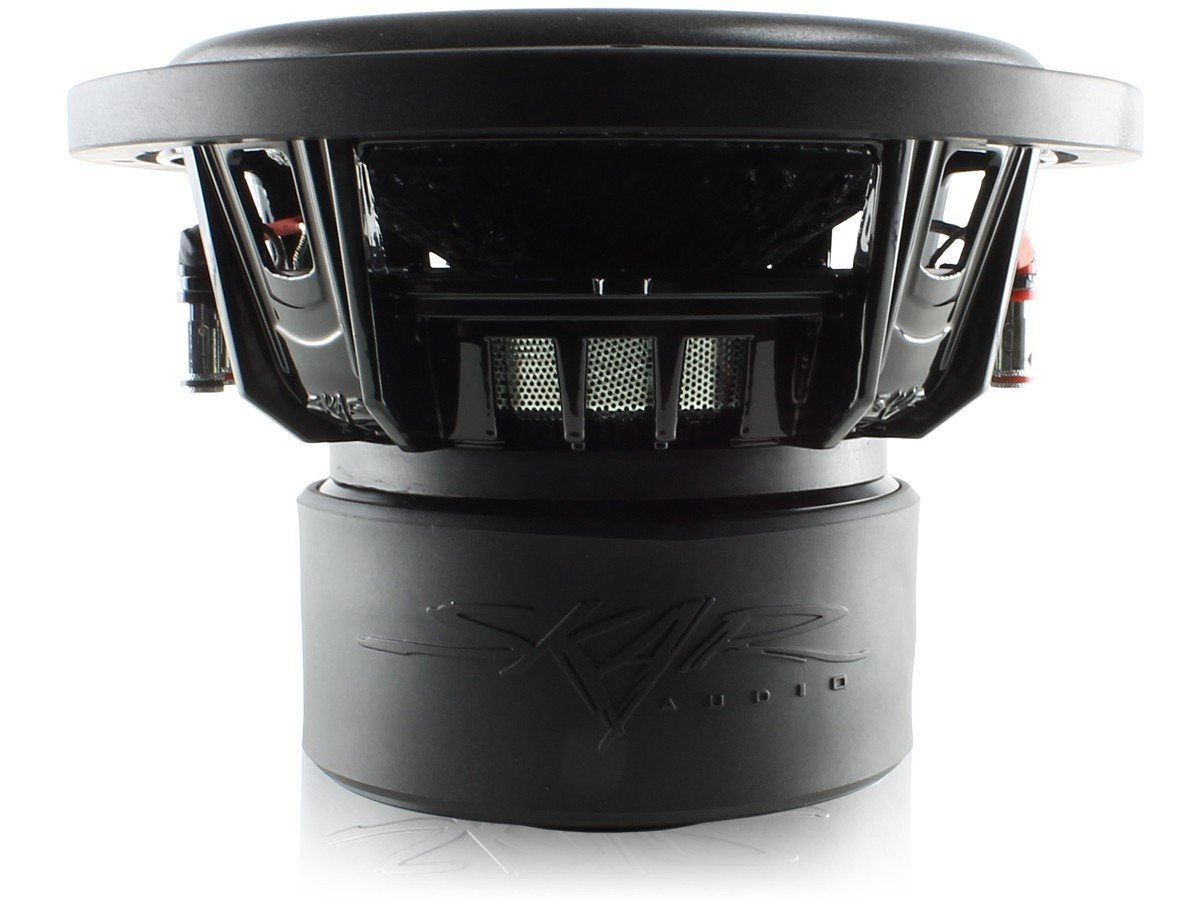

Skar Audio VVX-10v2 D2
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 10″ / 254 mm |
| Resonance | 41 Hz |
| Q factor | 0.52 |
| Sensitivity | 85.2 dB |
| Linear excursion | ± 18 mm |
| Program power | 1200 W |
Discontinued
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.2dB
- Frequency response 40 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 41Hz
- Mechanical quality factor QMS 4.18
- Electrical quality factor QES 0.49
- Total quality factor QTS 0.52
Large signal parameters
- Maximum linear excursion (one way) xmax 18mm
- Air volume displaced at xmax VD 684cm³
- Power handling P 600W
- Program power Pmax 1200W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series, estimated) LE 2.74mH
- VC Diameter 64mm
Magnet
- Force factor (in series) Bl 19.2N/A
- Motor constant Bl/√RE 10.1N/√W
- Diameter 165mm
Diaphragm
- Effective diameter 220mm
- Effective area SD 380cm²
- Moving mass (including air load) MMS 203g
- Moving mass MMD 198g
Suspensions
- Stiffness KMS 16.7N/mm
- Compliance CMS 60µm/N
- Equivalent volume to the compliance VAS 12.3L
- Mechanical resistance RMS 12.5N·s/m
Dimensions
- Nominal diameter 10″
- 254mm
- Baffle cutout diameter 236mm
- Mounting depth 170mm
- Volume occupied by the driver 3.4L
