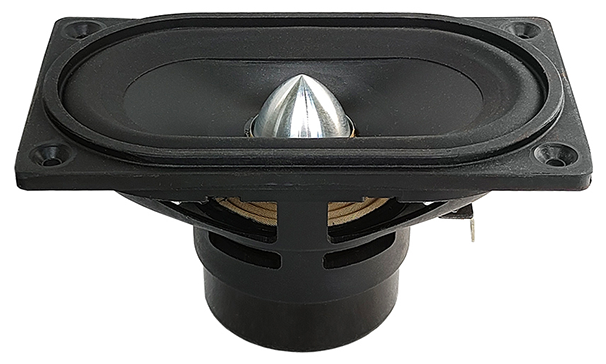

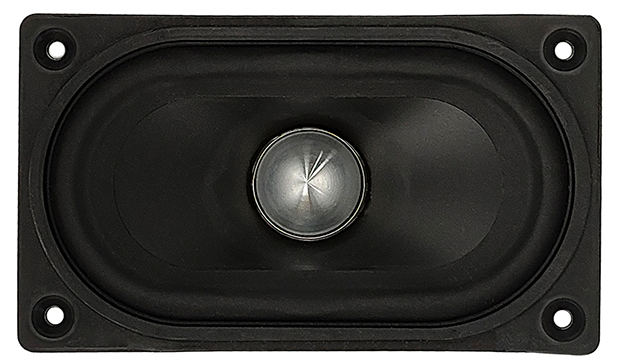

Tang Band W35-1315SJ
SE
SJ
Full-range
| Nominal size | 3x5″ / 76x127 mm |
| Resonance | 80 Hz |
| Q factor | 0.47 |
| Sensitivity | 87.7 dB |
| Linear excursion | ± 3 mm |
| Program power | 40 W |
.png)
.png)
.png)

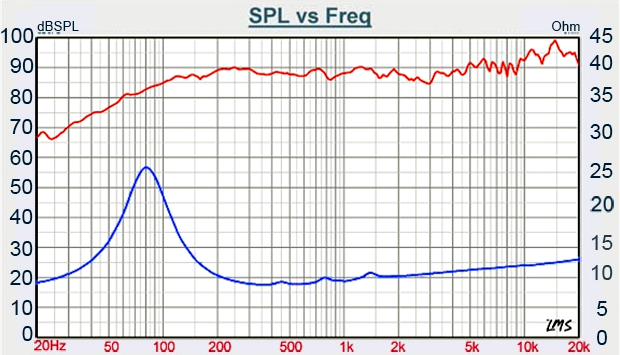

Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.7dB
- Frequency response 80 - 20000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 80Hz
- Mechanical quality factor QMS 1.75
- Electrical quality factor QES 0.63
- Total quality factor QTS 0.47
Large signal parameters
- Maximum linear excursion (one way) xmax 3mm
- Air volume displaced at xmax VD 14cm³
- Power handling P 20W
- Program power Pmax 40W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.8Ω
- Inductance (1kHz) LE 0.009mH
- VC Diameter 25.4mm
Magnet
- Force factor Bl 4.02N/A
- Motor constant Bl/√RE 1.54N/√W
- Air gap height HAG 10mm
- Material Neodymium
Diaphragm
- Effective diameter 77mm
- Effective area SD 47cm²
- Moving mass (including air load) MMS 2.99g
- Moving mass MMD 2.8g
- Material Black color Polypropylene-Mica
Suspensions
- Stiffness KMS 0.76N/mm
- Compliance CMS 1316µm/N
- Equivalent volume to the compliance VAS 4.13L
- Mechanical resistance RMS 0.86N·s/m
- Surround material Santoprene

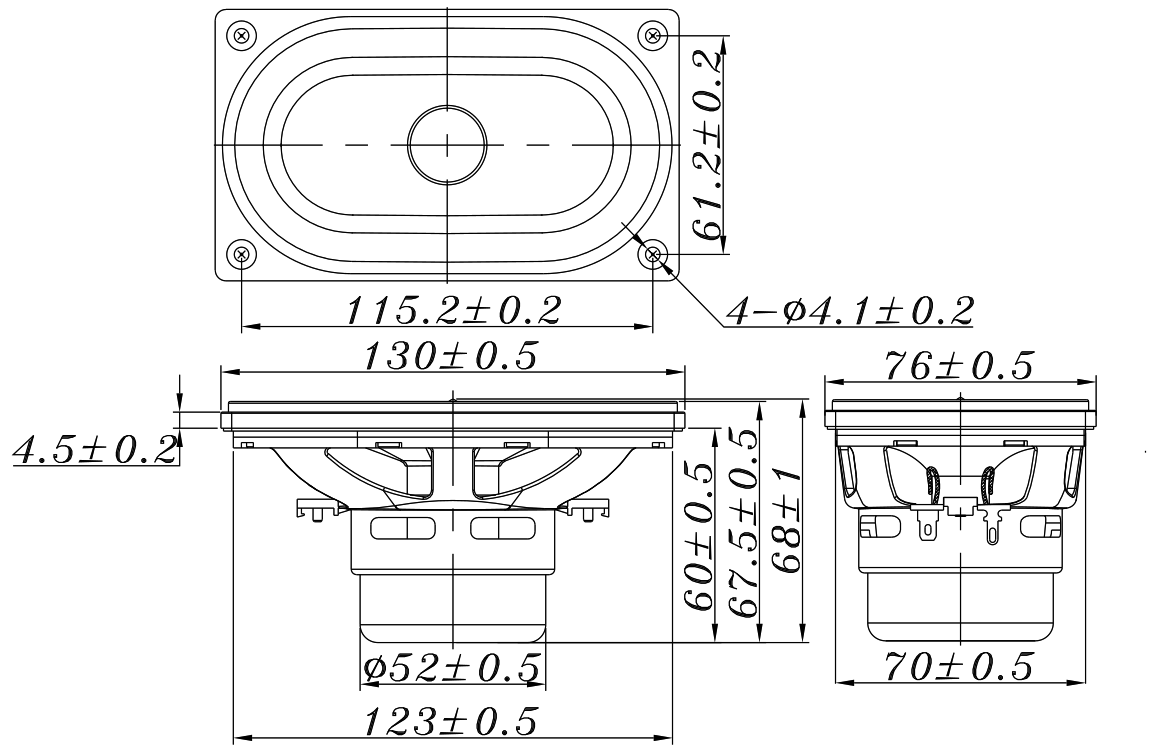

Dimensions
- Nominal size 3 x 5″
- 76 x 127mm
- Volume occupied by the driver (estimated) 0.24L
- Net weight 0.63kg
.png)
.png)
