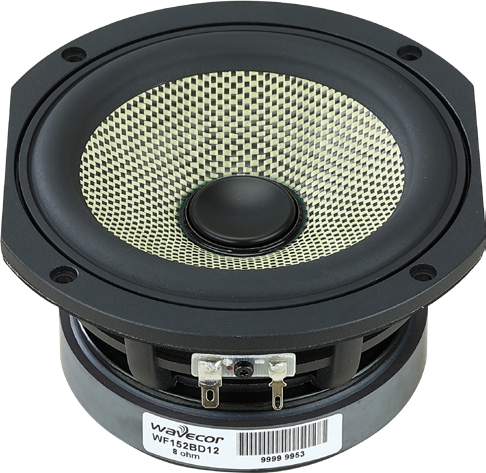

Mid Bass
6″ / 152 mm
Nominal diameter
46 Hz
Resonance
0.38
Q factor
87 dB
Sensitivity
± 4.5 mm
Linear excursion
250 W
Program Power
.jpg)
.jpg)
.webp)
- Sensitivity (1W, 1m, infinite baffle)
- SPL1W
- 86.7
- dB
- Frequency response
- 46 - 3000
- Hz
- Resonance frequency (free air)
- fS
- 46.0
- Hz
- Mechanical quality factor
- QMS
- 10.30
- Electrical quality factor
- QES
- 0.40
- Total quality factor
- QTS
- 0.38
- Maximum linear excursion
- xmax
- 4.5
- mm
- Air volume displaced at xmax
- VD
- 38
- cm³
- Power handling
- P
- 70
- W
- Program power
- Pmax
- 250
- W
- Nominal impedance
- Z
- 8
- Ω
- DC resistance
- RE
- 6.1
- Ω
- Inductance (1kHz, estimated)
- LE
- 0.35
- mH
- VC Diameter
- 32
- mm
- Winding height
- HVC
- 14
- mm
- Former material
- Black fiber glass
- Force factor
- Bl
- 7.2
- N/A
- Motor constant
- Bl/√RE
- 2.92
- N/√W
- Air gap height
- HAG
- 5
- mm
- Diameter
- 110
- mm
- Weight
- 0.65
- kg
- Effective diameter
- 104
- mm
- Effective area
- SD
- 85
- cm²
- Moving mass
- MMS
- 10.6
- g
- Moving mass (without air load)
- MMD
- 10
- g
- Material
- Kevlar/Carbon fiber
- Stiffness
- KMS
- 1.06
- N/mm
- Compliance
- CMS
- 940
- µm/N
- Equivalent volume to the compliance
- VAS
- 9.6
- L
- Mechanical resistance
- RMS
- 0.33
- N·s/m
- Nominal diameter
- 6
- ″
- 152
- mm
- Overall diameter
- 152
- mm
- Baffle cutout diameter
- 128
- mm
- Mounting depth
- 75
- mm
- Volume occupied by the driver (estimated)
- 0.69
- L
- Net weight
- 1.7
- kg
- Frame material
- Die cast aluminum
Thiele & Small parameters
Large signal parameters
Voice Coil
Magnet
Diaphragm
Suspensions
Dimensions
.png)
.png)
.webp)
.webp)
