16 results
Brand
ATOHMAcoustic EleganceAudesAurum CantusB&C SpeakerBMSBRAXBeymaBlack HydraCT SoundsCelestionCerwin VegaCiareD.A.S. AudioDB DriveDayton AudioESXETONEighteen SoundEminenceFaitalPROFaneFi Car AudioFocalFostexFountekGRSGoldwoodHELIXHertzJL AudioJensenKICKERKICXKartesianLaVoceLowtherMATCHMD LabMONACORMTX AudioMicro-PrecisionMorelObertonP.AudioPHL audioPRV AudioPUNKTKILDEPeerlessPioneerPowerBassPrecision DevicesPrideRCFRadianReckhornRockford FosgateSB AcousticsSEASSICASUPRAVOXScan-SpeakSkar AudioTang BandVISATONVOLTWVLWavecoraccutonmivoc
Type
SubwooferWooferMid BassMid-rangeFull-rangeCoaxial2 Way2 Way Kit3 WayBass Guitar SpeakerGuitar SpeakerLow frequencyMiniatureShallow SubwooferShallow WooferShallow Mid-WooferTriaxial
Available on
Amazon.comParts Express
•
Nominal diameter
″
•
SensitivitySPL1W
dB

Thiele & Small parameters

•
Resonance frequencyfS
Hz
•
Mechanical quality factorQMS
•
Electrical quality factorQES
•
Total quality factorQTS

Large signal parameters

•
Maximum linear excursionxmax
mm
•
Air volume displaced at xmaxVD
cm³
•
Program powerPmax
W

Voice Coil & Magnet

•
Nominal impedanceZ
Ω
•
DC resistanceRE
Ω
•
Force factorBl
N/A
•
Motor constantBl/√RE
N/√W
•
InductanceLE
mH
•
VC Diameter
mm

Diaphragm

•
Effective diameter
mm
•
Effective areaSD
cm²
•
Moving massMMS
g

Suspensions

•
StiffnessKMS
N/mm
•
ComplianceCMS
µm/N
•
Equivalent volume to CMSVAS
L
•
Mechanical resistanceRMS
N·s/m

Dimensions

•
Overall size
mm
•
Baffle cutout diameter
mm
•
Overall depth
mm
•
Mounting depth
mm
•
Volume occupied
L
•
Net weight
kg
PRV Audio MT6MR600CF-NDY-2 Low frequency

PRV Audio MT6MR600CF-NDY-2

2 Ω
6.5″ Low frequency
fS98.8 Hz
SD143 cm²
90 - 12000 Hz
QTS0.24
xmax3.3 mm
SPL1W94.3 dB
Bl/√RE6.56
Pmax600 W
PRV Audio 6MR600X-NDY-4 Mid-range

PRV Audio 6MR600X-NDY-4

4 Ω
6″ Mid-range
fS95.2 Hz
SD143 cm²
90 - 13000 Hz
QTS0.19
xmax3.5 mm
SPL1W96.2 dB
Bl/√RE6.87
Pmax600 W
PRV Audio 6MR600X-NDY Mid-range

PRV Audio 6MR600X-NDY

8 Ω
6″ Mid-range
fS95.2 Hz
SD143 cm²
90 - 13000 Hz
QTS0.22
xmax3.5 mm
SPL1W95.1 dB
Bl/√RE6.21
Pmax600 W
Kartesian Lom185_vKi Mid Bass

Kartesian Lom185_vKi

4 Ω
8″ Mid Bass
fS40 Hz
SD194 cm²
55 - 3000 Hz
QTS0.25
xmax8 mm
SPL1W90.6 dB
Bl/√RE5.29
Pmax300 W
SICA 6 Cx 2 PL Coaxial

SICA 6 Cx 2 PL

8 Ω
6″ Coaxial
fS85 Hz
SD123 cm²
80 - 20000 Hz
QTS0.24
xmax3.5 mm
SPL1W92.3 dB
Bl/√RE5.22
Pmax400 W
Oberton 6NMB200 Mid-range

Oberton 6NMB200

16 Ω
6.5″ Mid-range
fS91.5 Hz
SD139 cm²
200 - 5000 Hz
QTS0.24
xmax4.5 mm
SPL1W95.1 dB
Bl/√RE5.78
Pmax400 W
MONACOR SPH-165 Mid-range

MONACOR SPH-165

8 Ω
6.5″ Mid-range
fS33 Hz
SD137 cm²
33 - 5000 Hz
QTS0.21
xmax3.5 mm
SPL1W89.3 dB
Bl/√RE3.8
Pmax100 W
Discontinued
Fostex FE166En Full-range

Fostex FE166En

8 Ω
6.5″ Full-range
fS53 Hz
SD133 cm²
53 - 22000 Hz
QTS0.25
xmax1 mm
SPL1W95.7 dB
Bl/√RE2.85
Pmax65 W
Dayton Audio PS65LP-4 Full-range

Dayton Audio PS65LP-4

4 Ω
6.5″ Full-range
fS67.3 Hz
SD123 cm²
60 - 20000 Hz
QTS0.24
xmax4 mm
SPL1W94.3 dB
Bl/√RE3.35
Pmax80 W
Ciare CW162 Woofer

Ciare CW162

4 Ω
6.5″ Woofer
fS40 Hz
SD133 cm²
QTS0.21
xmax7 mm
SPL1W88.9 dB
Bl/√RE4.26
Pmax200 W
Discontinued

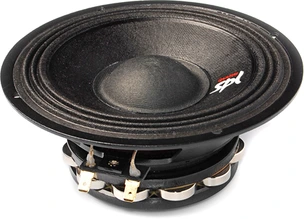

Ciare CM166ND Full-range

Ciare CM166ND

4 Ω
6.5″ Full-range
fS91.5 Hz
SD133 cm²
QTS0.17
xmax4.3 mm
SPL1W95.6 dB
Bl/√RE6.29
Pmax300 W
Aurum Cantus AC180/50F1 Woofer

Aurum Cantus AC180/50F1

8 Ω
8″ Woofer
fS33 Hz
SD168 cm²
33 - 5000 Hz
QTS0.25
xmax6 mm
SPL1W89.6 dB
Bl/√RE3.74
Pmax300 W
Aurum Cantus AC165/50CK Woofer

Aurum Cantus AC165/50CK

8 Ω
6.5″ Woofer
fS37 Hz
SD133 cm²
37 - 4500 Hz
QTS0.19
xmax6 mm
SPL1W92.2 dB
Bl/√RE4.65
Pmax300 W
Aurum Cantus AC165/50C2C Woofer

Aurum Cantus AC165/50C2C

8 Ω
6.5″ Woofer
fS37 Hz
SD133 cm²
37 - 4000 Hz
QTS0.19
xmax6 mm
SPL1W90.7 dB
Bl/√RE4.08
Pmax300 W
Eighteen Sound 6ND430 Woofer

Eighteen Sound 6ND430

4 Ω
6.5″ Woofer
fS64 Hz
SD133 cm²
63 - 5500 Hz
QTS0.24
xmax5 mm
SPL1W92 dB
Bl/√RE4.58
Pmax260 W
Eighteen Sound 6ND410 Mid-range

Eighteen Sound 6ND410

8 Ω
6.5″ Mid-range
fS120 Hz
SD143 cm²
200 - 8000 Hz
QTS0.24
xmax2 mm
SPL1W96.8 dB
Bl/√RE4.78
Pmax240 W
