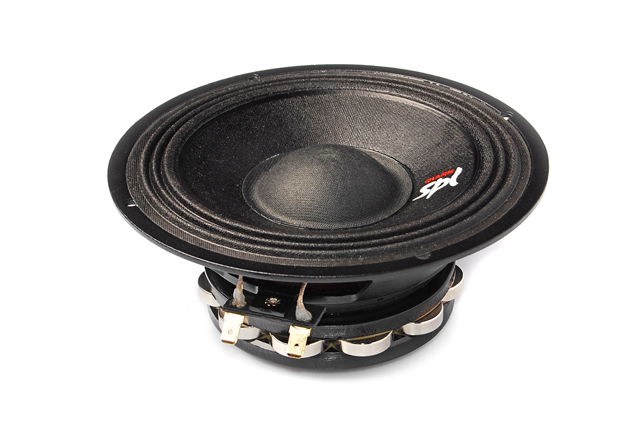

Ciare CM166ND
4Ω
Full-range
| Nominal diameter | 6.5″ / 165 mm |
| Resonance | 91.5 Hz |
| Q factor | 0.17 |
| Sensitivity | 95.6 dB |
| Linear excursion | ± 4.3 mm |
| Program Power | 300 W |
Discontinued
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.6dB
Thiele & Small parameters
- Resonance frequency (free air) fS 91.5Hz
- Mechanical quality factor QMS 4.70
- Electrical quality factor QES 0.18
- Total quality factor QTS 0.17
Large signal parameters
- Maximum linear excursion xmax 4.3mm
- Air volume displaced at xmax VD 57cm³
- Power handling P 150W
- Program power Pmax 300W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.1Ω
- Inductance (1kHz) LE 0.32mH
- VC Diameter 50mm
- Former material Kapton
Magnet
- Force factor Bl 11.1N/A
- Motor constant Bl/√RE 6.29N/√W
- Air gap height HAG 8mm
- Material Neodymium
Diaphragm
- Effective diameter 130mm
- Effective area SD 133cm²
- Moving mass MMS 12.4g
- Moving mass (without air load) MMD 11.2g
- Material Treated Cellulose
Suspensions
- Stiffness KMS 4.17N/mm
- Compliance CMS 240µm/N
- Equivalent volume to the compliance VAS 6.05L
- Mechanical resistance RMS 1.51N·s/m
- Surround material Nomex
Dimensions
- Nominal diameter 6.5″
- 165mm
- Overall diameter 165mm
- Overall depth 67mm
- Flange thickness 3mm
- Mounting depth 64mm
- Volume occupied by the driver (estimated) 0.37L
- Frame material Aluminium
.png)
.png)
