ATOHM LD150CR04
4Ω

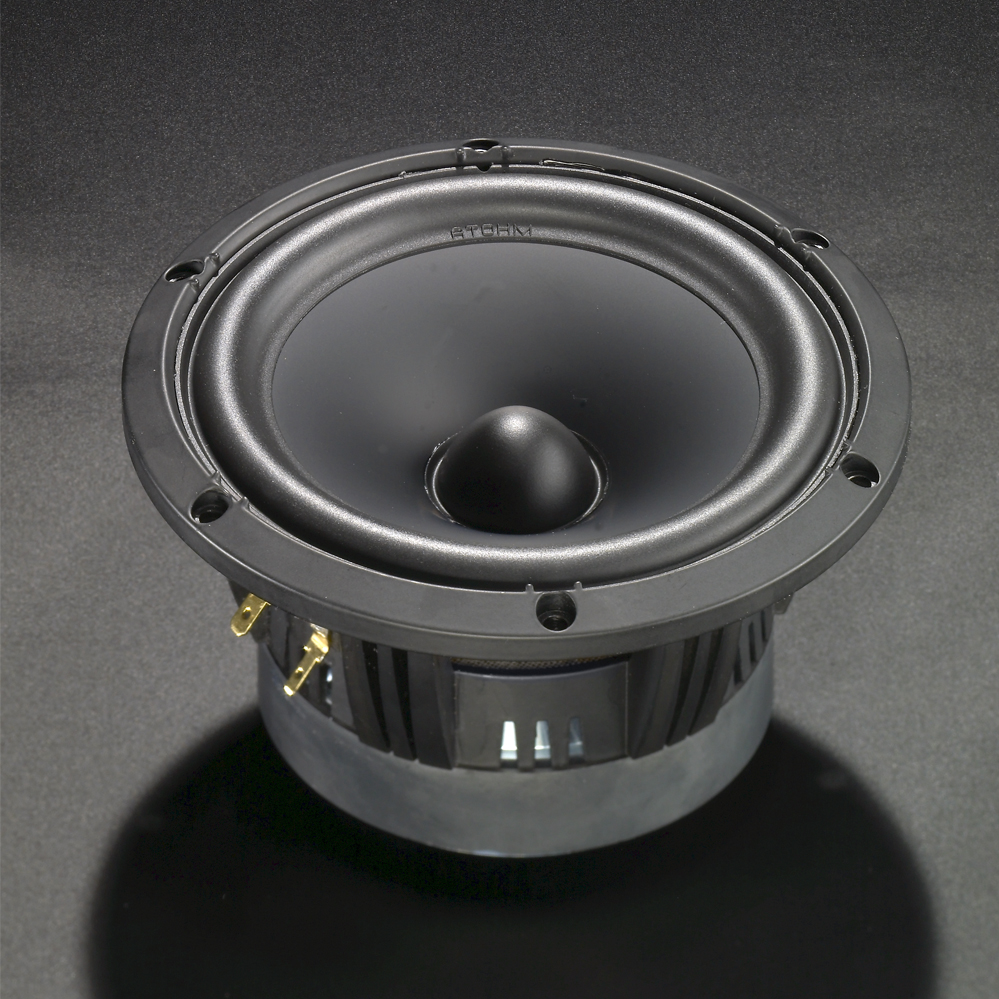

Mid Bass
| Nominal diameter | 6″ / 150 mm |

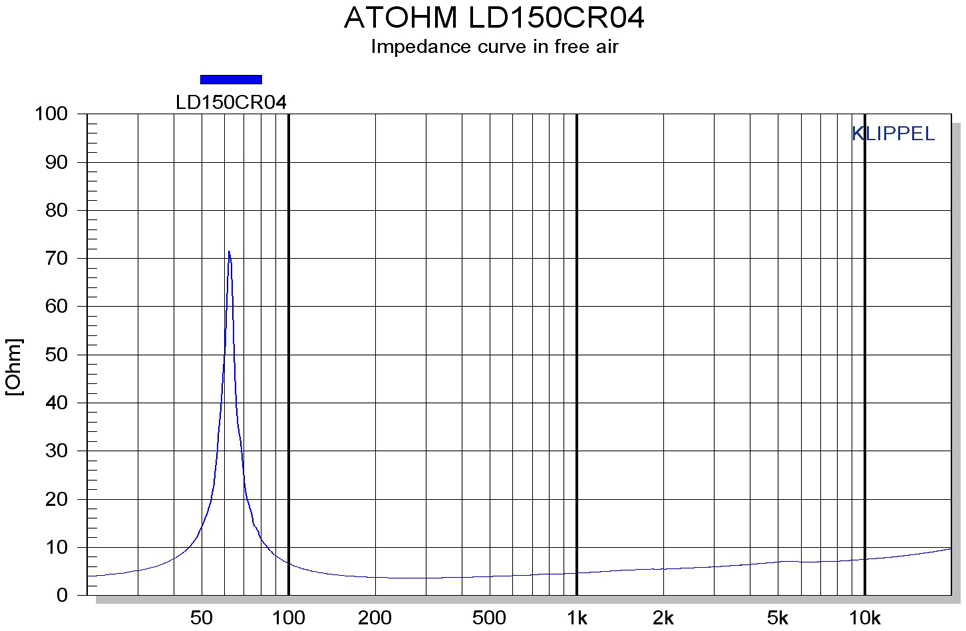

| Resonance | 59.4 Hz |
| Q factor | 0.53 |
| Sensitivity | 87.4 dB |
| Linear excursion | ± 6 mm |
| Program Power | 100 W |
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.4dB

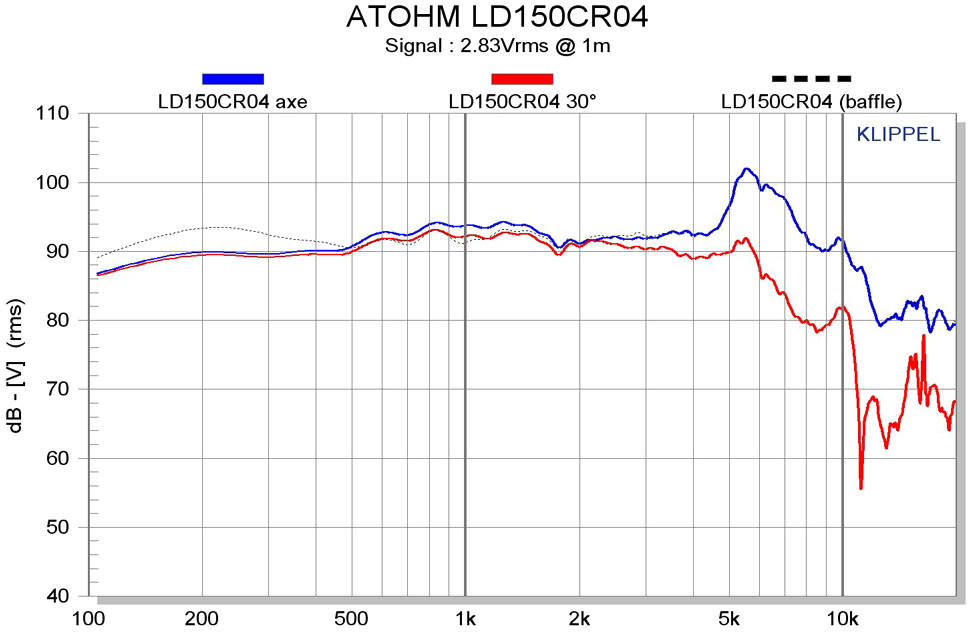

- Frequency response 59 - 3000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 59.4Hz
- Mechanical quality factor QMS 11.72
- Electrical quality factor QES 0.56
- Total quality factor QTS 0.53
Large signal parameters
- Maximum linear excursion xmax 6mm
- Maximum excursion before damage xlim 9mm
- Air volume displaced at xmax VD 63cm³
- Power handling P 50W
- Program power Pmax 100W
- Peak power Ppeak 200W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.2Ω
- Inductance (1kHz) LE 0.24mH
- VC Diameter 25mm
- Winding height HVC 15mm
Magnet
- Flux density B 1.06T
- Force factor Bl 4.9N/A
- Motor constant Bl/√RE 2.74N/√W
- Air gap height HAG 6mm
- Diameter 100mm
- Material Ferrite
Diaphragm
- Effective diameter 116mm
- Effective area SD 105cm²
- Moving mass MMS 11.2g
- Moving mass (without air load) MMD 10.4g
Suspensions
- Stiffness KMS 1.56N/mm
- Compliance CMS 640µm/N
- Equivalent volume to the compliance VAS 9.2L
- Mechanical resistance RMS 0.36N·s/m

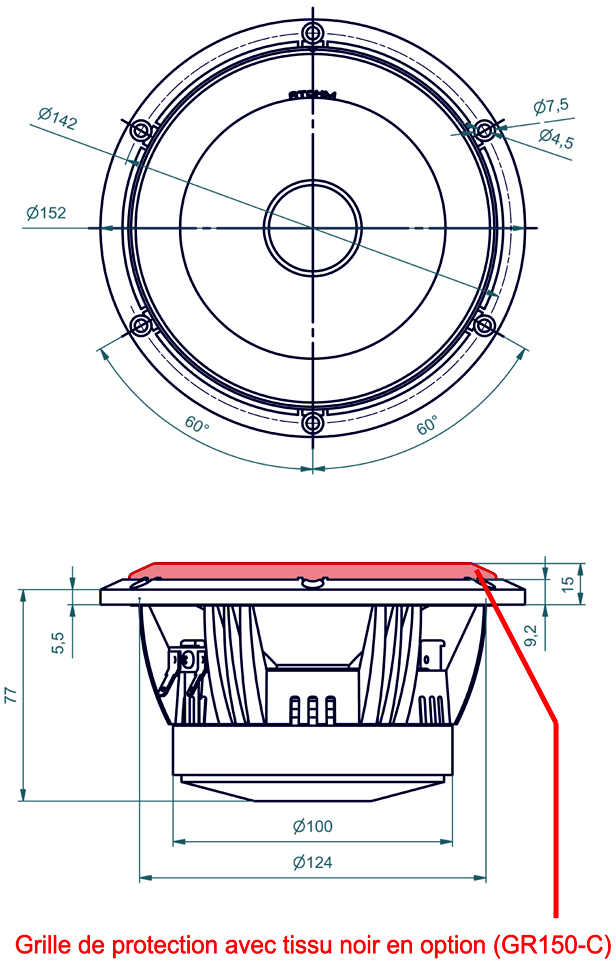

Dimensions
- Nominal diameter 6″
- 150mm
- Overall diameter 152mm
- Baffle cutout diameter 124mm
- Overall depth 77mm
- Flange thickness 6mm
- Mounting depth 71mm
- Volume occupied by the driver (estimated) 0.4L
