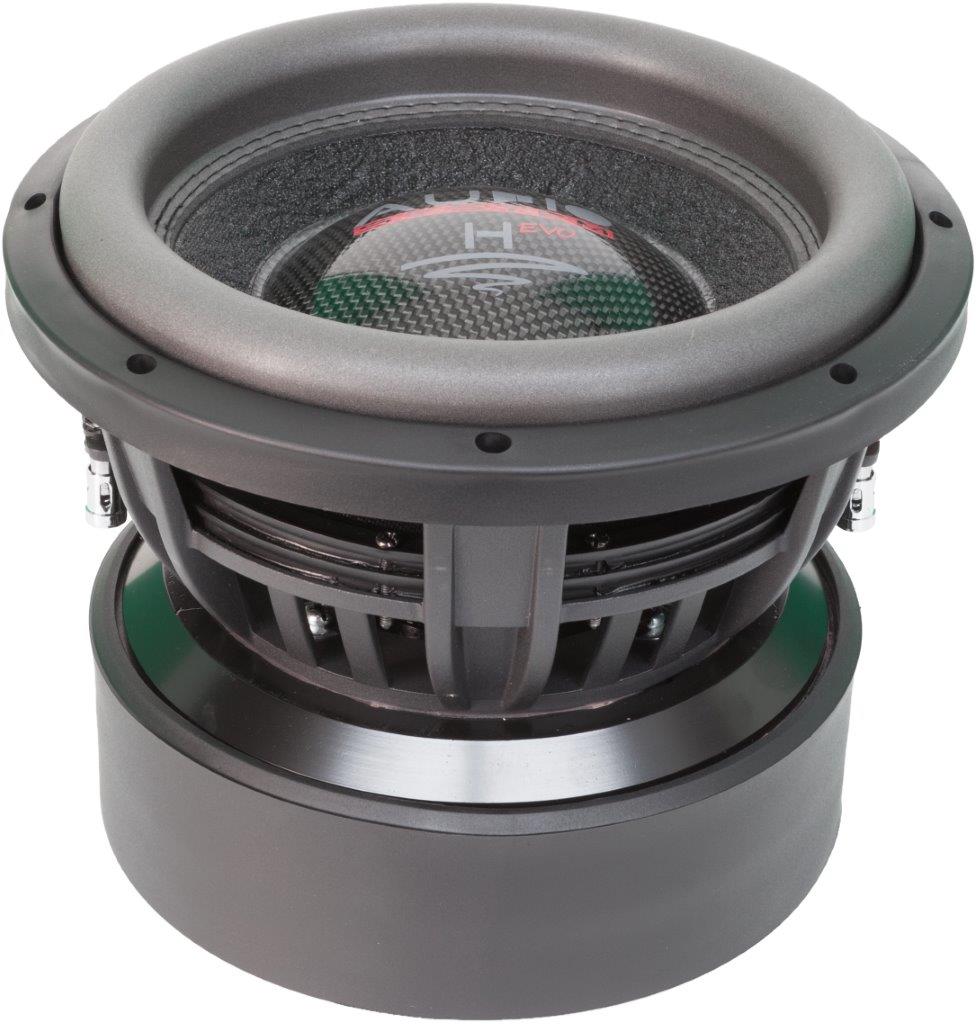

Audio System H 10 EVO
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 265 mm |
| Resonance | 38 Hz |
| Q factor | 0.37 |
| Sensitivity | 86 dB |
| Linear excursion | ± 11 mm |
| Program Power | 2400 W |
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86dB
- Frequency response 32 - 260Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 38Hz
- Mechanical quality factor QMS 3.93
- Electrical quality factor QES 0.41
- Total quality factor QTS 0.37
Large signal parameters
- Maximum linear excursion (one way) xmax 11mm
- Air volume displaced at xmax VD 403cm³
- Power handling P 2000W
- Program power Pmax 2400W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.8Ω
- Inductance (1kHz, in series, estimated) LE 2.9mH
- VC Diameter 76.2mm
- Former material Aluminum
Magnet
- Force factor (in series) Bl 22.9N/A
- Motor constant Bl/√RE 11.7N/√W
- Diameter 226mm
Diaphragm
- Effective diameter 216mm
- Effective area SD 366cm²
- Moving mass MMS 203g
- Moving mass (without air load) MMD 198g
- Material Paper
Suspensions
- Stiffness KMS 13.3N/mm
- Compliance CMS 75µm/N
- Equivalent volume to the compliance VAS 13.8L
- Mechanical resistance RMS 12.4N·s/m
- Surround material Flexyfoam
- Spider material Connex
Dimensions
- Nominal diameter 10″
- 265mm
- Overall diameter 265mm
- Baffle cutout diameter 239mm
- Overall depth 197mm
- Flange thickness 12mm
- Mounting depth 185mm
- Volume occupied by the driver (estimated) 6.2L
- Net weight 19.4kg
- Frame material Aluminium
