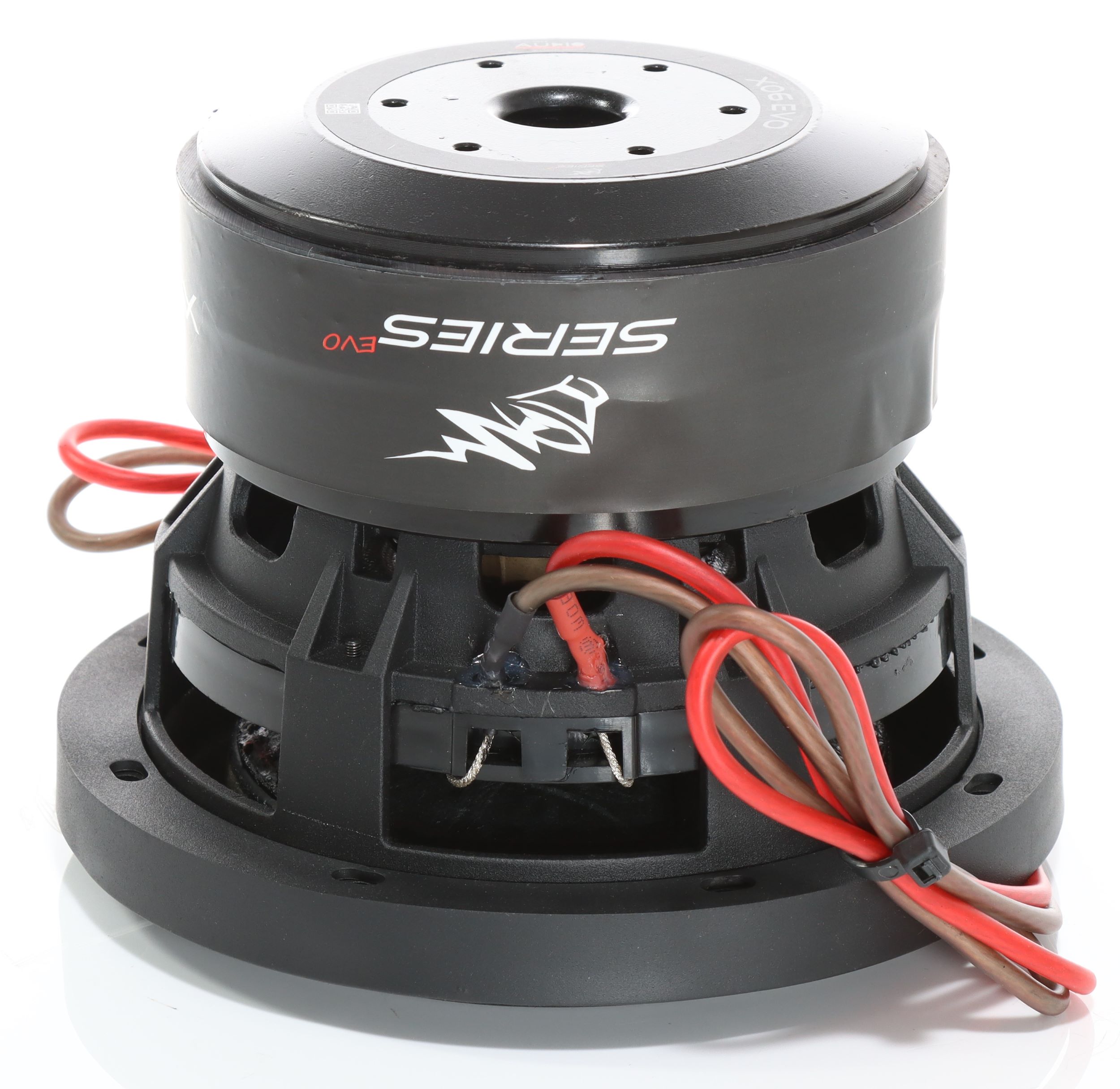

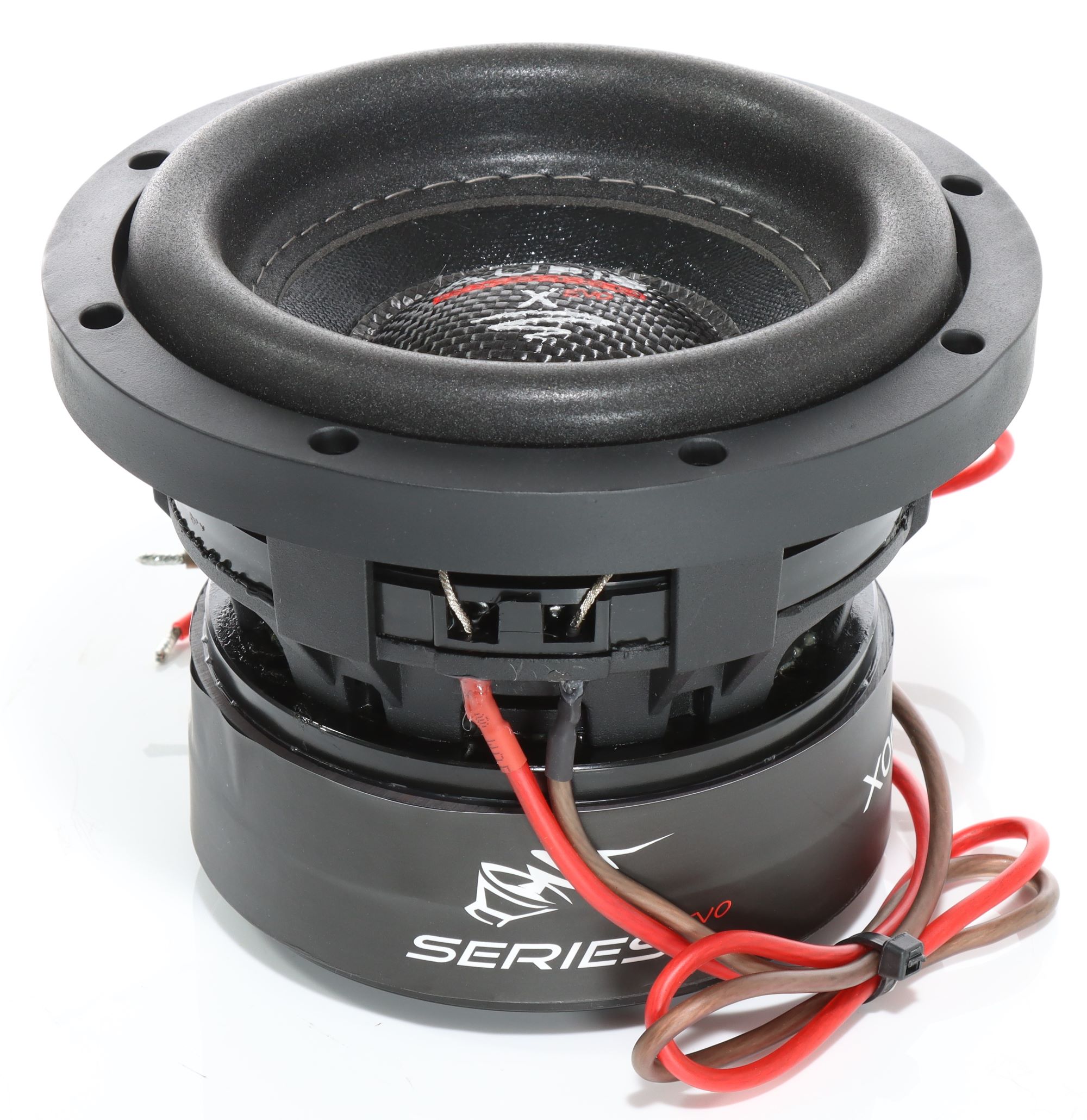

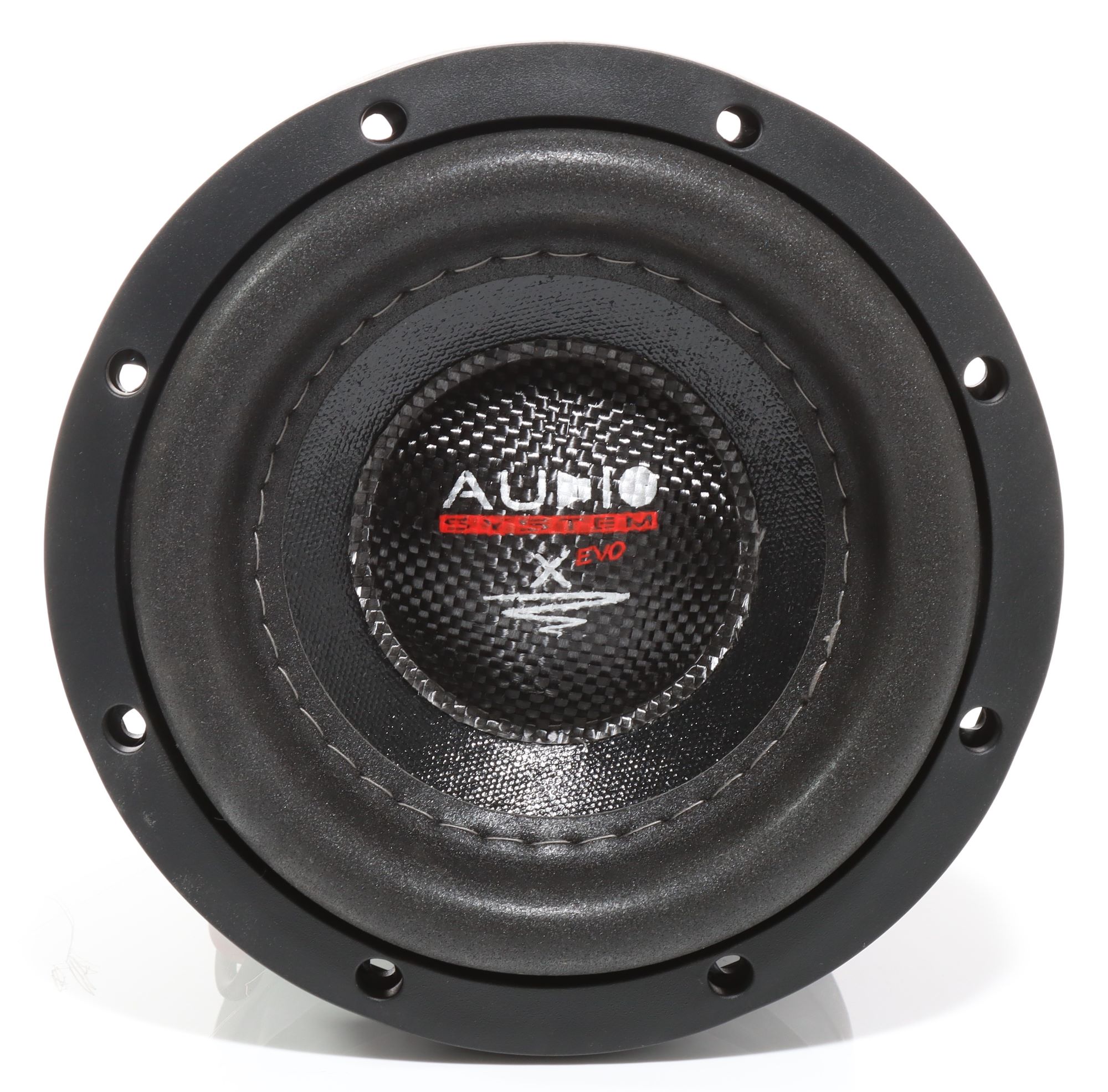

Audio System X 06 EVO
2x2Ω
Subwoofer
| Nominal diameter | 6.5″ / 182 mm |
| Resonance | 56 Hz |
| Q factor | 0.35 |
| Sensitivity | 86.3 dB |
| Linear excursion | ± 9 mm |
| Program Power | 500 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.3dB
- Frequency response 45 - 150Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 56Hz
- Mechanical quality factor QMS 4.40
- Electrical quality factor QES 0.38
- Total quality factor QTS 0.35
Large signal parameters
- Maximum linear excursion (one way) xmax 9mm
- Air volume displaced at xmax VD 135cm³
- Power handling P 300W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.8Ω
- Inductance (1kHz, in series, estimated) LE 1.15mH
- VC Diameter 51mm
- Former material Aluminum
Magnet
- Force factor (in series) Bl 14.6N/A
- Motor constant Bl/√RE 7.49N/√W
- Diameter 134mm
Diaphragm
- Effective diameter 138mm
- Effective area SD 150cm²
- Moving mass MMS 51g
- Moving mass (without air load) MMD 49.6g
- Material KPC Paper
Suspensions
- Stiffness KMS 7.52N/mm
- Compliance CMS 133µm/N
- Equivalent volume to the compliance VAS 3.9L
- Mechanical resistance RMS 4.08N·s/m
- Surround material Elasthan
- Spider material PPTA Connex
Dimensions
- Nominal diameter 6.5″
- 182mm
- Overall diameter 182mm
- Baffle cutout diameter 151mm
- Overall depth 128mm
- Flange thickness 14mm
- Mounting depth 114mm
- Volume occupied by the driver (estimated) 1.5L
- Net weight 4.8kg
- Frame material Aluminium Dicast
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
