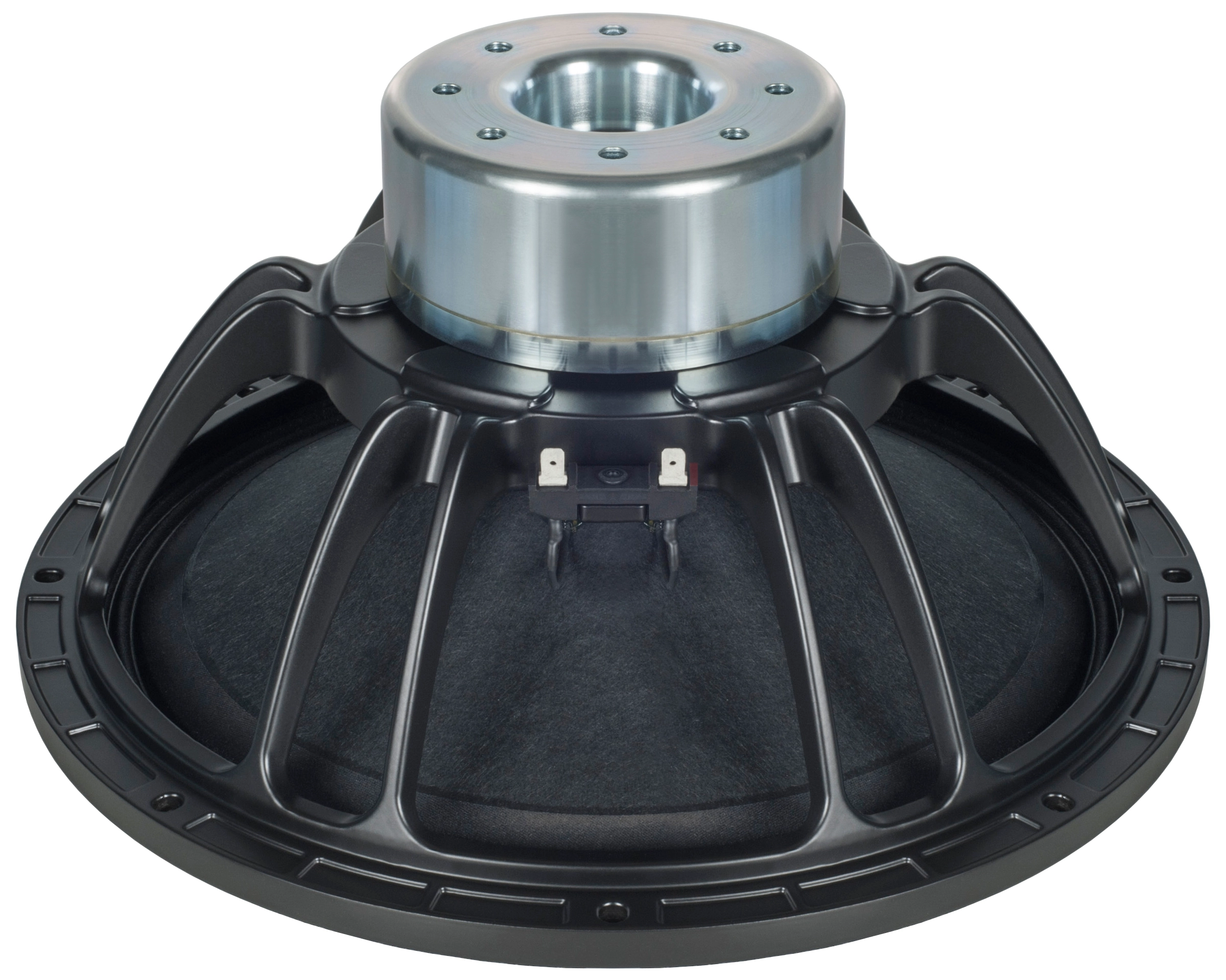

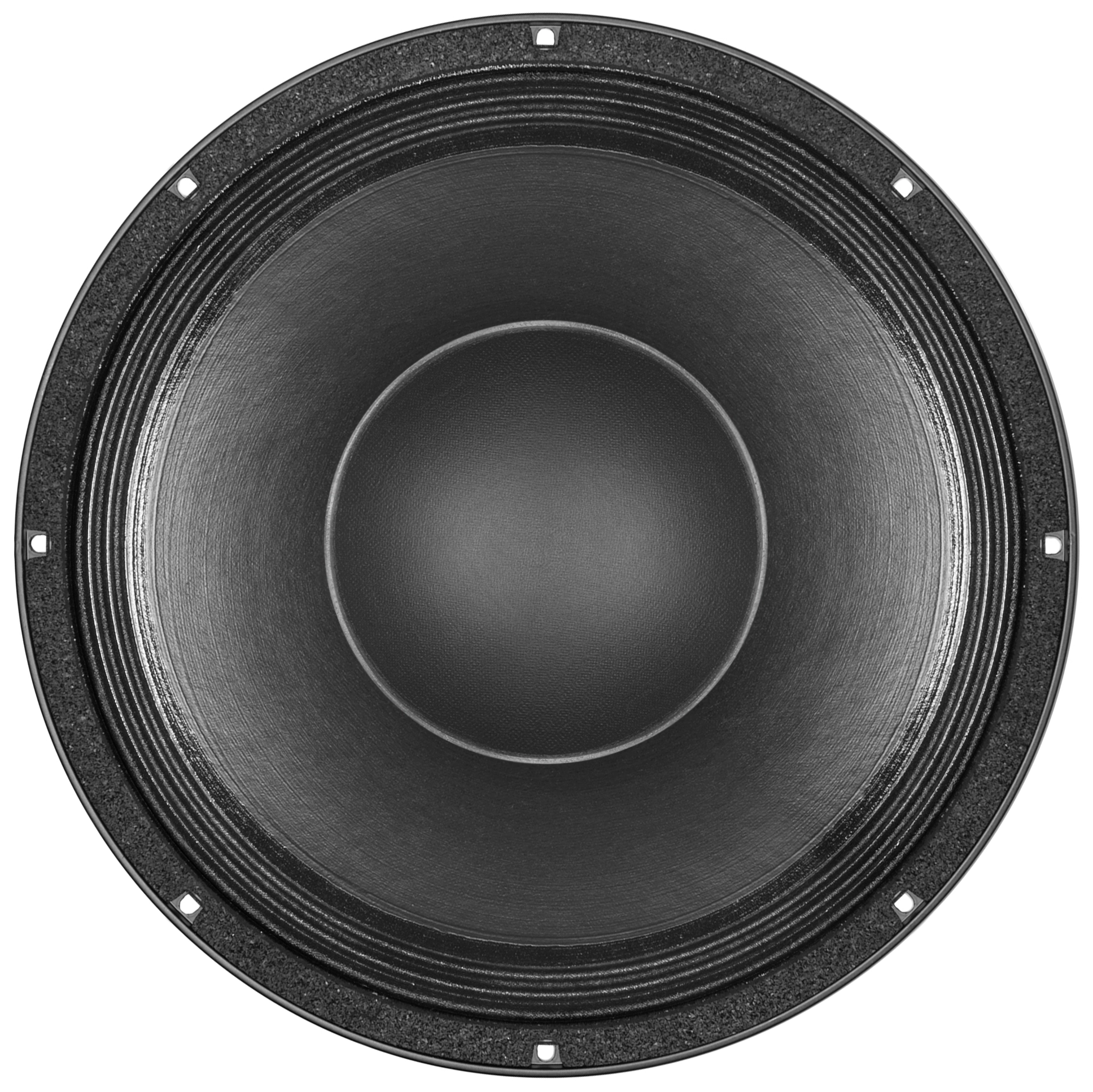

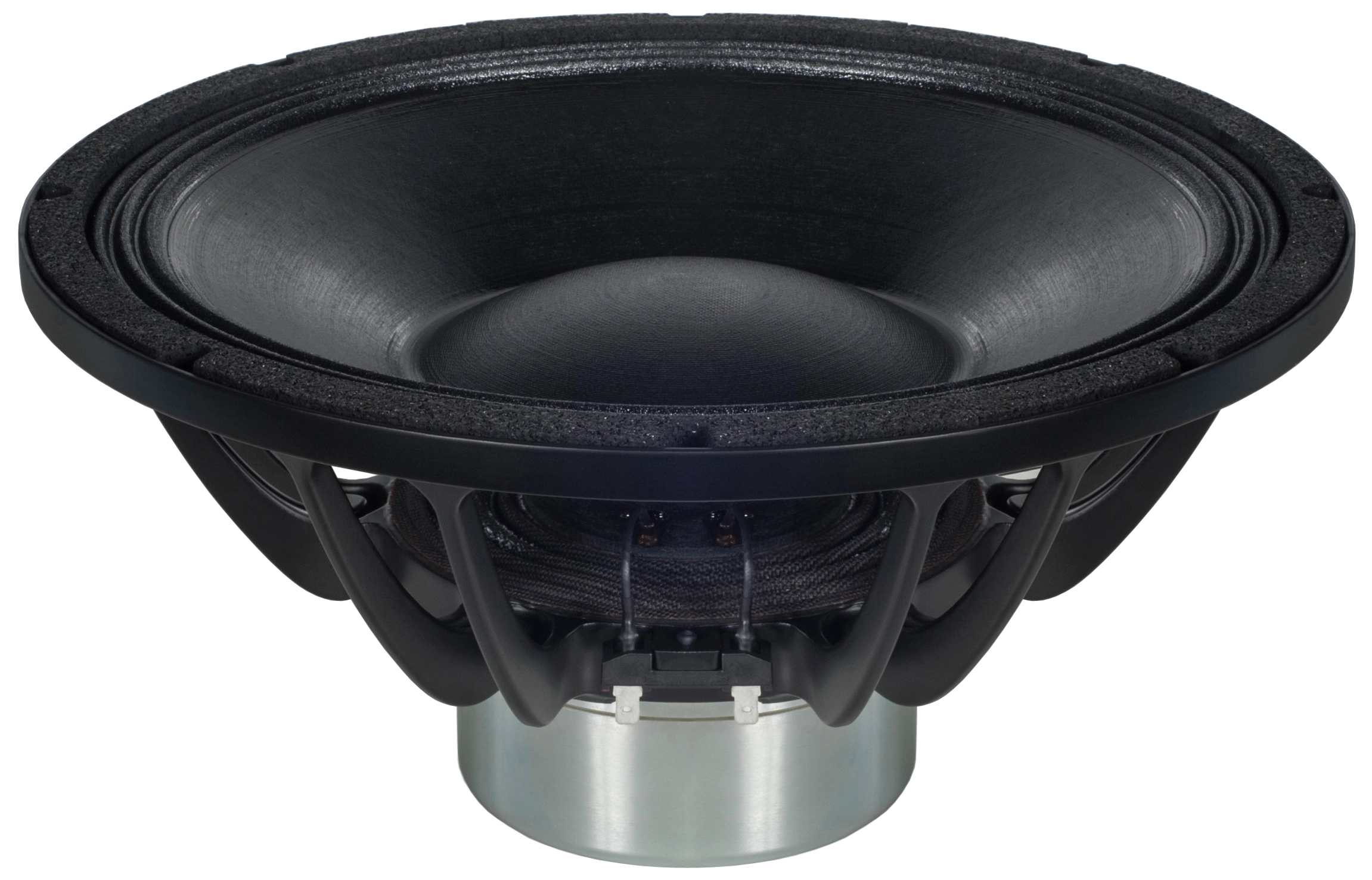

B&C Speaker 14DS88
8Ω
Woofer
| Nominal diameter | 13.5″ / 359 mm |
| Resonance | 44 Hz |
| Q factor | 0.18 |
| Sensitivity | 95.2 dB |
| Linear excursion | ± 11 mm |
| Program Power | 1400 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.2dB

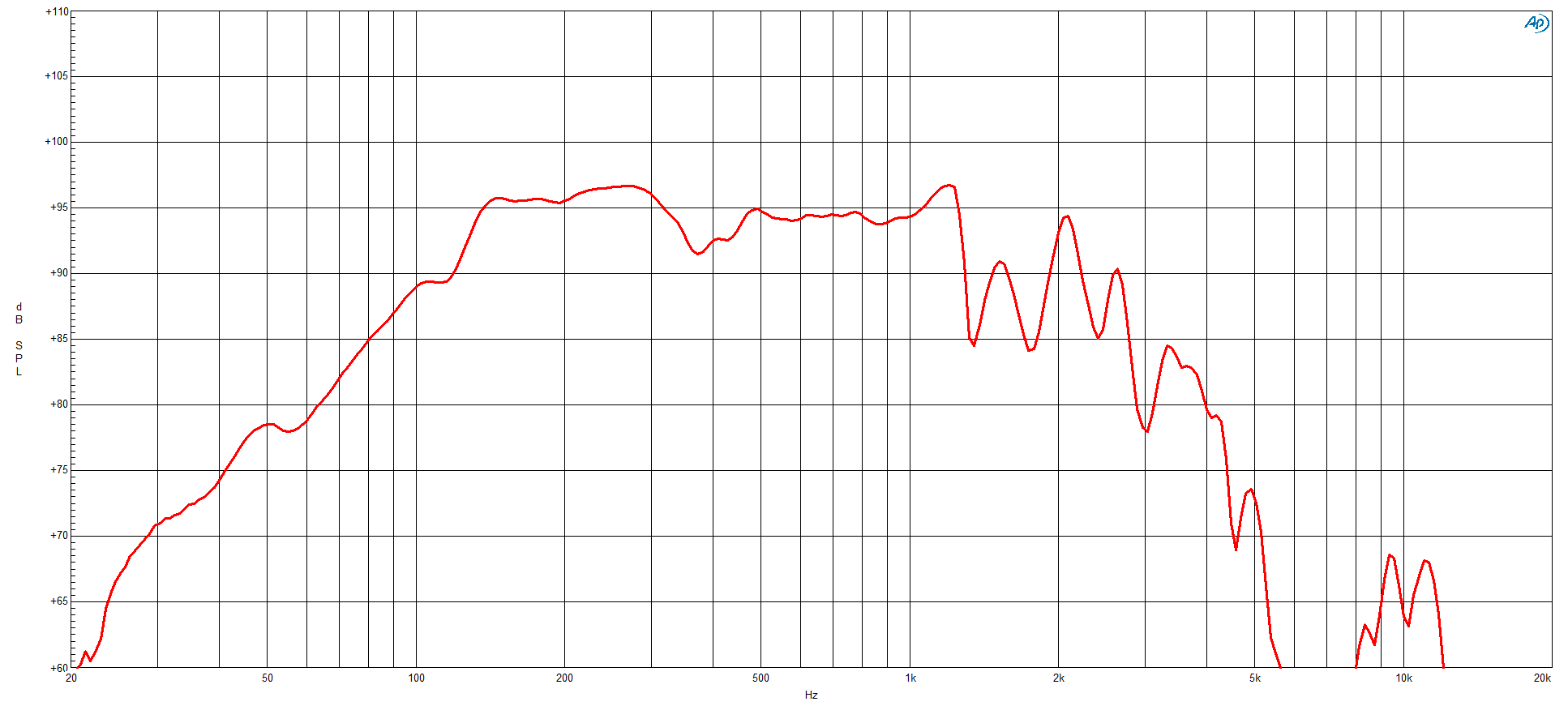

- Frequency response 45 - 1200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 44Hz
- Mechanical quality factor QMS 8.00
- Electrical quality factor QES 0.19
- Total quality factor QTS 0.18
Large signal parameters
- Maximum linear excursion (one way) xmax 11mm
- Air volume displaced at xmax VD 778cm³
- Power handling P 700W
- Program power Pmax 1400W
Voice Coil

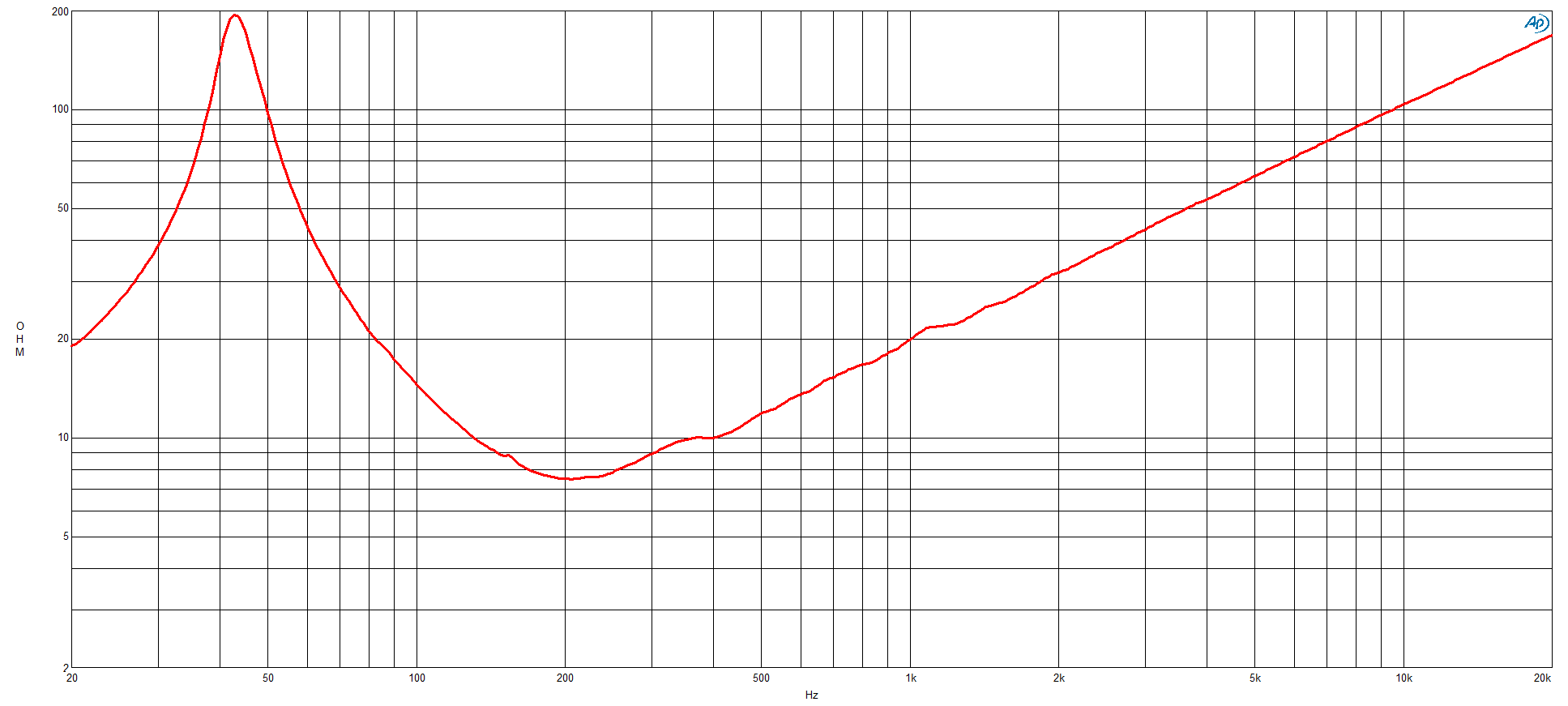

- Nominal impedance Z 8Ω
- DC resistance RE 5.6Ω
- Inductance (1kHz) LE 2.05mH
- VC Diameter 88mm
- Winding height HVC 27.5mm
- Winding material Aluminium
- Former material Glass Fibre
Magnet
- Flux density B 1.05T
- Force factor Bl 36.9N/A
- Motor constant Bl/√RE 15.6N/√W
- Air gap height HAG 11mm
- Material Neodymium Inside Slug
Diaphragm
- Effective diameter 300mm
- Effective area SD 707cm²
- Moving mass MMS 170g
- Moving mass (without air load) MMD 157g
- Material Waterproof Front Side
Suspensions
- Stiffness KMS 12.8N/mm
- Compliance CMS 78µm/N
- Equivalent volume to the compliance VAS 55L
- Mechanical resistance RMS 5.87N·s/m
- Spider material Silicone

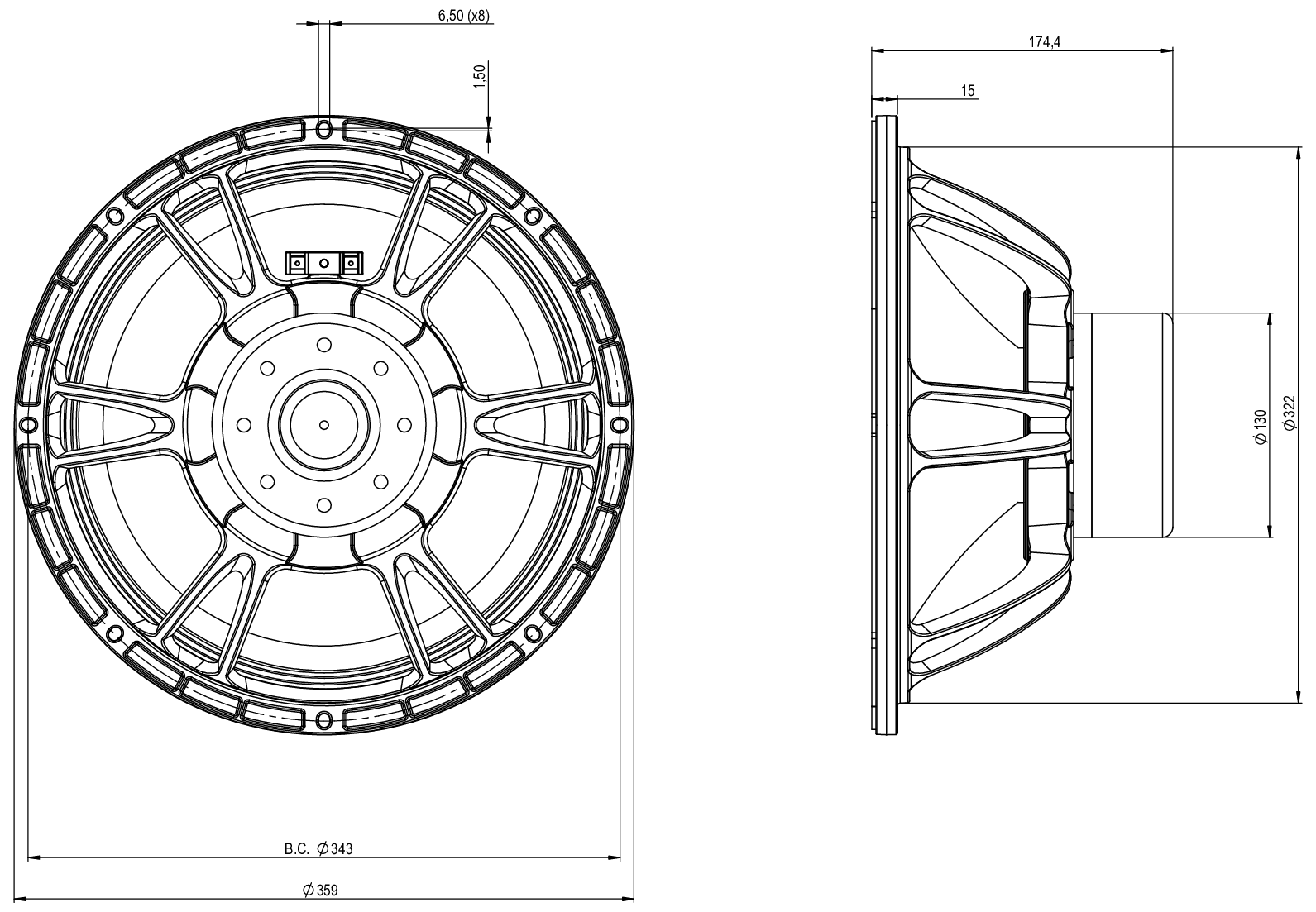

Dimensions
- Nominal diameter 13.5″
- 359mm
- Overall diameter 360mm
- Baffle cutout diameter 325mm
- Overall depth 174mm
- Flange thickness 15mm
- Mounting depth 159mm
- Volume occupied by the driver 3.5L
- Net weight 5.9kg
