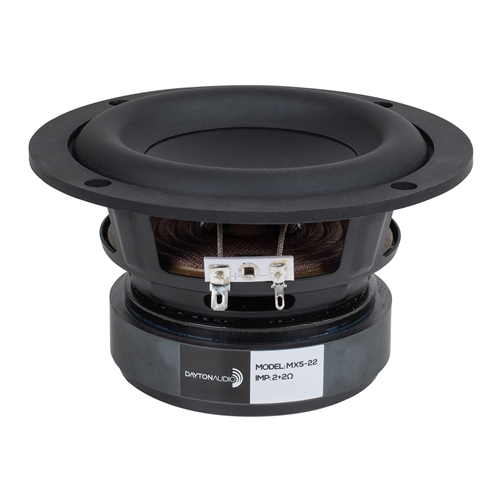

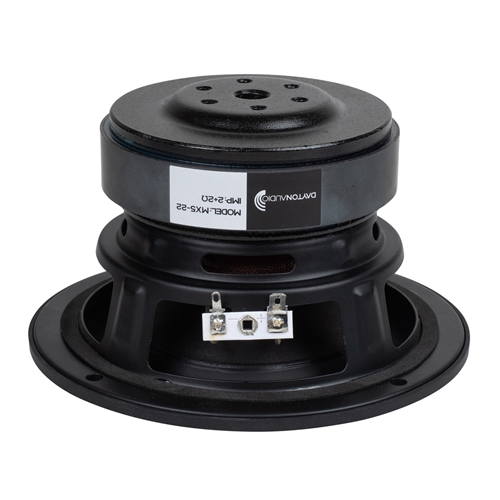

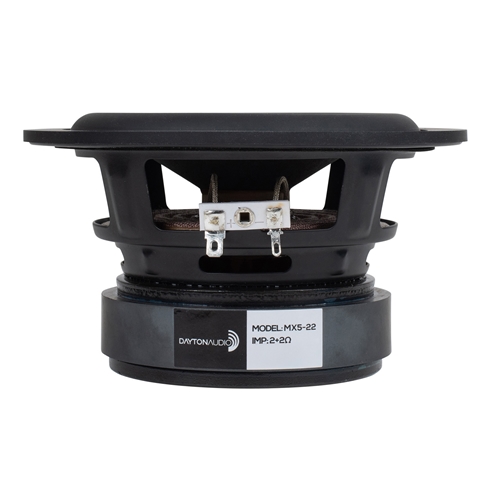

Dayton Audio Max-X MX5-22
2x2Ω
Subwoofer
| Nominal diameter | 5.25″ / 154 mm |
| Resonance | 45 Hz |
| Q factor | 0.43 |
| Sensitivity | 81.4 dB |
| Linear excursion | ± 9.3 mm |
| Program Power | 100 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 81.4dB
- Frequency response 30 - 1000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 45Hz
- Mechanical quality factor QMS 3.02
- Electrical quality factor QES 0.50
- Total quality factor QTS 0.43
Large signal parameters
- Maximum linear excursion xmax 9.3mm
- Air volume displaced at xmax VD 79cm³
- Power handling P 50W
- Program power Pmax 100W

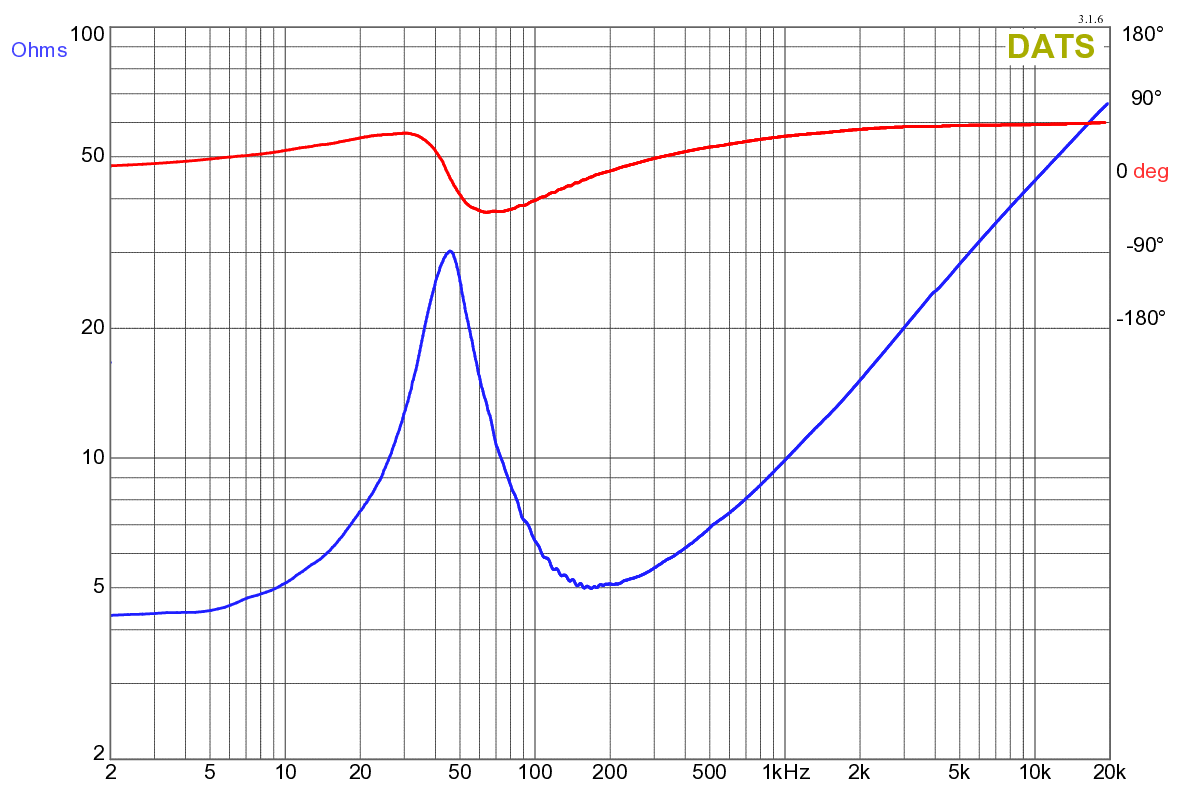

Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.3Ω
- Inductance (1kHz, in series) LE 1.1mH
- VC Diameter 32mm
- Winding material CCA
- Former material Aluminum
Magnet
- Force factor (in series) Bl 8N/A
- Motor constant Bl/√RE 3.86N/√W
- Material Ferrite
Diaphragm
- Effective diameter 104mm
- Effective area SD 84.4cm²
- Moving mass MMS 26g
- Moving mass (without air load) MMD 25.4g
- Material Paper
Suspensions
- Stiffness KMS 2.08N/mm
- Compliance CMS 480µm/N
- Equivalent volume to the compliance VAS 4.9L
- Mechanical resistance RMS 2.43N·s/m
- Surround material Rubber

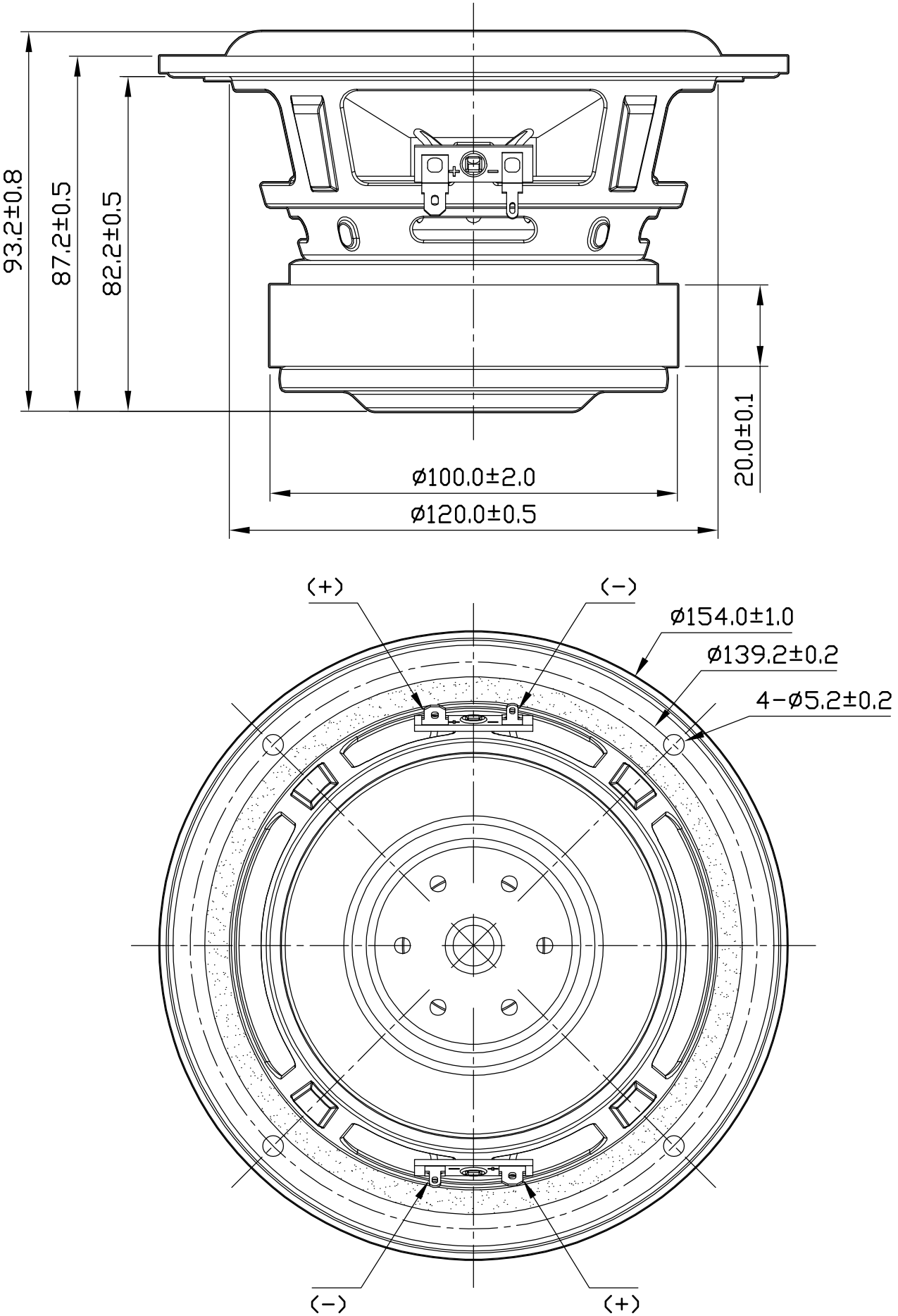

Dimensions
- Nominal diameter 5.25″
- 154mm
- Overall diameter 154mm
- Baffle cutout diameter 120mm
- Overall depth 87mm
- Volume occupied by the driver (estimated) 0.48L
- Frame material Steel
.png)
.png)
.webp)
