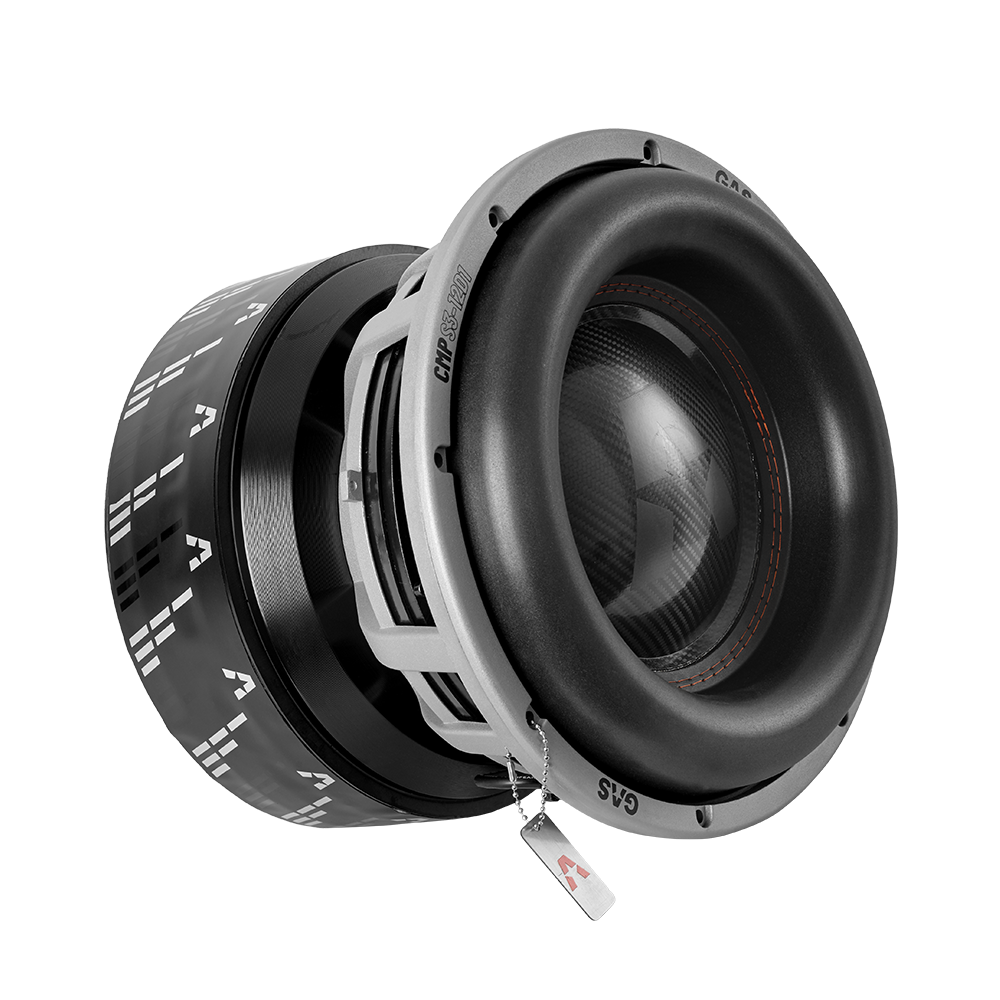

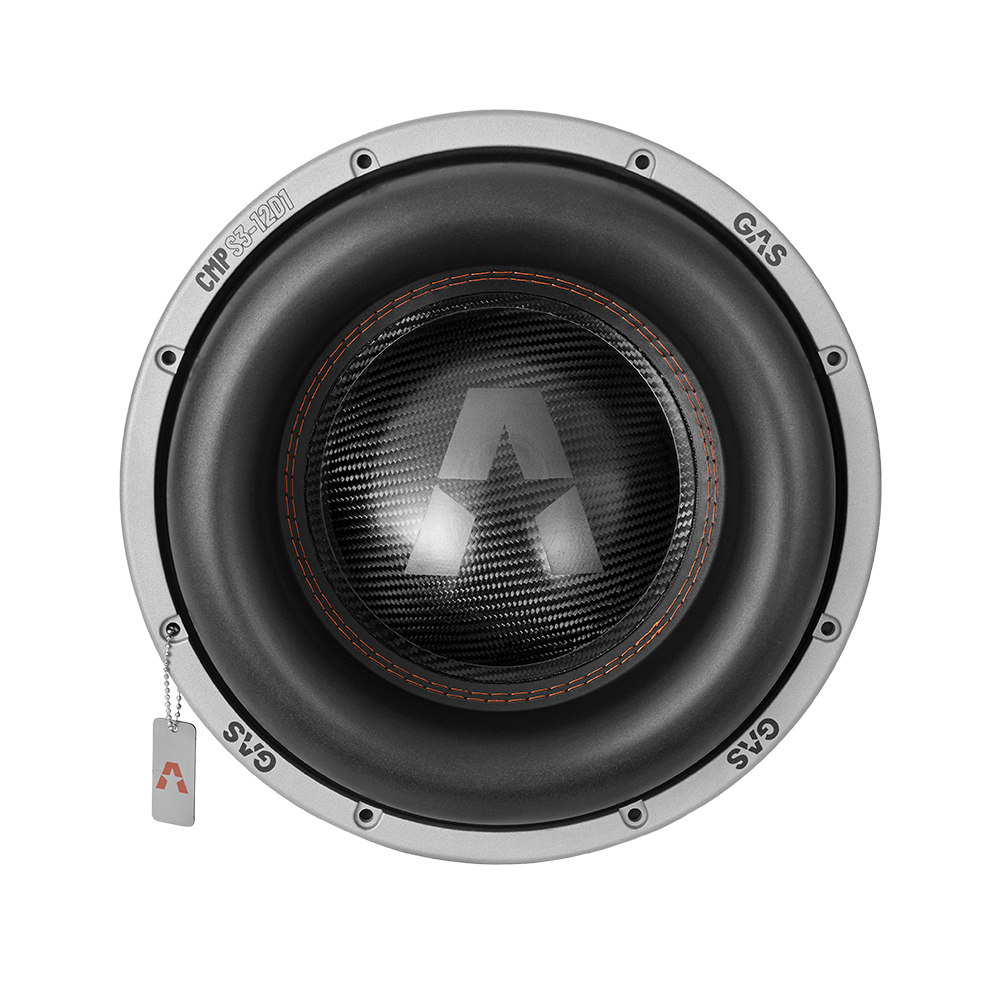

GAS Audio Power CMP S3-12D1
2x0.5Ω
2x1Ω
Subwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 42.4 Hz |
| Q factor | 0.37 |
| Sensitivity | 84.6 dB |
| Linear excursion | ± 40 mm |
| Program Power | 10000 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.6dB
- Frequency response 20 - 100Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 42.4Hz
- Mechanical quality factor QMS 4.09
- Electrical quality factor QES 0.41
- Total quality factor QTS 0.37
Large signal parameters
- Maximum linear excursion (one way) xmax 40mm
- Air volume displaced at xmax VD 1808cm³
- Power handling P 5000W
- Program power Pmax 10000W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 1.8Ω
- Inductance (1kHz, in series) LE 1.22mH
- VC Diameter 101.6mm
- Winding height HVC 80mm
- Winding material Copper Clad Aluminum
Magnet
- Force factor (in series) Bl 22N/A
- Motor constant Bl/√RE 16.4N/√W
- Diameter 280mm
- Weight 18.88kg
- Material Neo/Ferrite Hybrid
Diaphragm
- Effective diameter 240mm
- Effective area SD 452cm²
- Moving mass MMS 412g
- Moving mass (without air load) MMD 405g
- Material Reinforced Mica pulp cone
Suspensions
- Stiffness KMS 29.4N/mm
- Compliance CMS 34µm/N
- Equivalent volume to the compliance VAS 9.8L
- Mechanical resistance RMS 26.9N·s/m
- Surround material Mega roll foam
- Spider material Nomex
Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 321mm
- Baffle cutout diameter 285mm
- Overall depth 285mm
- Flange thickness 17mm
- Mounting depth 241mm
- Volume occupied by the driver 9.3L
- Net weight 44.6kg
- Frame material Aluminium
