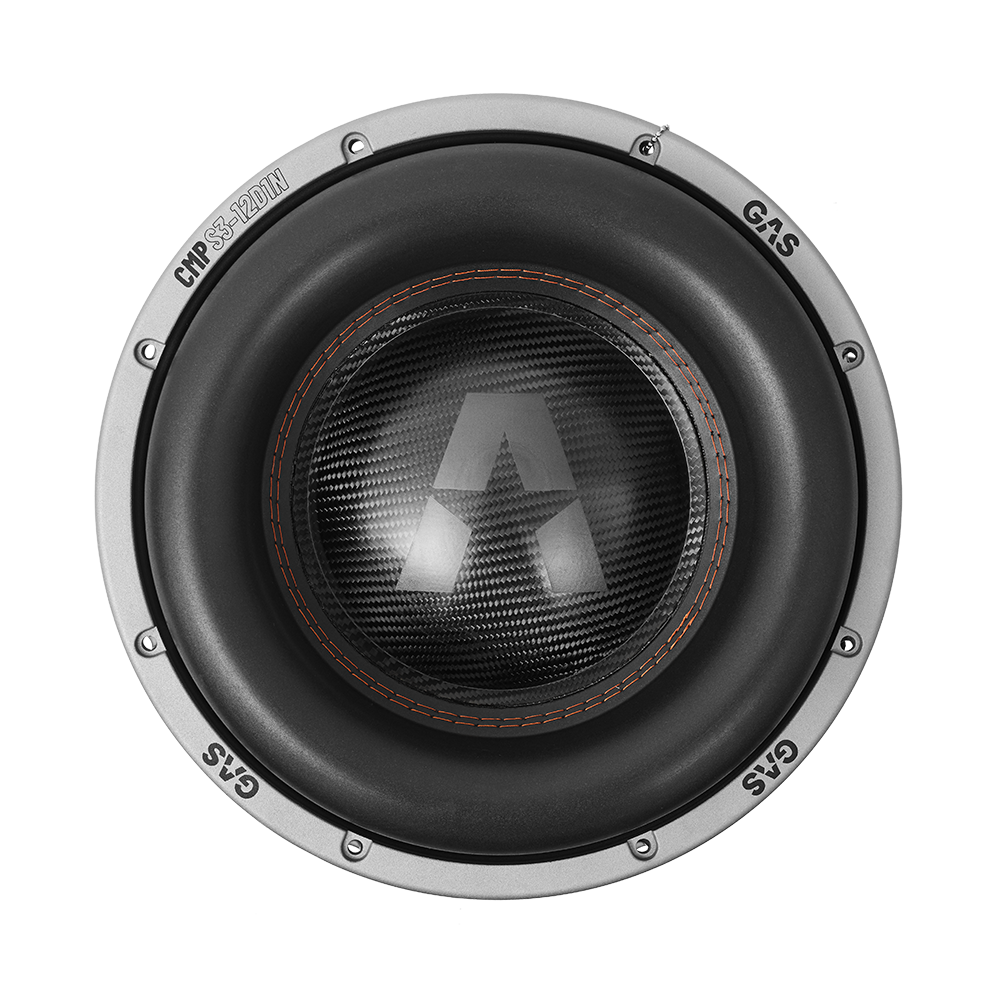

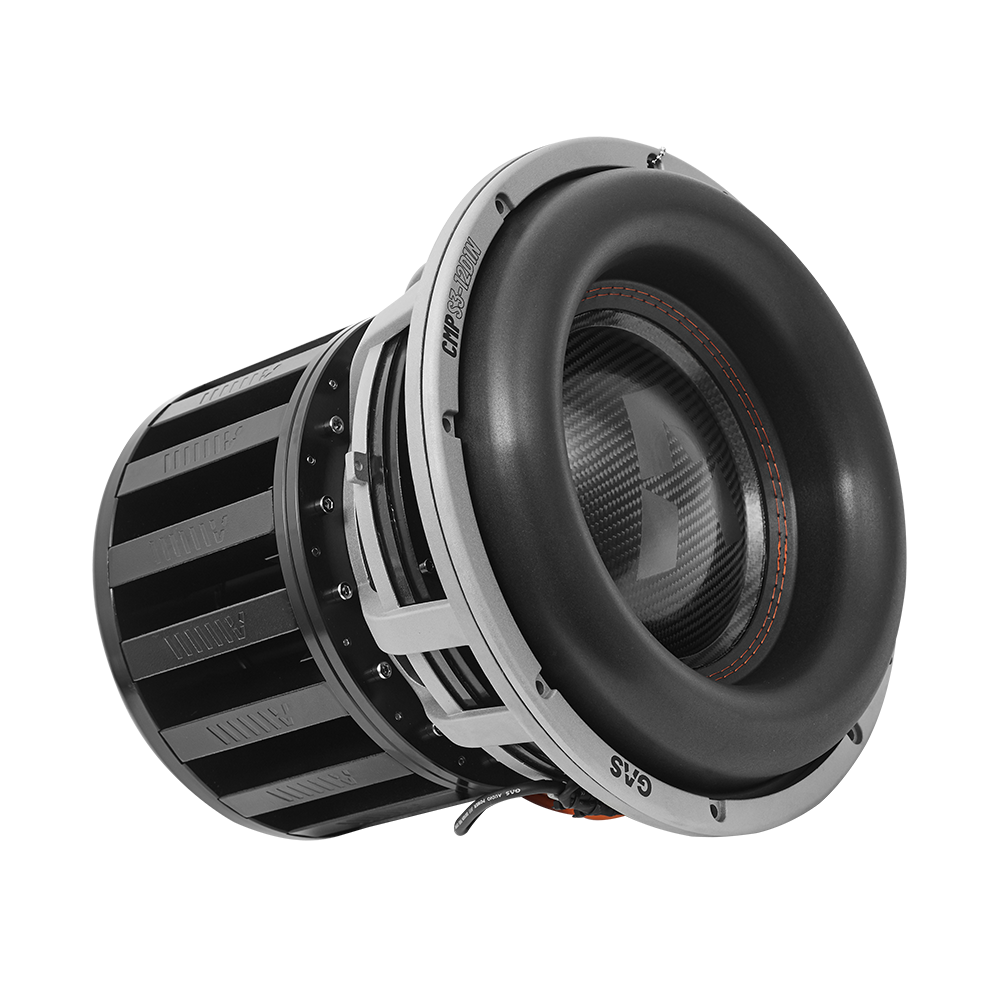

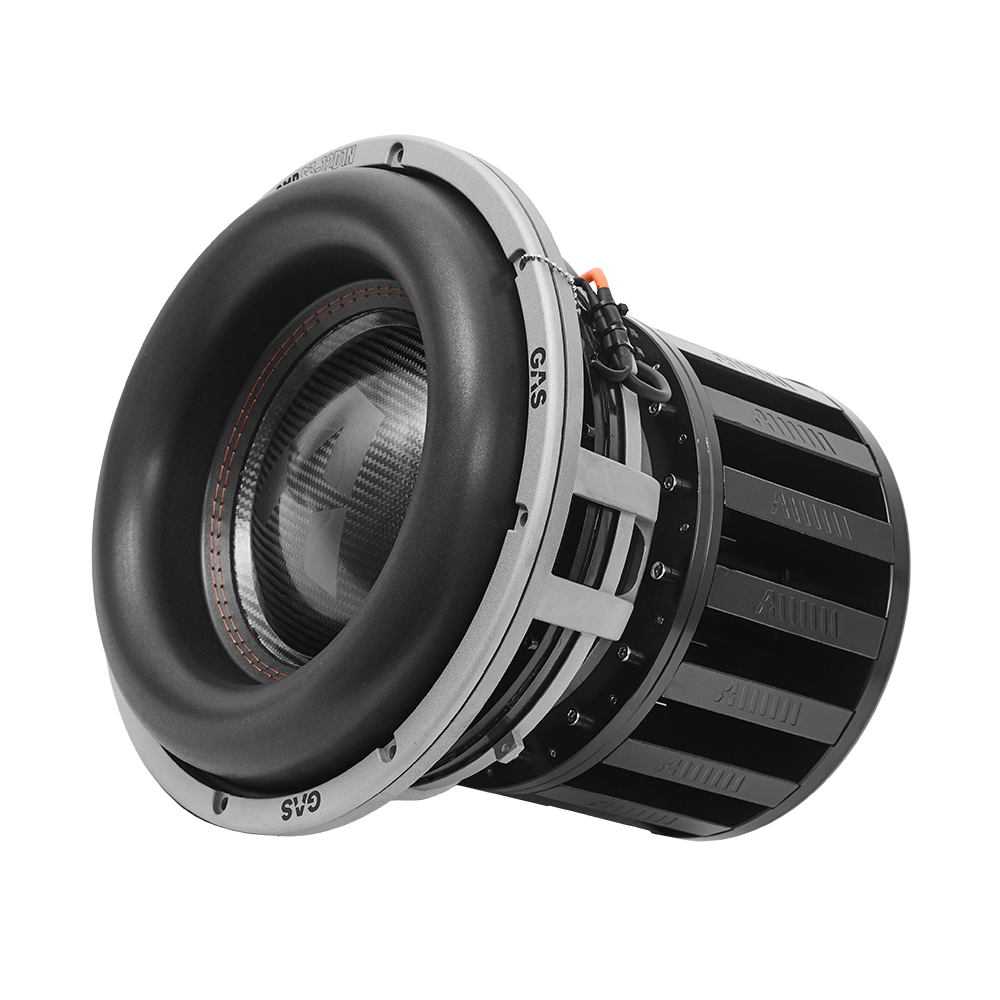

GAS Audio Power CMP S3-12D1N
2x0.5Ω
2x1Ω
Subwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 40.1 Hz |
| Q factor | 0.35 |
| Sensitivity | 84.6 dB |
| Linear excursion | ± 40 mm |
| Program Power | 16000 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.6dB
- Frequency response 20 - 100Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 40.1Hz
- Mechanical quality factor QMS 3.55
- Electrical quality factor QES 0.39
- Total quality factor QTS 0.35
Large signal parameters
- Maximum linear excursion (one way) xmax 40mm
- Air volume displaced at xmax VD 1808cm³
- Power handling P 8000W
- Program power Pmax 16000W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 1.8Ω
- Inductance (1kHz, in series) LE 1.16mH
- VC Diameter 101.6mm
- Winding height HVC 80mm
- Winding material Copper Clad Aluminum
- Former material Aluminum
Magnet
- Force factor (in series) Bl 21.7N/A
- Motor constant Bl/√RE 16.2N/√W
- Diameter 236mm
- Material Neodymium
Diaphragm
- Effective diameter 240mm
- Effective area SD 452cm²
- Moving mass MMS 404g
- Moving mass (without air load) MMD 396g
- Material Paper / Pulp
Suspensions
- Stiffness KMS 25.6N/mm
- Compliance CMS 39µm/N
- Equivalent volume to the compliance VAS 11.2L
- Mechanical resistance RMS 28.6N·s/m
- Surround material Foam
- Spider material Nomex
Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 321mm
- Baffle cutout diameter 285mm
- Overall depth 279mm
- Flange thickness 17mm
- Mounting depth 262mm
- Volume occupied by the driver 7.4L
- Net weight 30.3kg
- Frame material Aluminium
