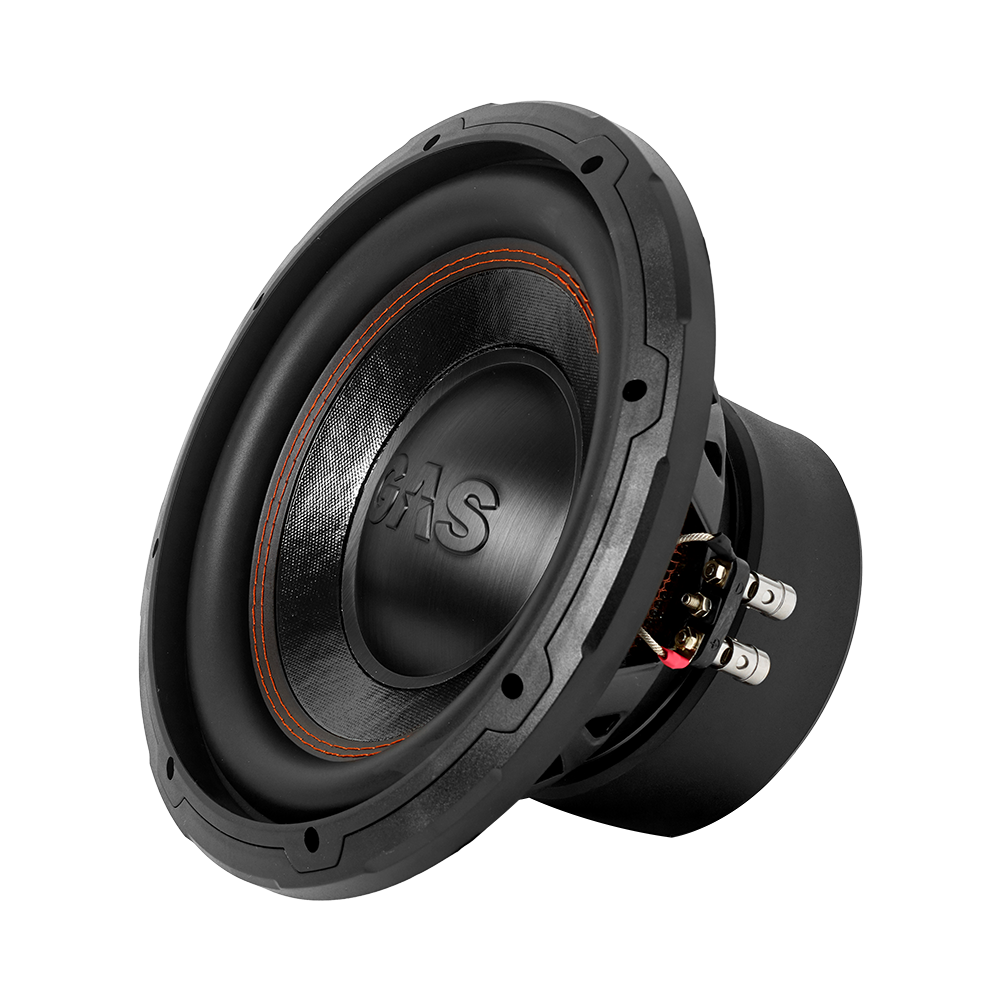

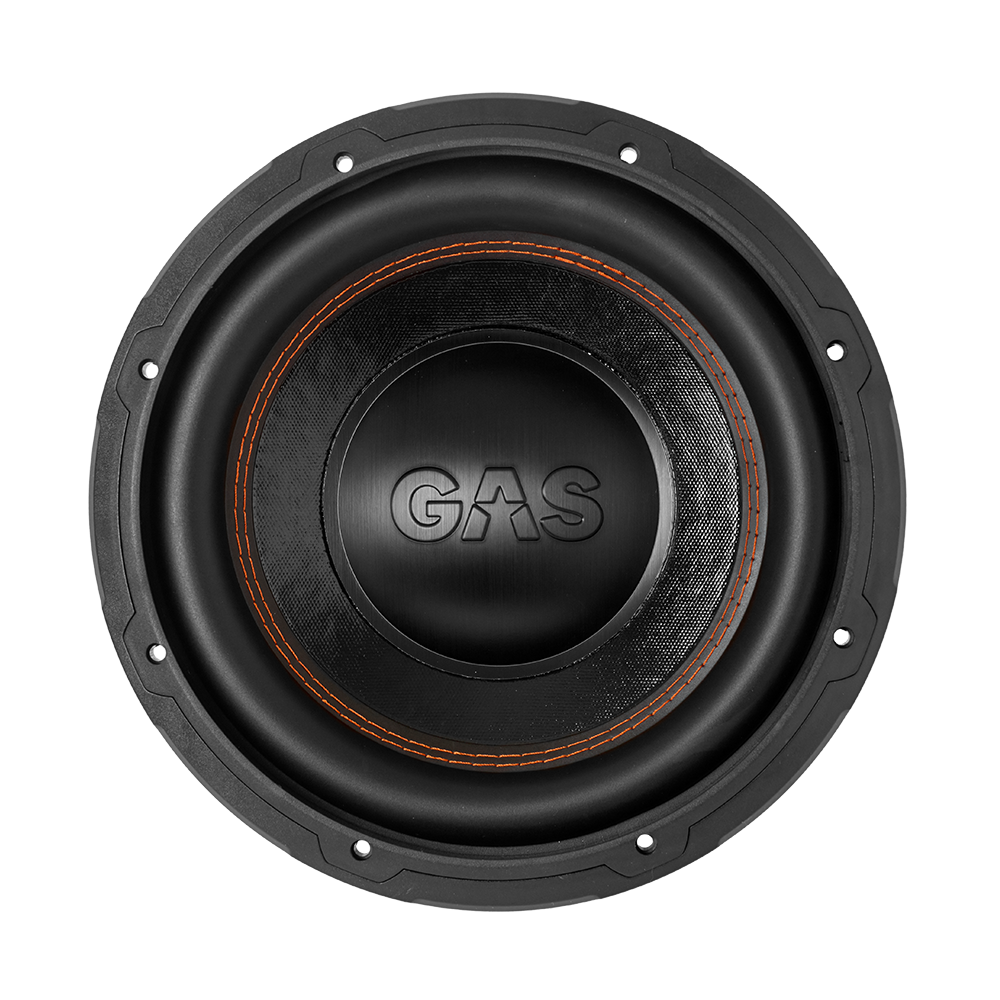

GAS Audio Power MAD S3-10D2
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 29 Hz |
| Q factor | 0.31 |
| Sensitivity | 86.2 dB |
| Linear excursion | ± 13.5 mm |
| Program power | 1000 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.2dB
- Frequency response 22 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 29Hz
- Mechanical quality factor QMS 3.75
- Electrical quality factor QES 0.33
- Total quality factor QTS 0.31
Large signal parameters
- Maximum linear excursion (one way) xmax 13.5mm
- Air volume displaced at xmax VD 446cm³
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series) LE 2.7mH
- VC Diameter 50.8mm
- Winding material 4-layer copper wire
- Former material Polyimide
Magnet
- Force factor (in series) Bl 15.5N/A
- Motor constant Bl/√RE 8.17N/√W
- Weight 2.95kg
- Material Ferrite
Diaphragm
- Effective diameter 205mm
- Effective area SD 330cm²
- Moving mass (including air load) MMS 122g
- Moving mass MMD 118g
- Material Paper
Suspensions
- Stiffness KMS 4.02N/mm
- Compliance CMS 249µm/N
- Equivalent volume to the compliance VAS 38.3L
- Mechanical resistance RMS 5.93N·s/m
- Surround material Rubber
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 271mm
- Baffle cutout diameter 245mm
- Overall depth 135mm
- Volume occupied by the driver 1.85L
- Net weight 4.8kg
- Frame material Steel
