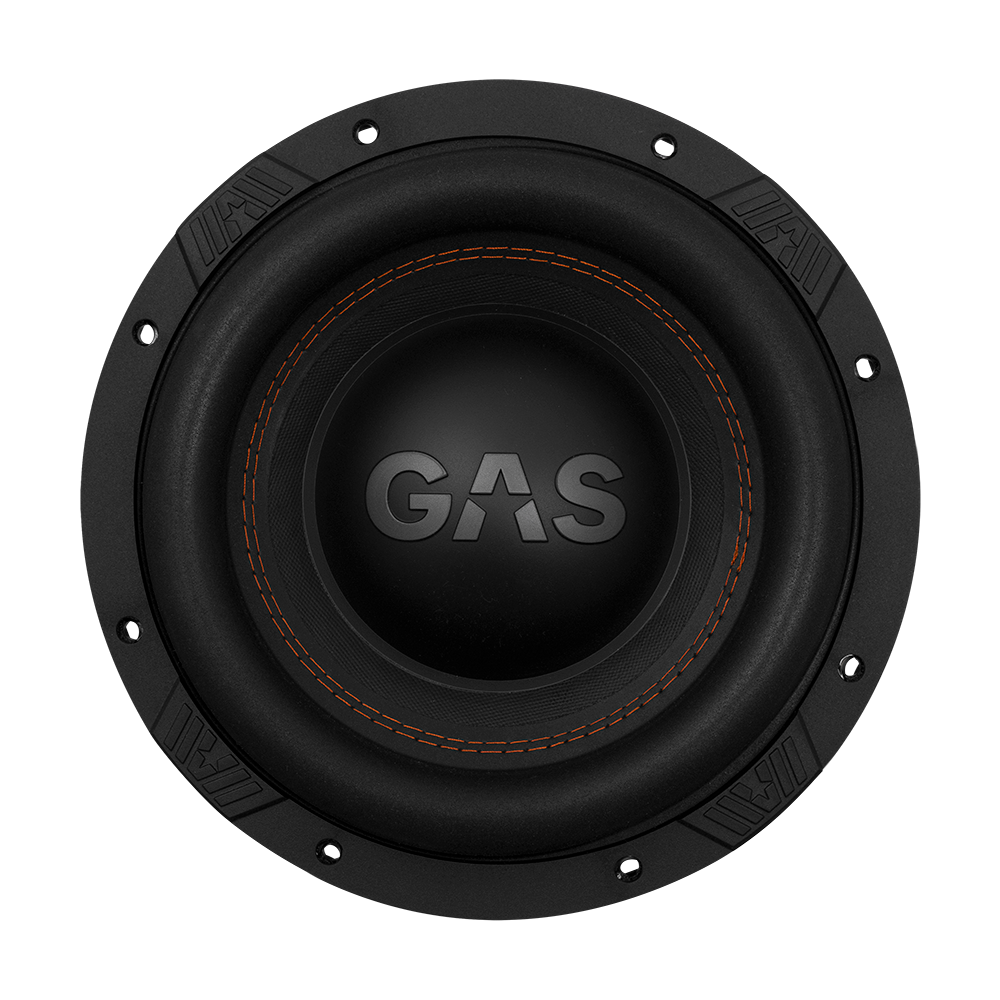

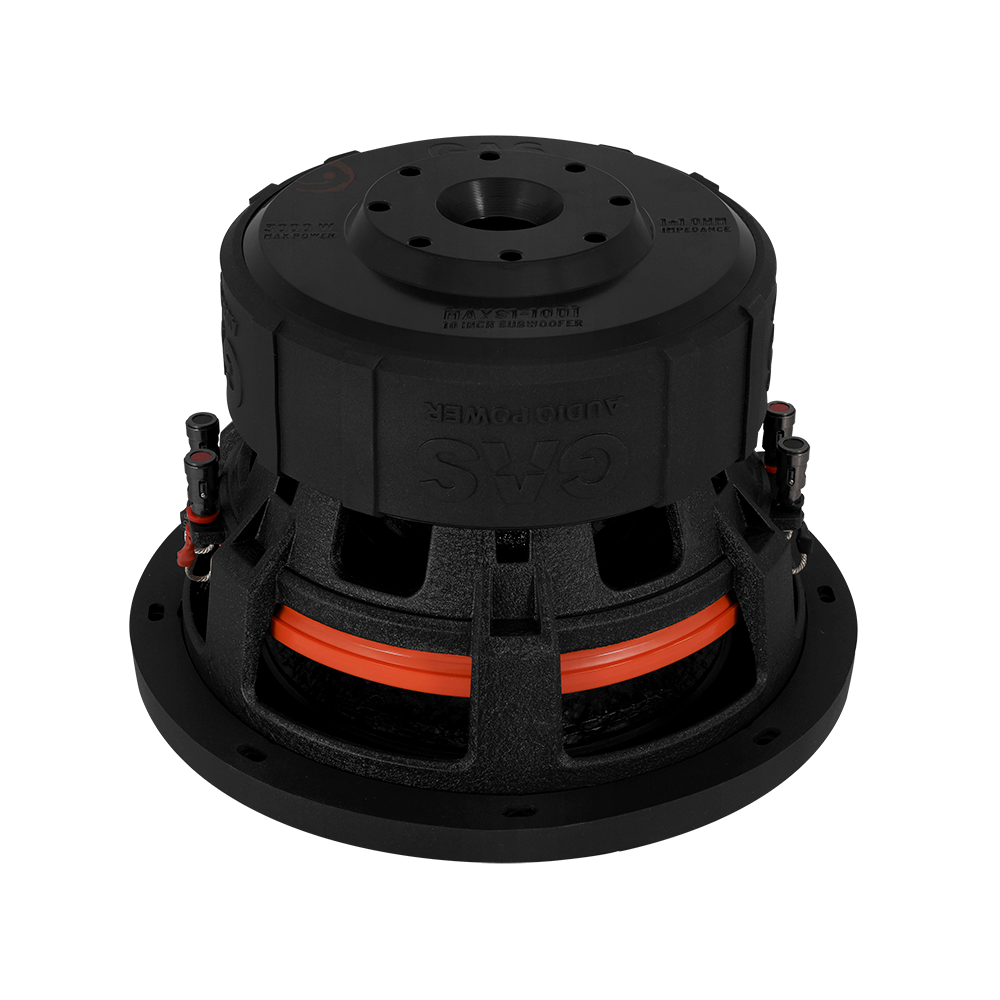

GAS Audio Power MAX S1-8D1
2x1Ω
Subwoofer
| Nominal diameter | 8″ / 200 mm |
| Resonance | 33.1 Hz |
| Q factor | 0.42 |
| Sensitivity | 80.8 dB |
| Linear excursion | ± 6 mm |
| Program Power | 1100 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 80.8dB
- Frequency response 25 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 33.1Hz
- Mechanical quality factor QMS 3.78
- Electrical quality factor QES 0.47
- Total quality factor QTS 0.42
Large signal parameters
- Maximum linear excursion (one way) xmax 6mm
- Air volume displaced at xmax VD 121cm³
- Power handling P 550W
- Program power Pmax 1100W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 1.8Ω
- Inductance (1kHz, in series) LE 0.87mH
- VC Diameter 63.5mm
- Winding material Copper
- Former material Aluminum
Magnet
- Force factor (in series) Bl 11.4N/A
- Motor constant Bl/√RE 8.5N/√W
- Weight 3.18kg
- Material Ferrite
Diaphragm
- Effective diameter 160mm
- Effective area SD 201cm²
- Moving mass MMS 148g
- Moving mass (without air load) MMD 145g
- Material Paper
Suspensions
- Stiffness KMS 7.04N/mm
- Compliance CMS 142µm/N
- Equivalent volume to the compliance VAS 8.8L
- Mechanical resistance RMS 8.12N·s/m
- Surround material Foam
- Spider material Nomex
Dimensions
- Nominal diameter 8″
- 200mm
- Overall diameter 220mm
- Baffle cutout diameter 185mm
- Mounting depth 141mm
- Volume occupied by the driver 1.4L
- Net weight 8.7kg
- Frame material Aluminium
