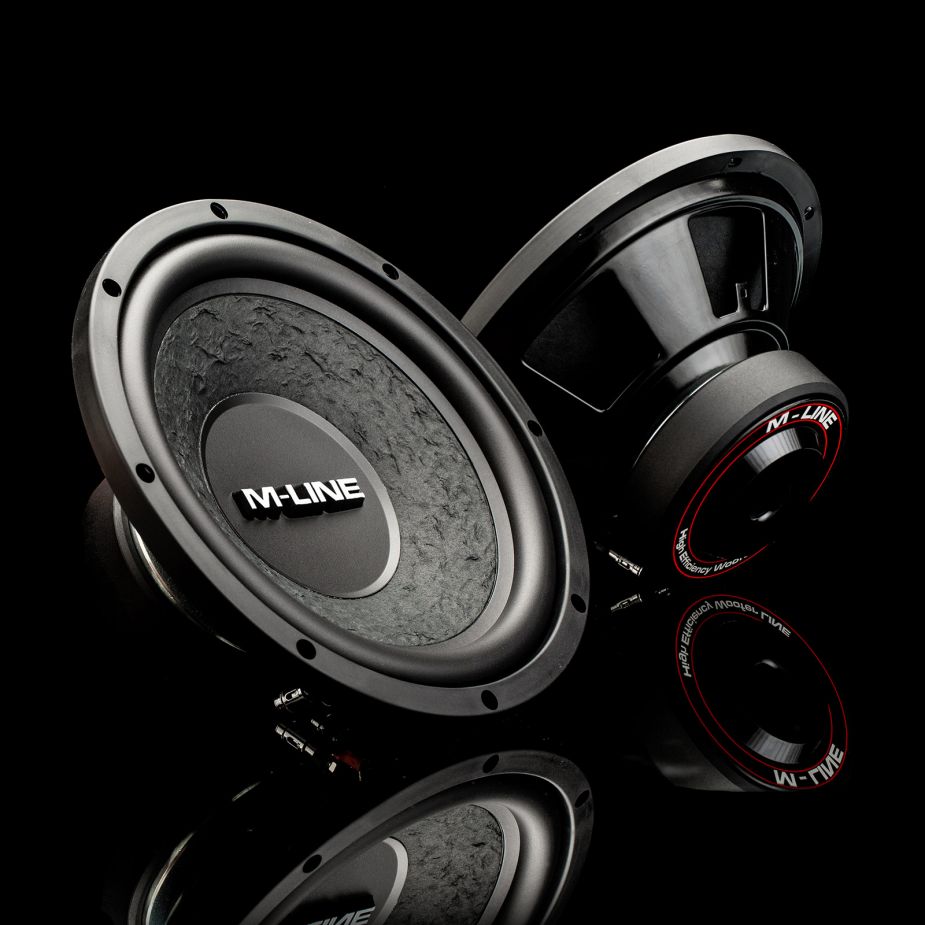

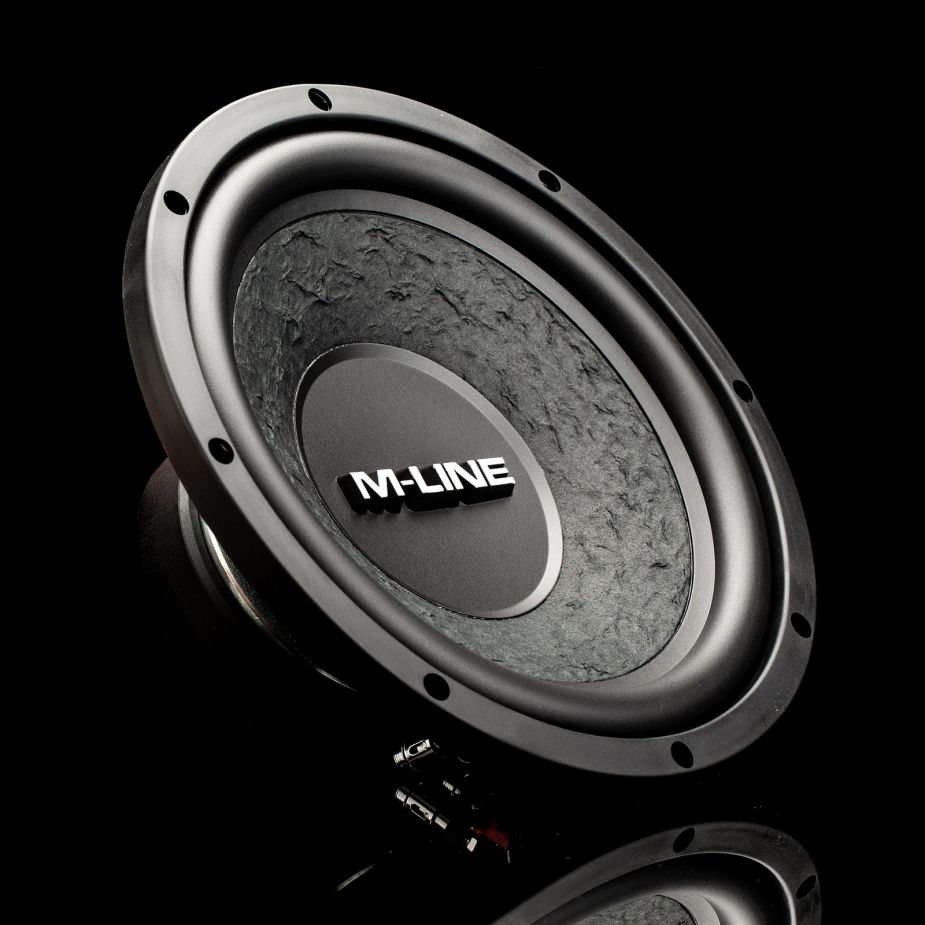

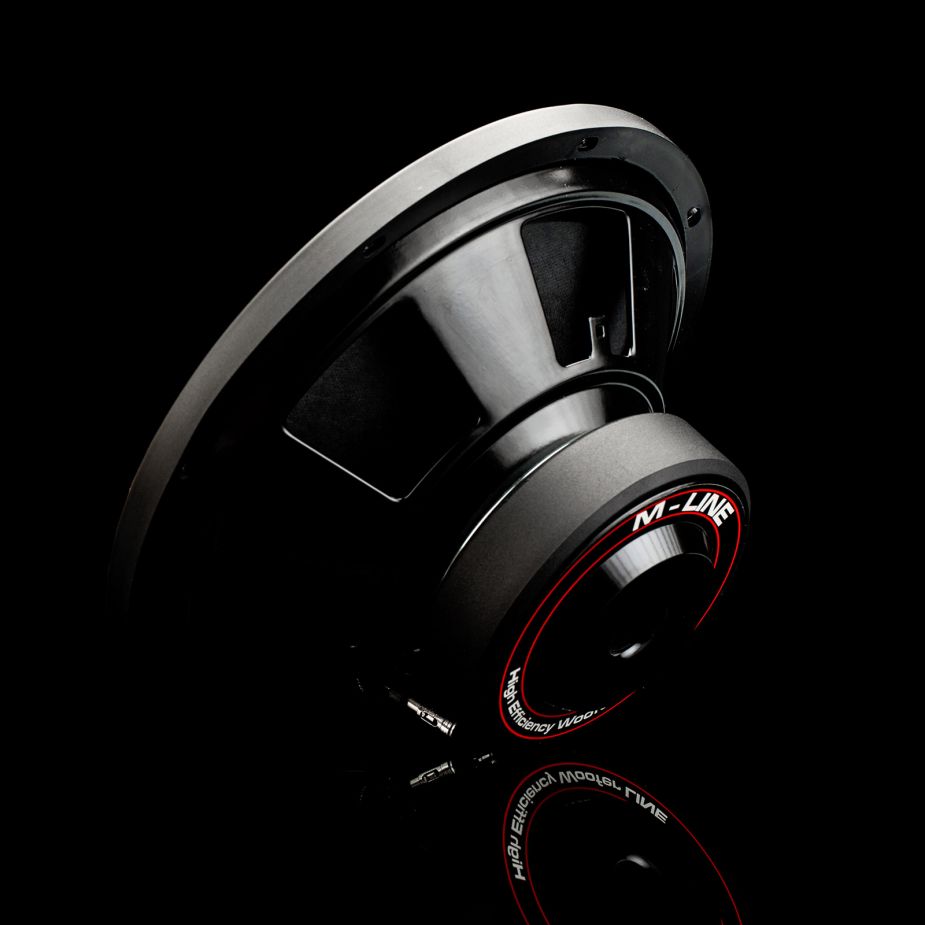

GLADEN M-LINE M10
4Ω
Subwoofer
| Nominal diameter | 10″ / 262 mm |
| Resonance | 31.3 Hz |
| Q factor | 0.37 |
| Sensitivity | 89 dB |
| Program power | 300 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 89dB
Thiele & Small parameters
- Resonance frequency (free air) fS 31.3Hz
- Mechanical quality factor QMS 5.51
- Electrical quality factor QES 0.40
- Total quality factor QTS 0.37
Large signal parameters
- Power handling P 200W
- Program power Pmax 300W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.2Ω
- Inductance (1kHz, estimated) LE 1.17mH
- VC Diameter 50.8mm
- Former material Aluminium
Magnet
- Force factor Bl 10.2N/A
- Motor constant Bl/√RE 5.7N/√W
- Diameter 127mm
Diaphragm
- Effective diameter 216mm
- Effective area SD 366cm²
- Moving mass (including air load) MMS 67.2g
- Moving mass MMD 62.2g
- Material Paper
Suspensions
- Stiffness KMS 2.94N/mm
- Compliance CMS 340µm/N
- Equivalent volume to the compliance VAS 63.6L
- Mechanical resistance RMS 2.3N·s/m
- Surround material Rubber
- Spider material Nomex
Dimensions
- Nominal diameter 10″
- 262mm
- Overall diameter 262mm
- Baffle cutout diameter 236mm
- Overall depth 112mm
- Flange thickness 0mm
- Mounting depth 112mm
- Volume occupied by the driver (estimated) 1.4L
- Frame material Steel
