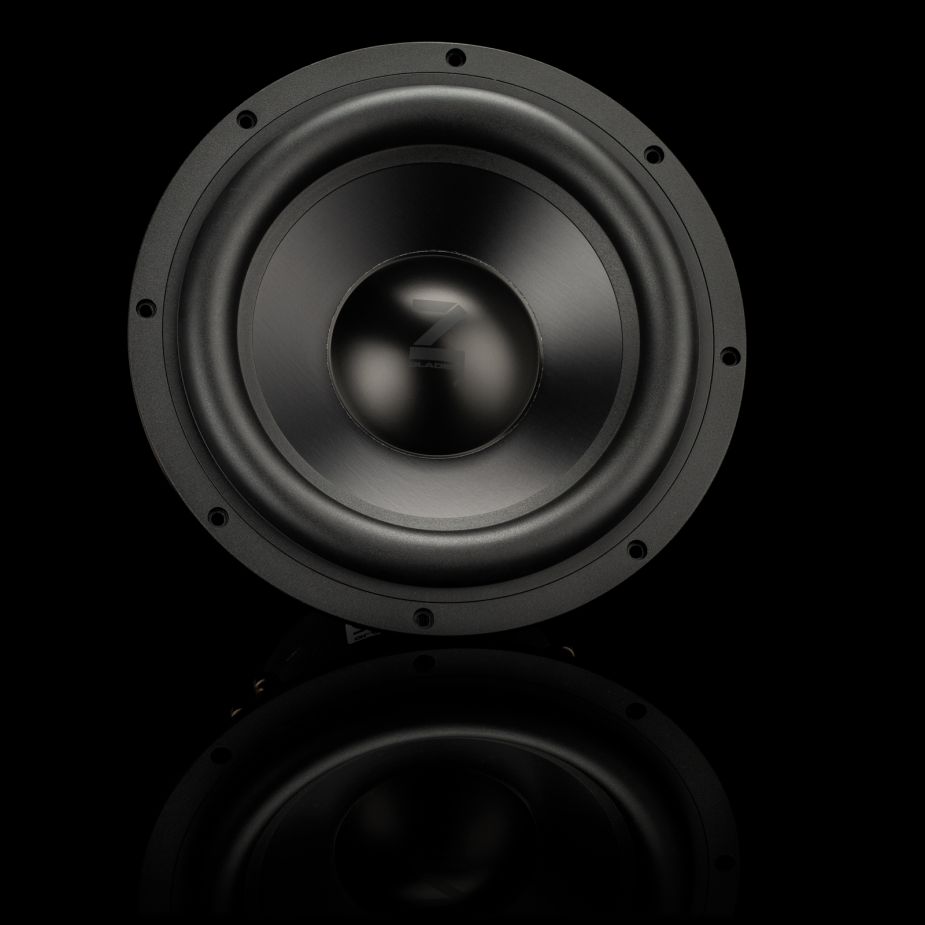

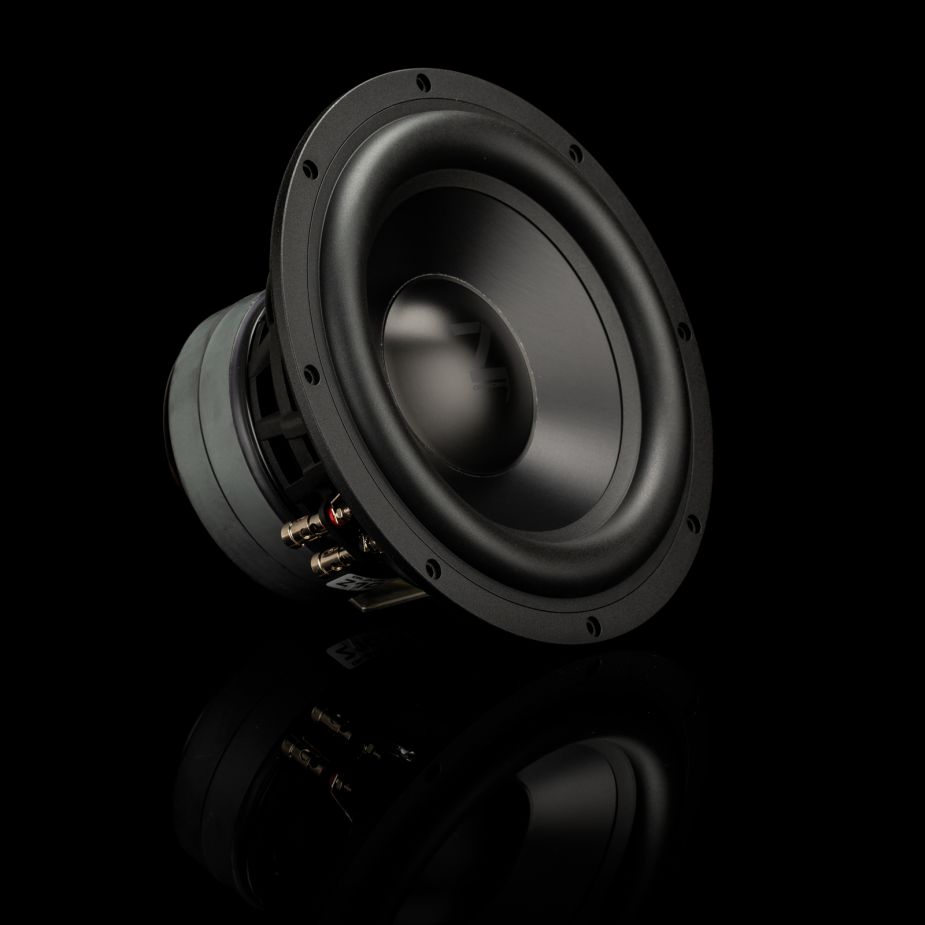

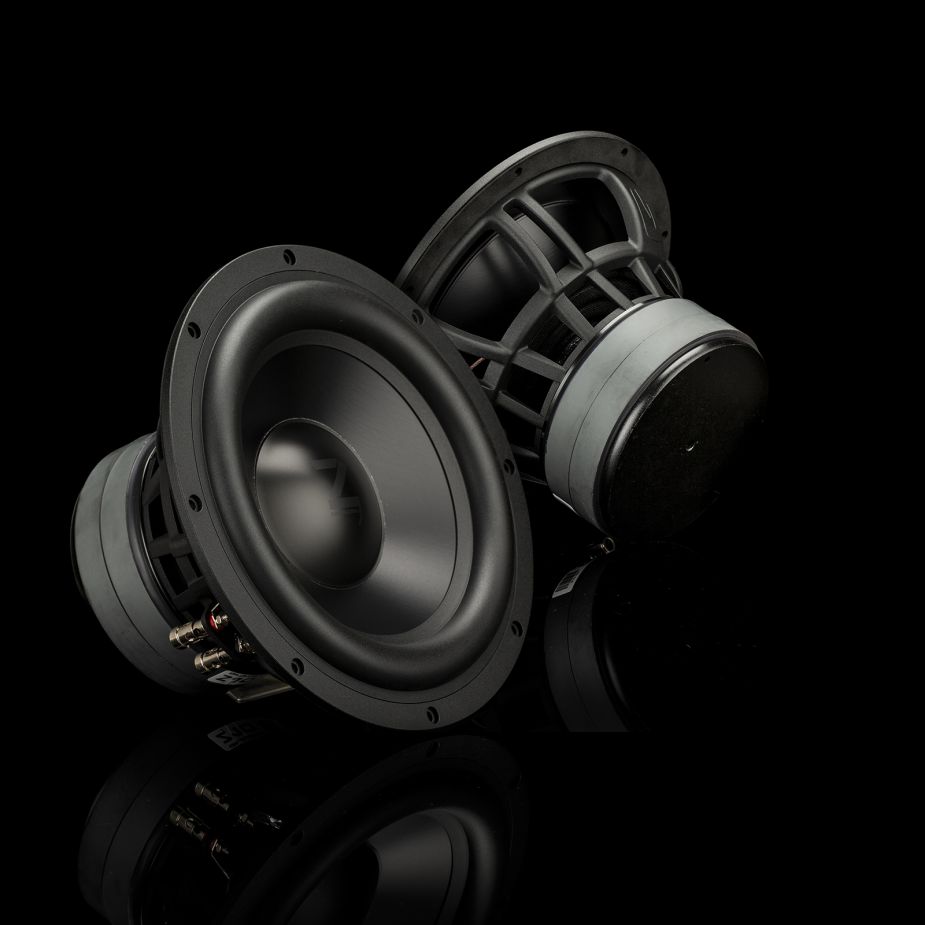

GLADEN ZETA 10
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 268 mm |
| Resonance | 26.5 Hz |
| Q factor | 0.79 |
| Sensitivity | 83.1 dB |
| Linear excursion | ± 11.5 mm |
| Program power | 600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.1dB
Thiele & Small parameters
- Resonance frequency (free air) fS 26.5Hz
- Mechanical quality factor QMS 8.80
- Electrical quality factor QES 0.86
- Total quality factor QTS 0.79
Large signal parameters
- Maximum linear excursion (one way) xmax 11.5mm
- Air volume displaced at xmax VD 359cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.8Ω
- Inductance (1kHz, in series, estimated) LE 2.57mH
- VC Diameter 50.8mm
Magnet
- Force factor (in series) Bl 15.8N/A
- Motor constant Bl/√RE 5.73N/√W
- Diameter 145mm
Diaphragm
- Effective diameter 199mm
- Effective area SD 312cm²
- Moving mass (including air load) MMS 170g
- Moving mass MMD 166g
Suspensions
- Stiffness KMS 4.76N/mm
- Compliance CMS 210µm/N
- Equivalent volume to the compliance VAS 29.3L
- Mechanical resistance RMS 3.23N·s/m
Dimensions
- Nominal diameter 10″
- 268mm
- Overall diameter 268mm
- Baffle cutout diameter 231mm
- Mounting depth 147mm
- Volume occupied by the driver (estimated) 1.7L
