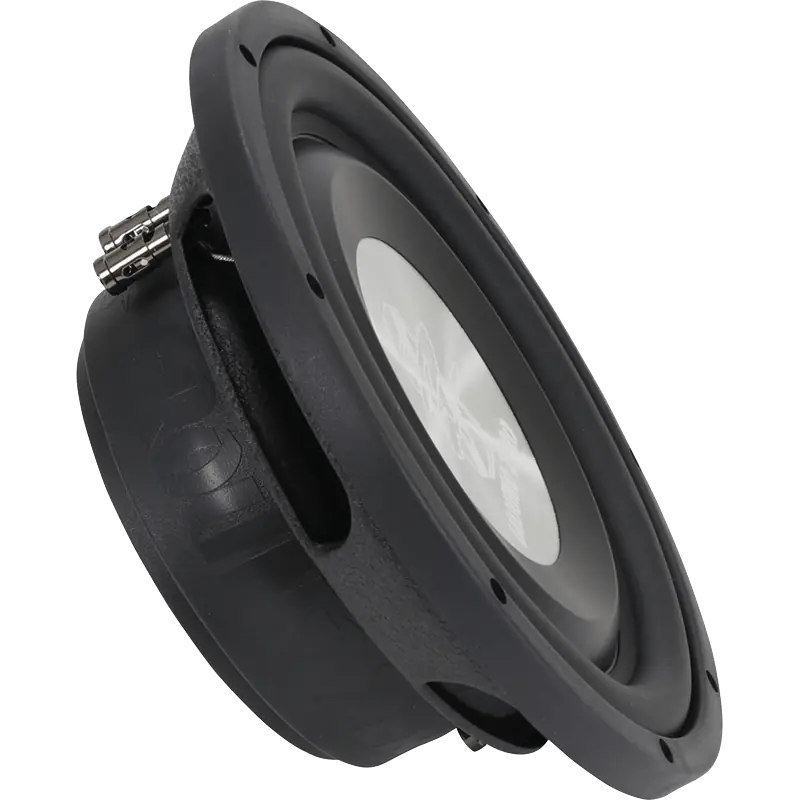

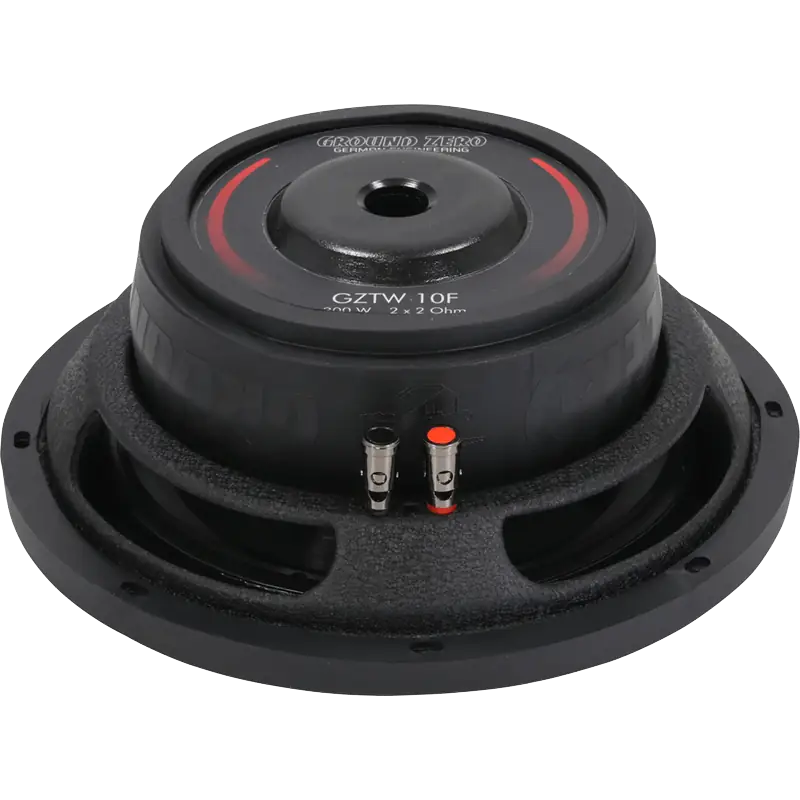

Ground Zero TITANIUM GZTW 10F
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 33 Hz |
| Q factor | 0.57 |
| Sensitivity | 87.8 dB |
| Program Power | 600 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.8dB
Thiele & Small parameters
- Resonance frequency (free air) fS 33Hz
- Mechanical quality factor QMS 6.70
- Electrical quality factor QES 0.62
- Total quality factor QTS 0.57
Large signal parameters
- Maximum excursion before damage xlim 10mm
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.0Ω
- Inductance (1kHz, in series) LE 1.79mH
- VC Diameter 50mm
- Winding material Copper
Magnet
- Force factor (in series) Bl 13.1N/A
- Motor constant Bl/√RE 6.55N/√W
Diaphragm
- Effective diameter 215mm
- Effective area SD 364cm²
- Moving mass MMS 92.2g
- Moving mass (without air load) MMD 87.2g
- Material IMPP
Suspensions
- Stiffness KMS 5.53N/mm
- Compliance CMS 181µm/N
- Equivalent volume to the compliance VAS 34L
- Mechanical resistance RMS 2.85N·s/m
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 260mm
- Baffle cutout diameter 232mm
- Mounting depth 88mm
- Volume occupied by the driver (estimated) 1.6L
- Frame material Steel
