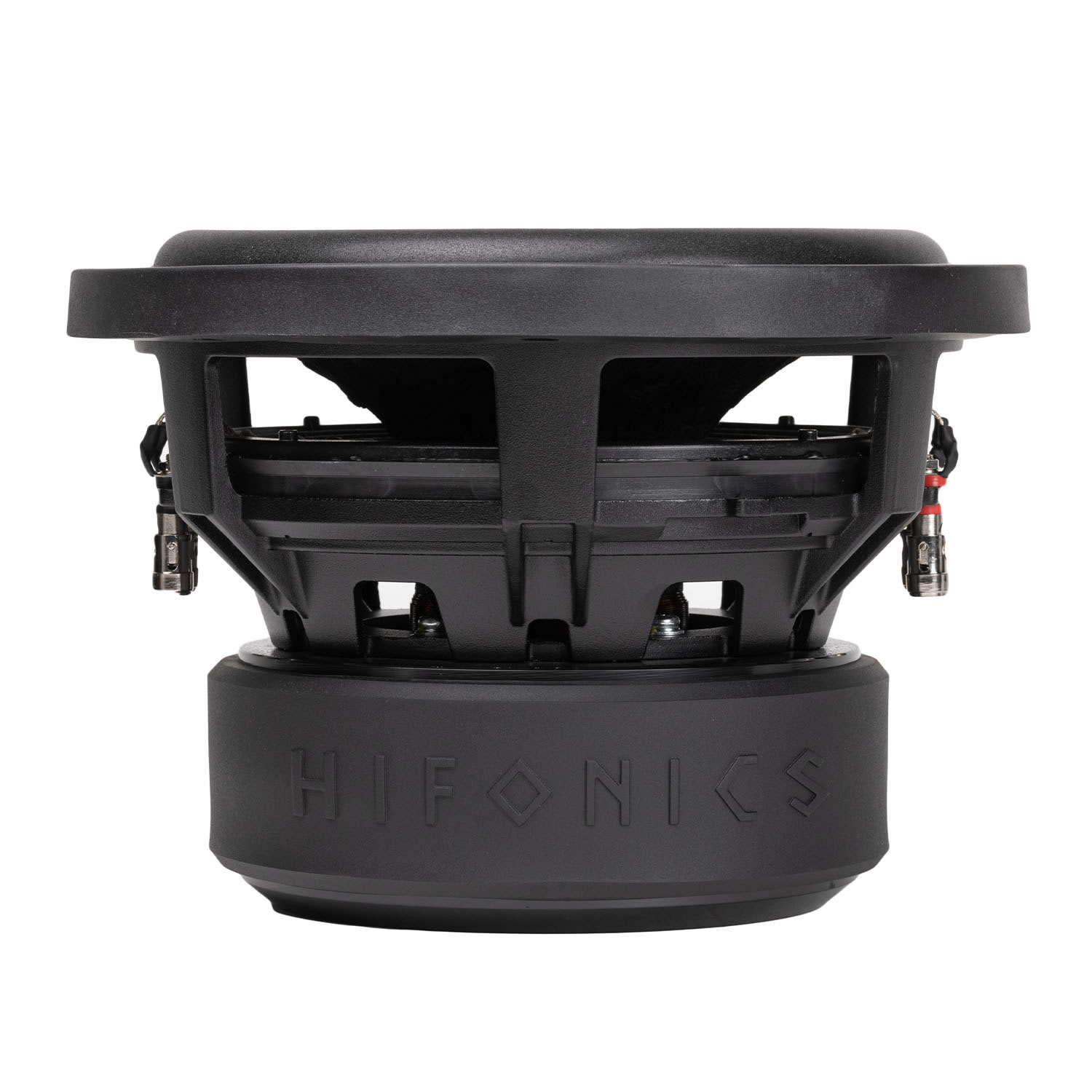

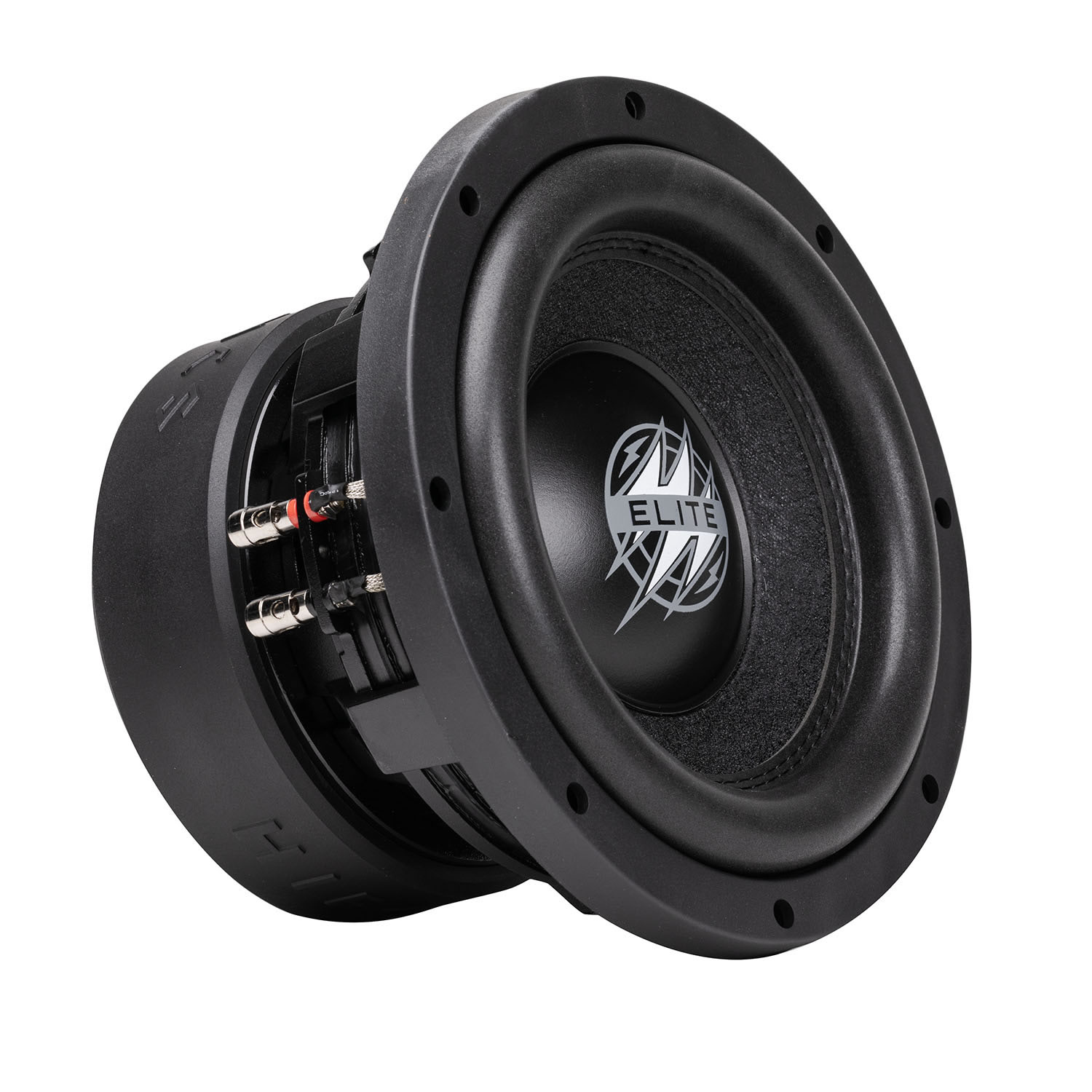

HiFonics ELITE HEW10D4
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 254 mm |
| Resonance | 32 Hz |
| Q factor | 0.43 |
| Sensitivity | 83.4 dB |
| Linear excursion | ± 18 mm |
| Program Power | 1200 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.4dB
Thiele & Small parameters
- Resonance frequency (free air) fS 32Hz
- Mechanical quality factor QMS 5.20
- Electrical quality factor QES 0.46
- Total quality factor QTS 0.43
Large signal parameters
- Maximum linear excursion (one way) xmax 18mm
- Air volume displaced at xmax VD 594cm³
- Power handling P 600W
- Program power Pmax 1200W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 8.0Ω
- Inductance (1kHz, in series) LE 2.6mH
- VC Diameter 76mm
Magnet
- Force factor (in series) Bl 26N/A
- Motor constant Bl/√RE 9.19N/√W
Diaphragm
- Effective diameter 205mm
- Effective area SD 330cm²
- Moving mass MMS 194g
- Moving mass (without air load) MMD 189g
Suspensions
- Stiffness KMS 8.2N/mm
- Compliance CMS 122µm/N
- Equivalent volume to the compliance VAS 18.8L
- Mechanical resistance RMS 7.5N·s/m
Dimensions
- Nominal diameter 10″
- 254mm
- Overall diameter 276mm
- Baffle cutout diameter 238mm
- Mounting depth 166mm
- Volume occupied by the driver (estimated) 1.9L
