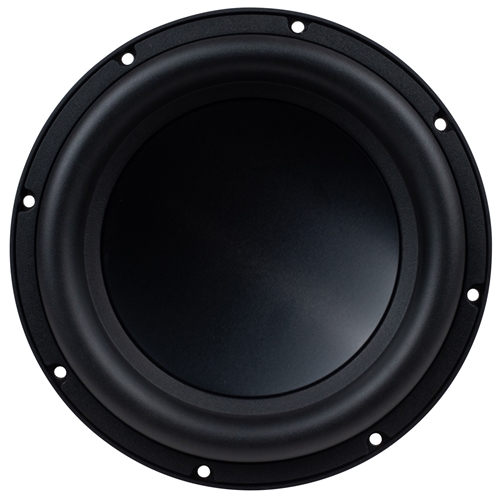

Dayton Audio Signature SS10-22
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 266 mm |
| Resonance | 34 Hz |
| Q factor | 0.40 |
| Sensitivity | 84.4 dB |
| Linear excursion | ± 21 mm |
| Program Power | 1400 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.4dB

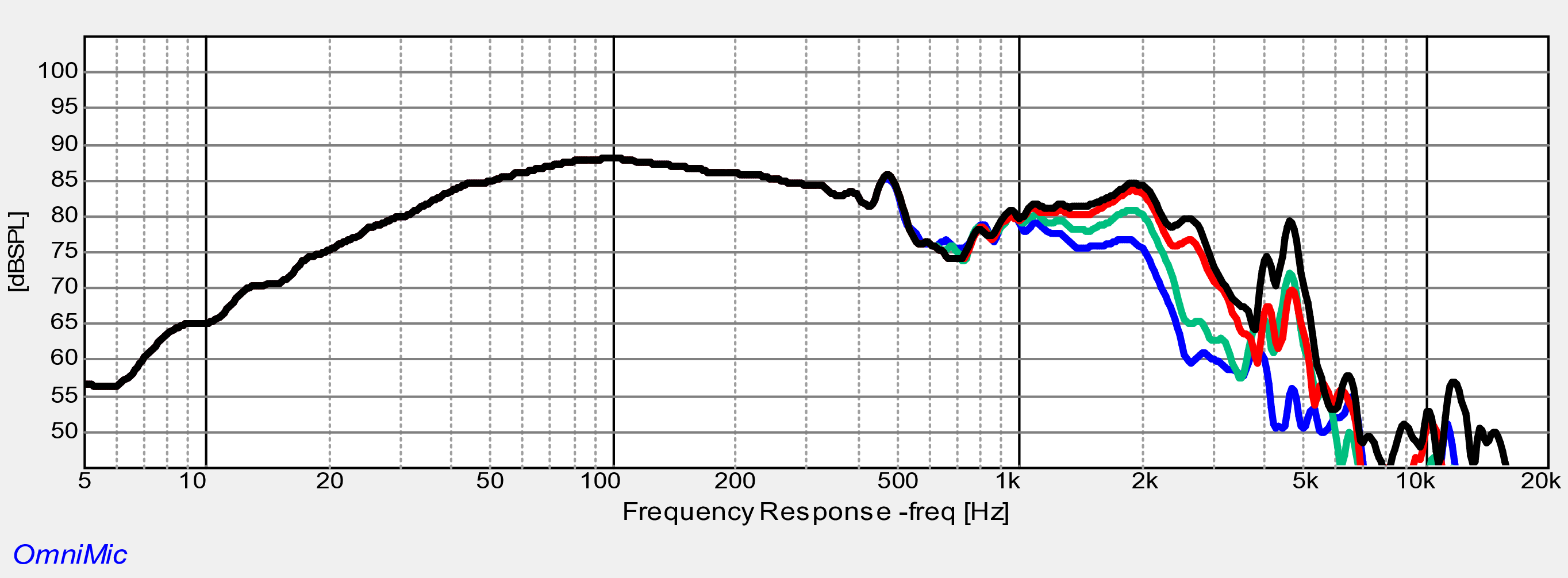

- Frequency response 20 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 34Hz
- Mechanical quality factor QMS 3.80
- Electrical quality factor QES 0.45
- Total quality factor QTS 0.40
Large signal parameters
- Maximum linear excursion xmax 21mm
- Air volume displaced at xmax VD 724cm³
- Power handling P 700W
- Program power Pmax 1400W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.4Ω
- Inductance (1kHz, in series) LE 1.6mH
- VC Diameter 63.5mm
- Winding material CCA
- Former material Aluminum
Magnet
- Force factor (in series) Bl 19.4N/A
- Motor constant Bl/√RE 9.25N/√W
- Material Ferrite
Diaphragm
- Effective diameter 209mm
- Effective area SD 345cm²
- Moving mass MMS 180g
- Moving mass (without air load) MMD 175g
- Material Aluminum
Suspensions
- Stiffness KMS 8.2N/mm
- Compliance CMS 122µm/N
- Equivalent volume to the compliance VAS 20.6L
- Mechanical resistance RMS 10.1N·s/m
- Surround material Rubber
Dimensions
- Nominal diameter 10″
- 266mm
- Overall diameter 266mm
- Baffle cutout diameter 237mm
- Overall depth 179mm
- Volume occupied by the driver (estimated) 2.6L
- Frame material Cast Aluminium
.png)
.png)
