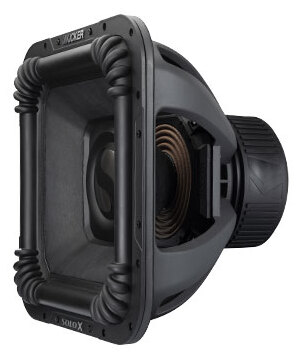

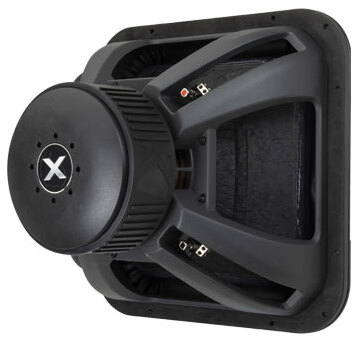

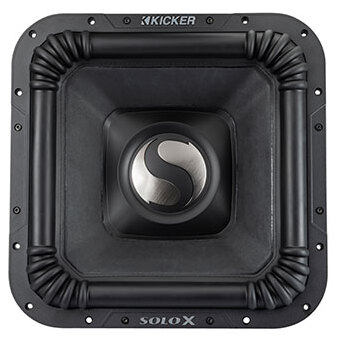

KICKER SoloX 49L7X181
2x1Ω
2x2ΩSubwoofer
| Nominal size | 18x18″ / 460x460 mm |
| Resonance | 26.9 Hz |
| Q factor | 0.56 |
| Sensitivity | 88.5 dB |
| Linear excursion | ± 31.3 mm |
| Program Power | 2000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.5dB
- Frequency response 18 - 100Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 26.9Hz
- Mechanical quality factor QMS 7.02
- Electrical quality factor QES 0.61
- Total quality factor QTS 0.56
Large signal parameters
- Maximum linear excursion xmax 31.3mm
- Air volume displaced at xmax VD 4395cm³
- Power handling P 1000W
- Program power Pmax 2000W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 1.8Ω
- Inductance (1kHz, in series) LE 3.05mH
- VC Diameter 75mm
- Winding height HVC 62.5mm
Magnet
- Force factor (in series) Bl 20.4N/A
- Motor constant Bl/√RE 15N/√W
Diaphragm
- Effective diameter 423mm
- Effective area SD 1406cm²
- Moving mass MMS 801g
- Moving mass (without air load) MMD 767g
Suspensions
- Stiffness KMS 23.2N/mm
- Compliance CMS 45µm/N
- Equivalent volume to the compliance VAS 126L
- Mechanical resistance RMS 19.3N·s/m
Dimensions
- Nominal size 18 x 18″
- 460 x 460mm
- Flange thickness 13mm
- Volume occupied by the driver (estimated) 5.2L
- Net weight 11.5kg
.png)
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
