KICKER SoloX 49L7X182
2x1Ω
2x2Ω
Subwoofer
| Nominal size | 18x18″ / 460x460 mm |
| Resonance | 28.9 Hz |
| Q factor | 0.63 |
| Sensitivity | 88.6 dB |
| Linear excursion | ± 31.3 mm |
| Program Power | 2000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.6dB
- Frequency response 18 - 100Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 28.9Hz
- Mechanical quality factor QMS 6.61
- Electrical quality factor QES 0.70
- Total quality factor QTS 0.63
Large signal parameters
- Maximum linear excursion (one way) xmax 31.3mm
- Air volume displaced at xmax VD 4395cm³
- Power handling P 1000W
- Program power Pmax 2000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series) LE 4.73mH
- VC Diameter 75mm
- Winding height HVC 62.5mm
Magnet
- Force factor (in series) Bl 26.2N/A
- Motor constant Bl/√RE 13.9N/√W
Diaphragm
- Effective diameter 423mm
- Effective area SD 1406cm²
- Moving mass MMS 749g
- Moving mass (without air load) MMD 715g
Suspensions
- Stiffness KMS 24.8N/mm
- Compliance CMS 40.5µm/N
- Equivalent volume to the compliance VAS 114L
- Mechanical resistance RMS 20.6N·s/m

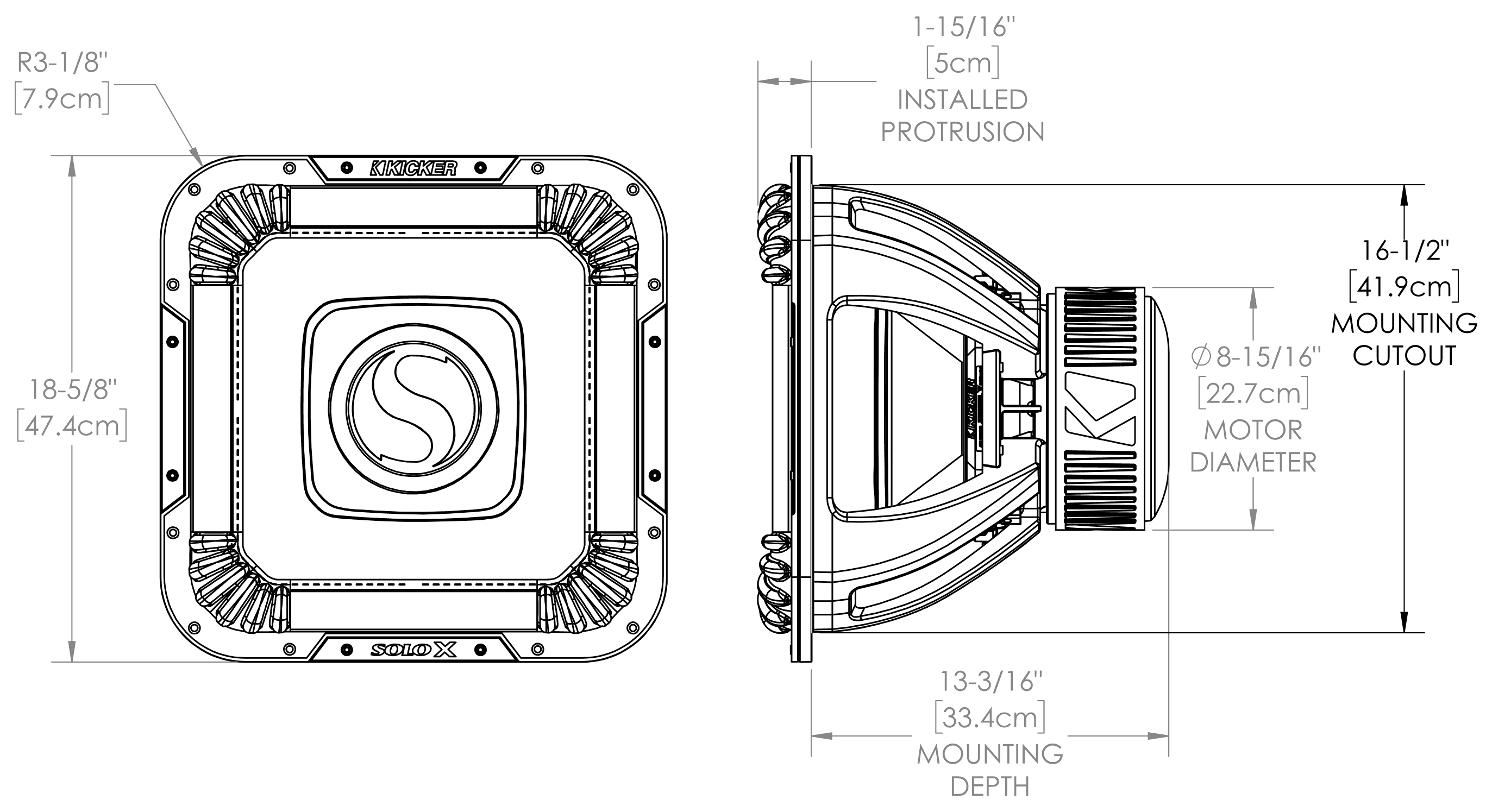

Dimensions
- Nominal size 18 x 18″
- 460 x 460mm
- Flange thickness 13mm
- Volume occupied by the driver (estimated) 5.2L
- Net weight 11.5kg
