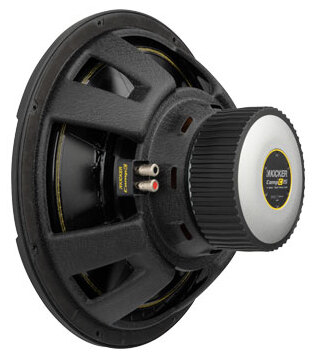

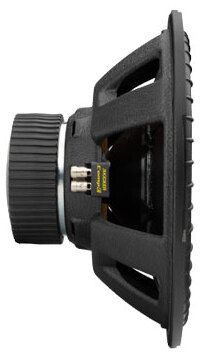

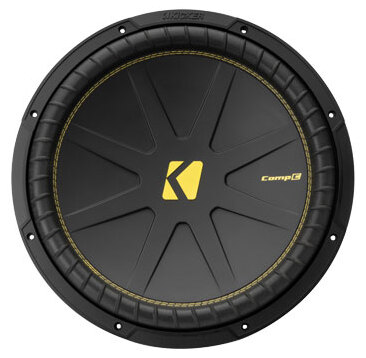

KICKER CompC 50CWCD154
2x4Ω
4ΩSubwoofer
| Nominal diameter | 15″ / 380 mm |
| Resonance | 28.5 Hz |
| Q factor | 0.73 |
| Sensitivity | 88.4 dB |
| Linear excursion | ± 16.1 mm |
| Program Power | 900 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.4dB
- Frequency response 25 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 28.5Hz
- Mechanical quality factor QMS 9.38
- Electrical quality factor QES 0.79
- Total quality factor QTS 0.73
Large signal parameters
- Maximum linear excursion xmax 16.1mm
- Air volume displaced at xmax VD 1336cm³
- Power handling P 450W
- Program power Pmax 900W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.6Ω
- Inductance (1kHz, in series) LE 5.2mH
Magnet
- Force factor (in series) Bl 18.4N/A
- Motor constant Bl/√RE 7.14N/√W
Diaphragm
- Effective diameter 325mm
- Effective area SD 830cm²
- Moving mass MMS 226g
- Moving mass (without air load) MMD 209g
Suspensions
- Stiffness KMS 7.22N/mm
- Compliance CMS 139µm/N
- Equivalent volume to the compliance VAS 135L
- Mechanical resistance RMS 4.35N·s/m

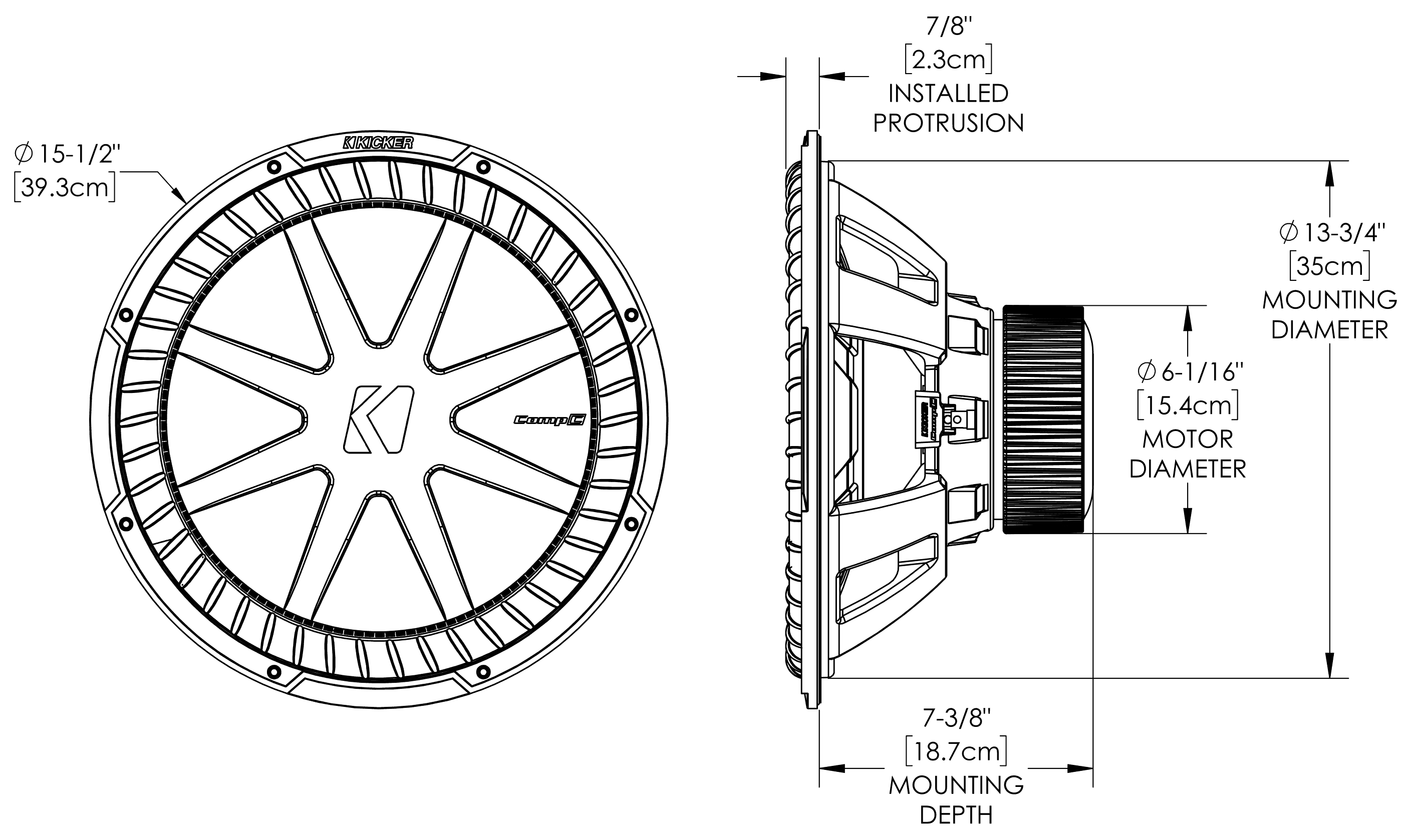

Dimensions
- Nominal diameter 15″
- 380mm
- Overall diameter 393mm
- Baffle cutout diameter 350mm
- Mounting depth 187mm
- Volume occupied by the driver (estimated) 4.7L
.png)
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
