KICKER CompC 50CWCS154
2x4Ω
4Ω
Subwoofer
| Nominal diameter | 15″ / 380 mm |
| Resonance | 26.8 Hz |
| Q factor | 0.59 |
| Sensitivity | 88.8 dB |
| Linear excursion | ± 16.1 mm |
| Program Power | 900 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.8dB
- Frequency response 25 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 26.8Hz
- Mechanical quality factor QMS 7.40
- Electrical quality factor QES 0.64
- Total quality factor QTS 0.59
Large signal parameters
- Maximum linear excursion (one way) xmax 16.1mm
- Air volume displaced at xmax VD 1336cm³
- Power handling P 450W
- Program power Pmax 900W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.4Ω
- Inductance (1kHz) LE 3.85mH
Magnet
- Force factor Bl 14.4N/A
- Motor constant Bl/√RE 7.81N/√W
Diaphragm
- Effective diameter 325mm
- Effective area SD 830cm²
- Moving mass MMS 232g
- Moving mass (without air load) MMD 215g
Suspensions
- Stiffness KMS 6.56N/mm
- Compliance CMS 153µm/N
- Equivalent volume to the compliance VAS 149L
- Mechanical resistance RMS 5.27N·s/m

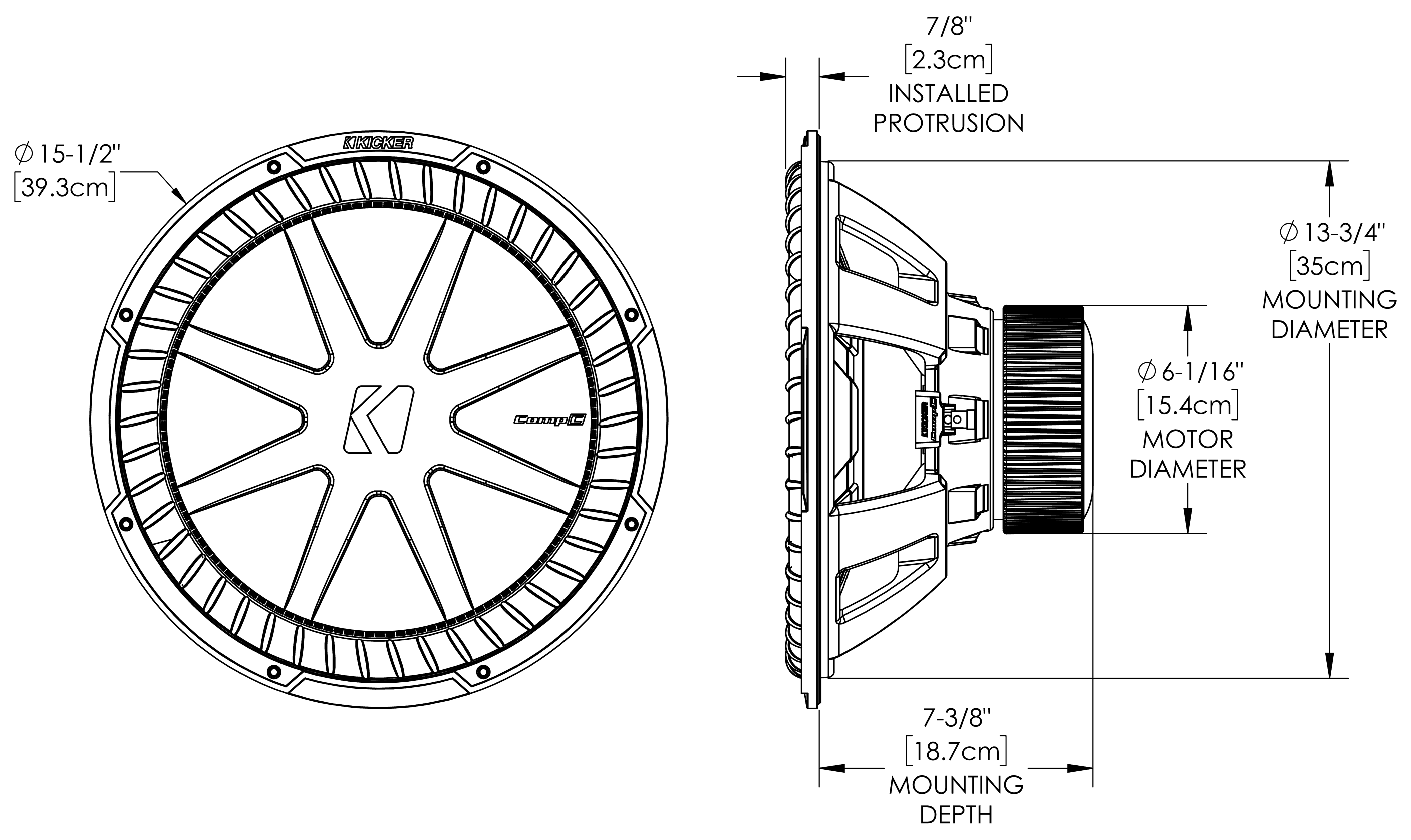

Dimensions
- Nominal diameter 15″
- 380mm
- Overall diameter 393mm
- Baffle cutout diameter 350mm
- Mounting depth 187mm
- Volume occupied by the driver (estimated) 4.7L
