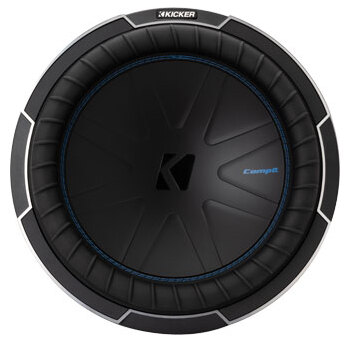

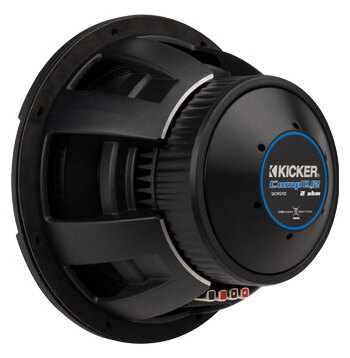

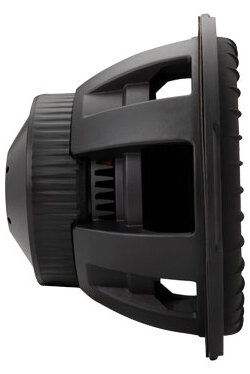

KICKER CompQ 2-Ω 51CWQ122

• Sensitivity (1W, 1m, infinite baffle) SPL1W 85.2dB
• Frequency response 20 - 100Hz

Thiele & Small parameters

• Resonance frequency (free air) fS 33.5Hz
• Mechanical quality factor QMS 11.51
• Electrical quality factor QES 0.57
• Total quality factor QTS 0.55

Large signal parameters

• Maximum linear excursion xmax 23mm
• Air volume displaced at xmax VD 1165cm³
• Power handling P 1000W
• Program power Pmax 2000W

Voice Coil

• Nominal impedance Z 2 x 2Ω
• DC resistance (in series) RE 3.7Ω
• Inductance (1kHz, in series) LE 4.93mH

Magnet

• Force factor (in series) Bl 20.7N/A
• Motor constant Bl/√RE 10.8N/√W

Diaphragm

• Effective diameter 254mm
• Effective area SD 507cm²
• Moving mass MMS 319g
• Moving mass (without air load) MMD 311g

Suspensions

• Stiffness KMS 14.2N/mm
• Compliance CMS 71µm/N
• Equivalent volume to the compliance VAS 25.7L
• Mechanical resistance RMS 5.84N·s/m

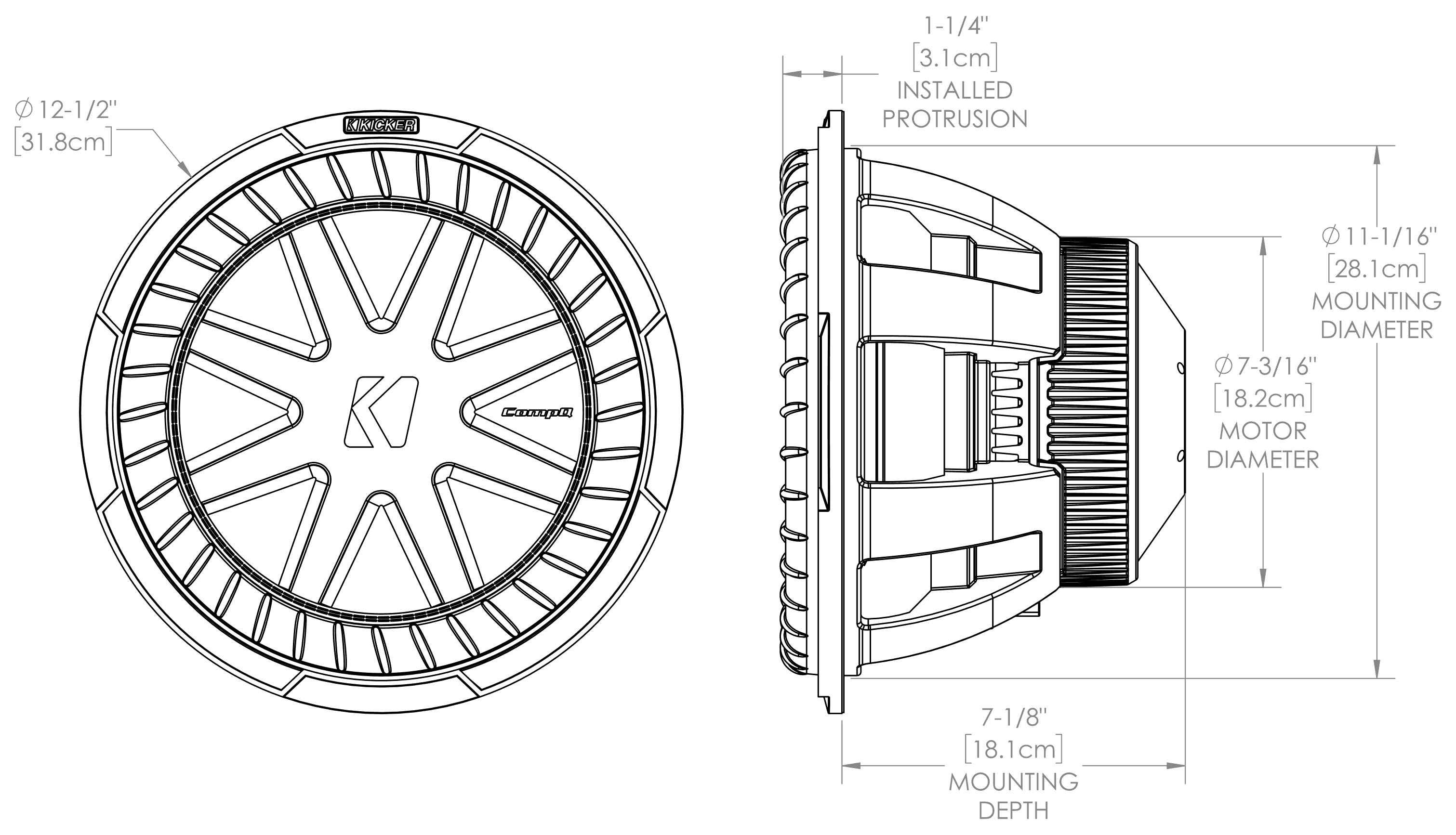

Dimensions

• Nominal diameter 12″
• 305mm
• Baffle cutout diameter 281mm
• Mounting depth 181mm
• Volume occupied by the driver (estimated) 2.4L
