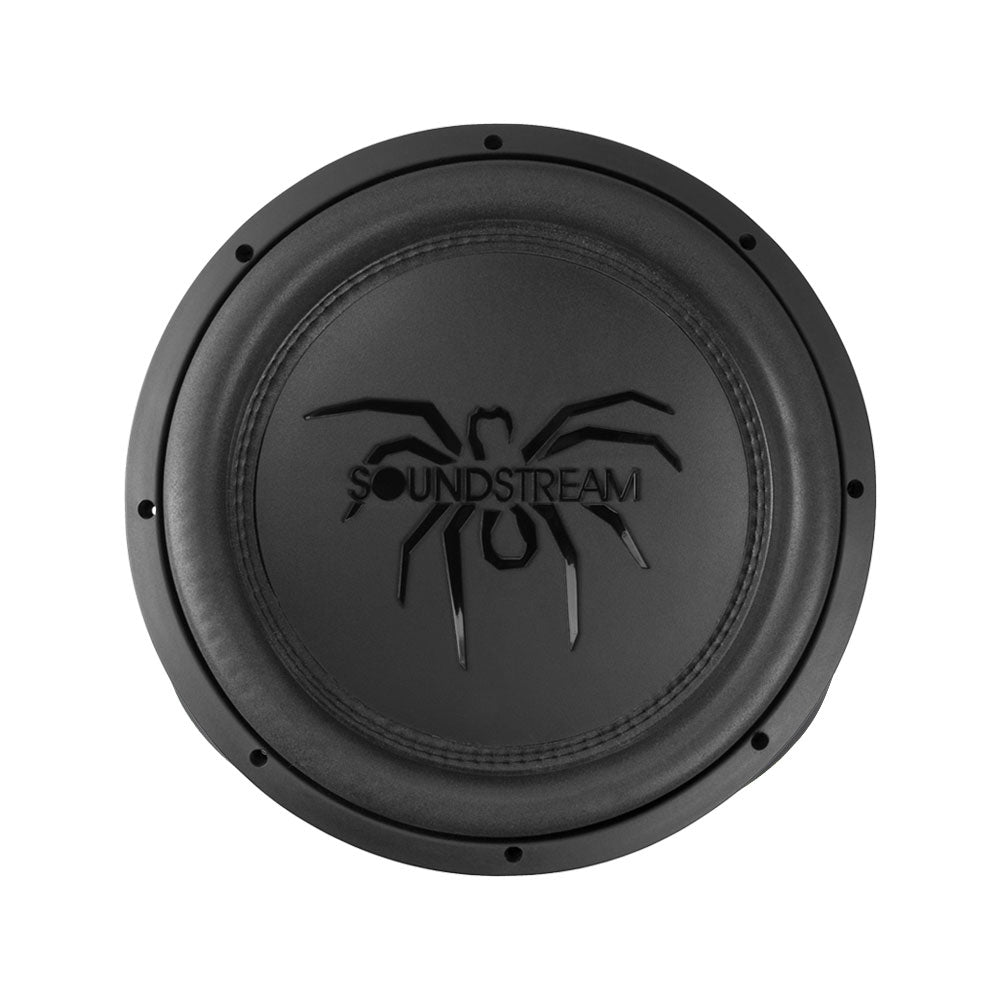

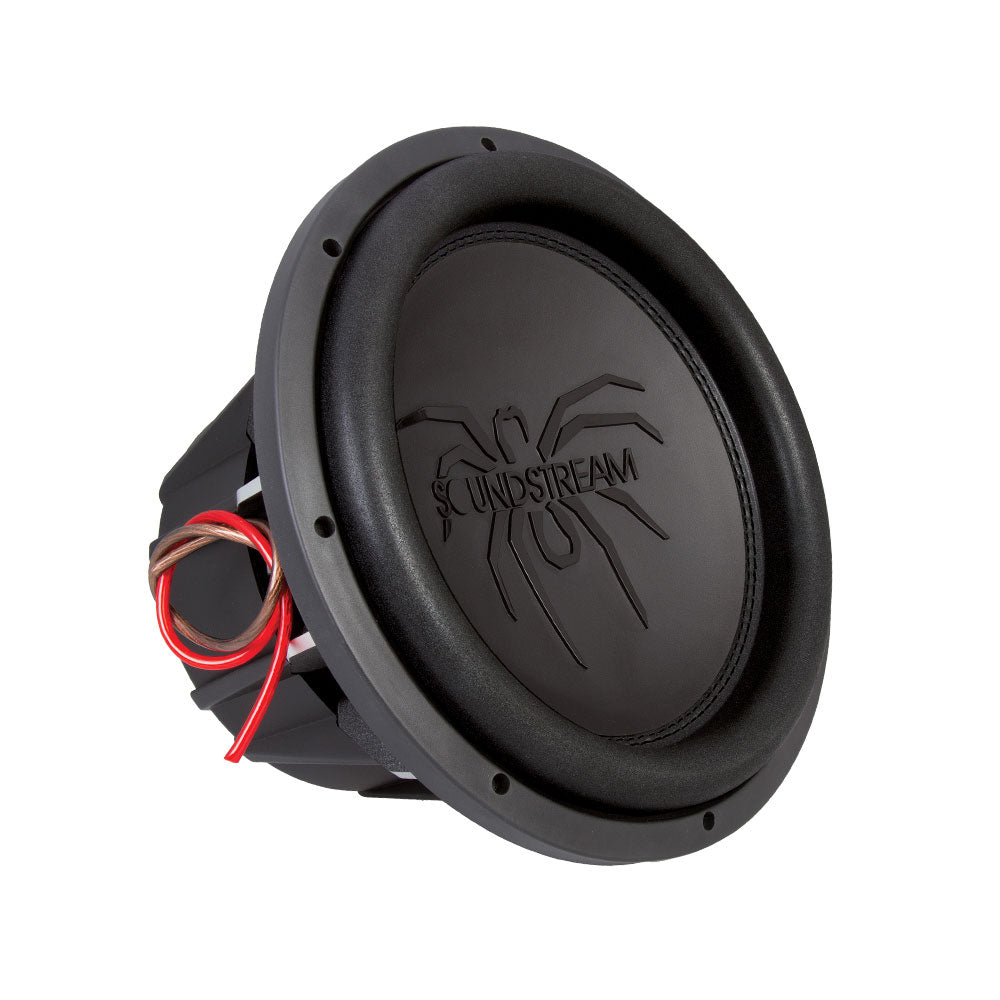

SoundStream Tarantula T5.124
2x4Ω
Subwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 35.8 Hz |
| Q factor | 0.67 |
| Sensitivity | 84 dB |
| Linear excursion | ± 16.5 mm |
| Program power | 2000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84dB
Thiele & Small parameters
- Resonance frequency (free air) fS 35.8Hz
- Mechanical quality factor QMS 6.56
- Electrical quality factor QES 0.75
- Total quality factor QTS 0.67
Large signal parameters
- Maximum linear excursion (one way) xmax 16.5mm
- Maximum excursion before damage xlim 18.8mm
- Air volume displaced at xmax VD 824cm³
- Power handling P 1000W
- Program power Pmax 2000W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 7.2Ω
- Inductance (1kHz, in series, estimated) LE 7.65mH
- VC Diameter 76.2mm
Magnet
- Force factor (in series) Bl 26.7N/A
- Motor constant Bl/√RE 9.95N/√W
- Air gap height HAG 12mm
- Diameter 200mm
Diaphragm
- Effective diameter 252mm
- Effective area SD 500cm²
- Moving mass (including air load) MMS 334g
- Moving mass MMD 326g
- Material Spruce pulp
Suspensions
- Stiffness KMS 16.7N/mm
- Compliance CMS 60µm/N
- Equivalent volume to the compliance VAS 21.2L
- Mechanical resistance RMS 11.5N·s/m
- Surround material Polyether foam
- Spider material Poly-Cotton
Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 324mm
- Baffle cutout diameter 279mm
- Mounting depth 178mm
- Volume occupied by the driver (estimated) 2.8L
- Frame material Die-Cast Aluminium
