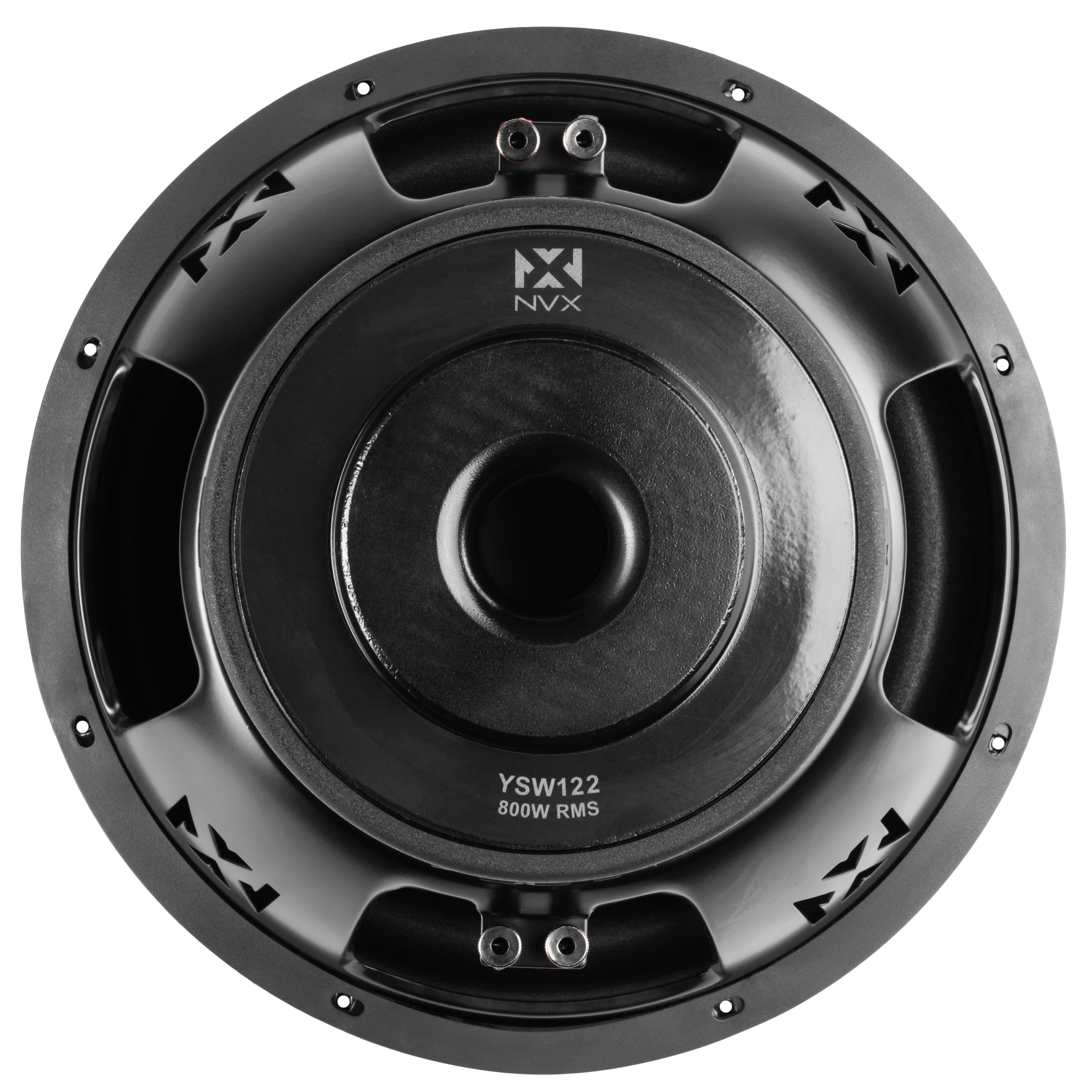

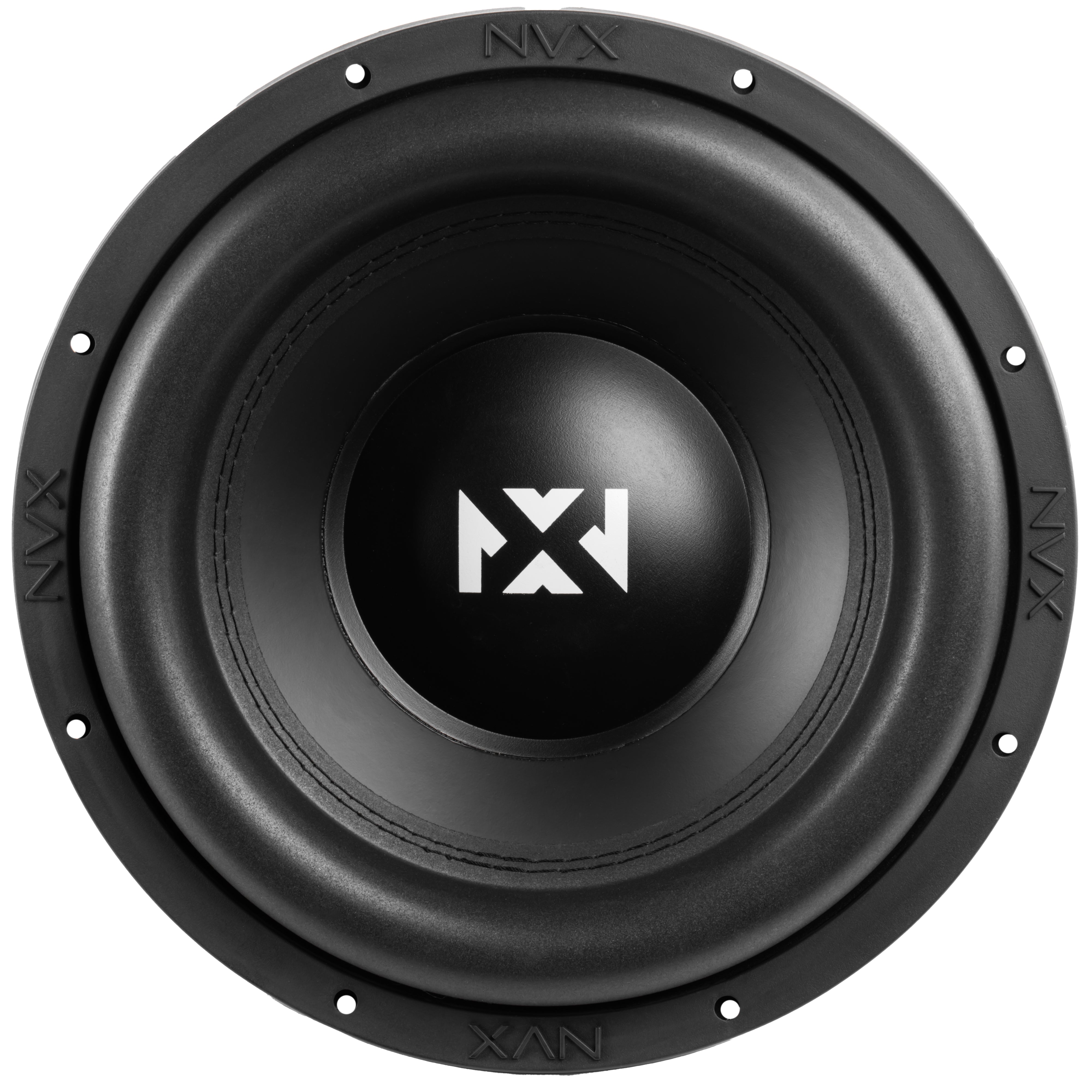

NVX YSW122
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 12″ / 305 mm |
| Resonance | 27.3 Hz |
| Q factor | 0.58 |
| Sensitivity | 82.1 dB |
| Linear excursion | ± 15 mm |
| Program power | 1600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.1dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 27.3Hz
- Mechanical quality factor QMS 5.41
- Electrical quality factor QES 0.65
- Total quality factor QTS 0.58
Large signal parameters
- Maximum linear excursion (one way) xmax 15mm
- Air volume displaced at xmax VD 701cm³
- Power handling P 800W
- Program power Pmax 1600W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series, estimated) LE 4.03mH
Magnet
- Force factor (in series) Bl 18.5N/A
- Motor constant Bl/√RE 9.75N/√W
Diaphragm
- Effective diameter 244mm
- Effective area SD 468cm²
- Moving mass (including air load) MMS 362g
- Moving mass MMD 354g
Suspensions
- Stiffness KMS 10.6N/mm
- Compliance CMS 94µm/N
- Equivalent volume to the compliance VAS 29.1L
- Mechanical resistance RMS 11.5N·s/m
Dimensions
- Nominal diameter 12″
- 305mm
- Overall diameter 316mm
- Baffle cutout diameter 283mm
- Mounting depth 166mm
- Volume occupied by the driver 2.55L
- Net weight 9.148kg
