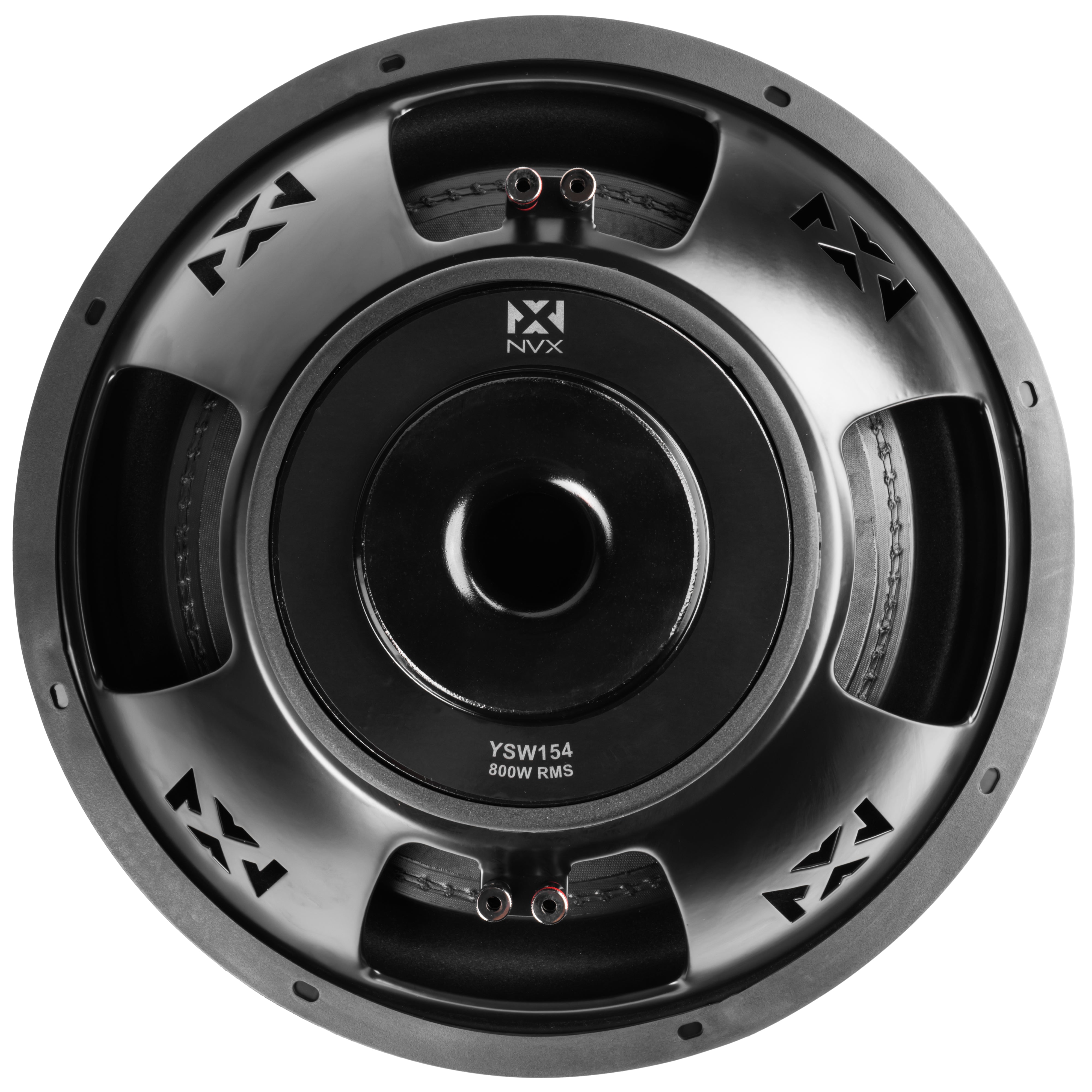

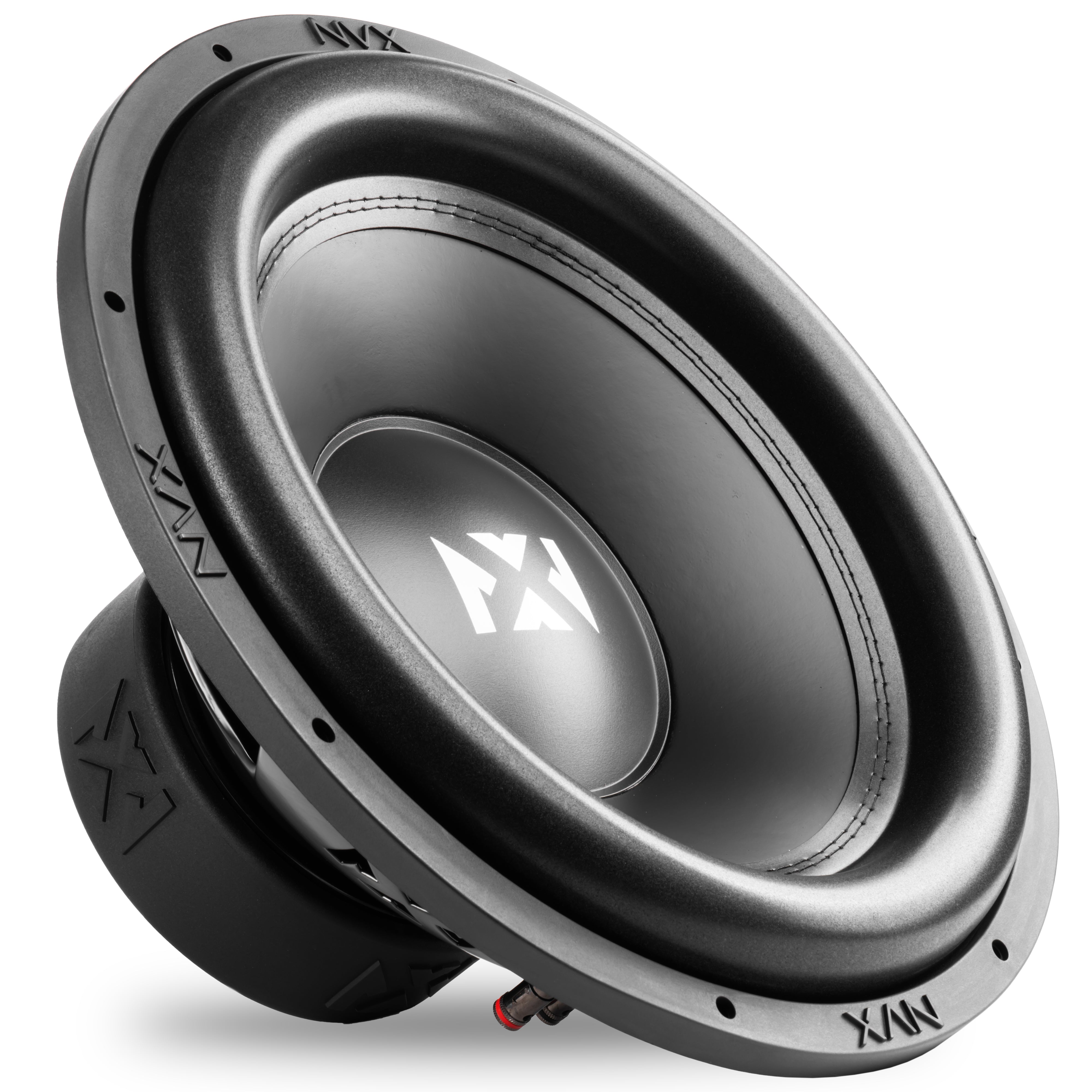

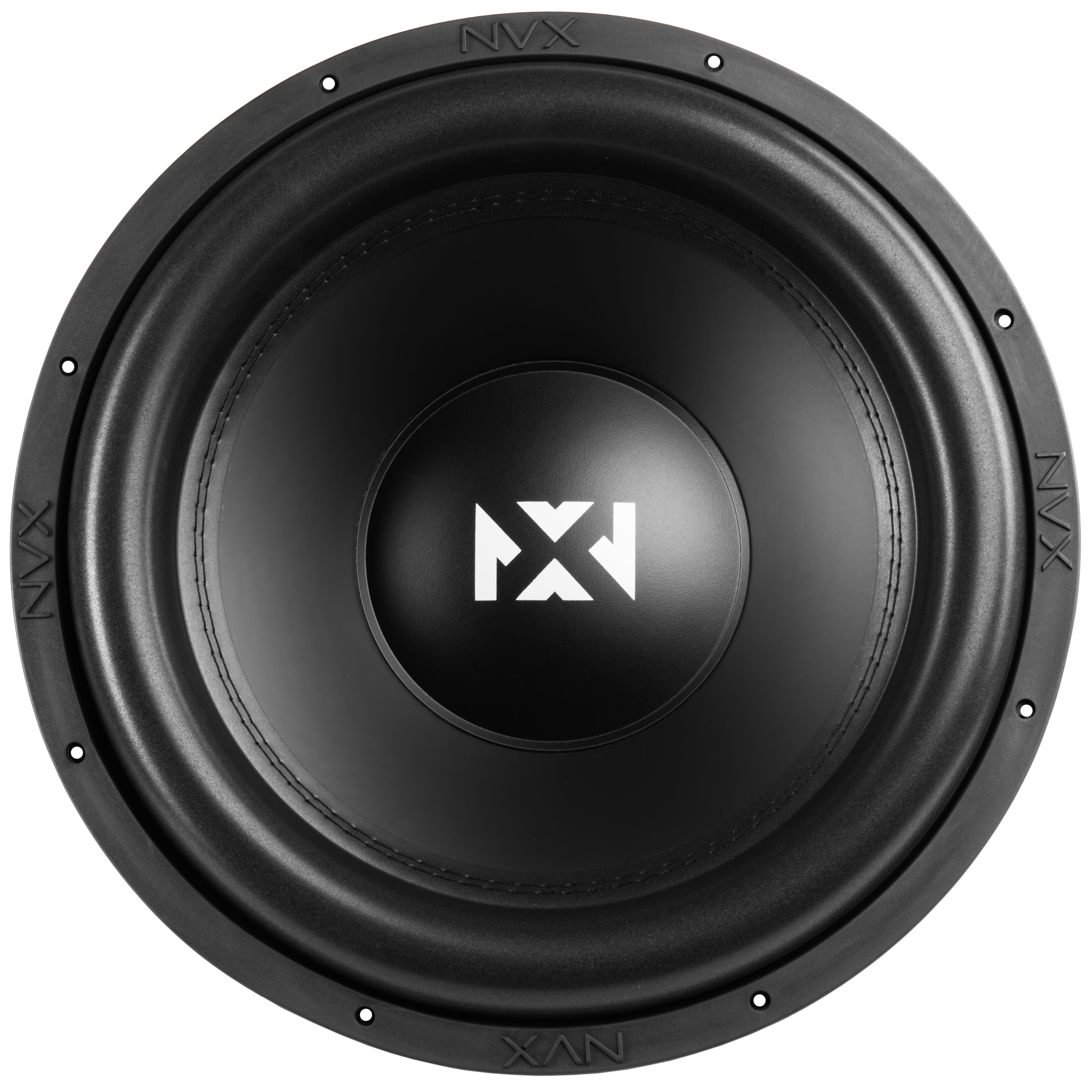

NVX YSW154
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 15″ / 381 mm |
| Resonance | 27.7 Hz |
| Q factor | 0.74 |
| Sensitivity | 84.5 dB |
| Linear excursion | ± 15 mm |
| Program power | 1600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.5dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 27.7Hz
- Mechanical quality factor QMS 5.60
- Electrical quality factor QES 0.86
- Total quality factor QTS 0.74
Large signal parameters
- Maximum linear excursion (one way) xmax 15mm
- Air volume displaced at xmax VD 1206cm³
- Power handling P 800W
- Program power Pmax 1600W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series, estimated) LE 9.58mH
Magnet
- Force factor (in series) Bl 27N/A
- Motor constant Bl/√RE 10.7N/√W
Diaphragm
- Effective diameter 320mm
- Effective area SD 804cm²
- Moving mass (including air load) MMS 560g
- Moving mass MMD 543g
Suspensions
- Stiffness KMS 16.9N/mm
- Compliance CMS 59µm/N
- Equivalent volume to the compliance VAS 54.1L
- Mechanical resistance RMS 17.4N·s/m
Dimensions
- Nominal diameter 15″
- 381mm
- Overall diameter 394mm
- Baffle cutout diameter 355mm
- Overall depth 184mm
- Flange thickness 0mm
- Mounting depth 184mm
- Volume occupied by the driver 4.53L
- Net weight 9.498kg
