P.Audio IMF HP15W V3
8Ω
Low frequency
| Nominal diameter | 15″ / 381 mm |
| Resonance | 41 Hz |
| Q factor | 0.70 |
| Sensitivity | 92.7 dB |
| Linear excursion | ± 5 mm |
| Program Power | 600 W |

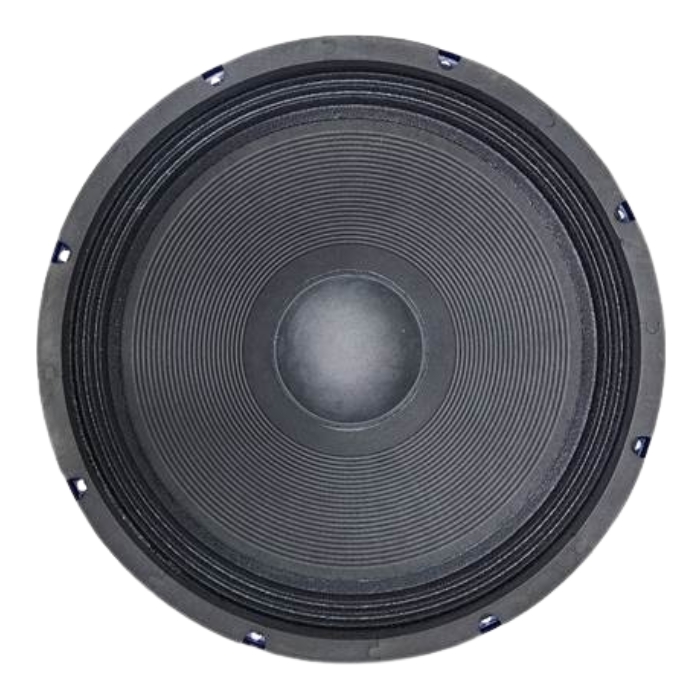

.jpg)

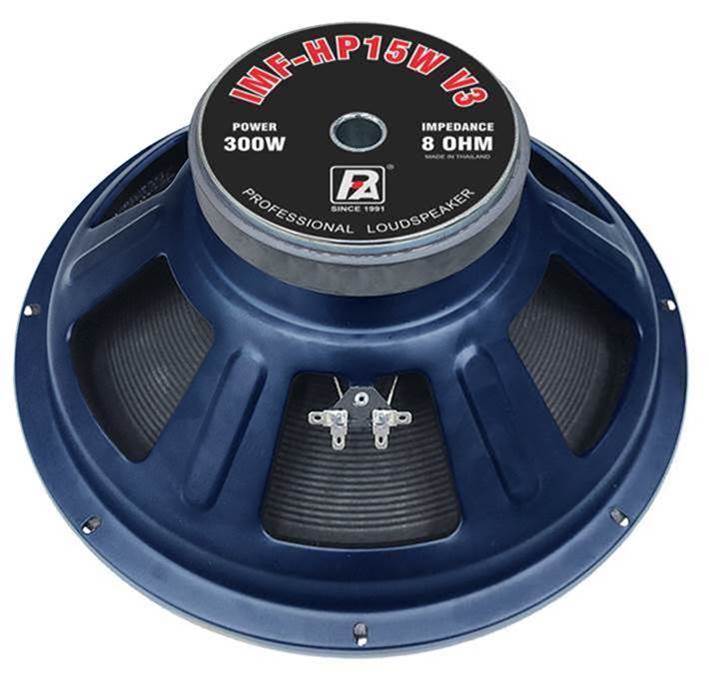

.jpg)
Specifications

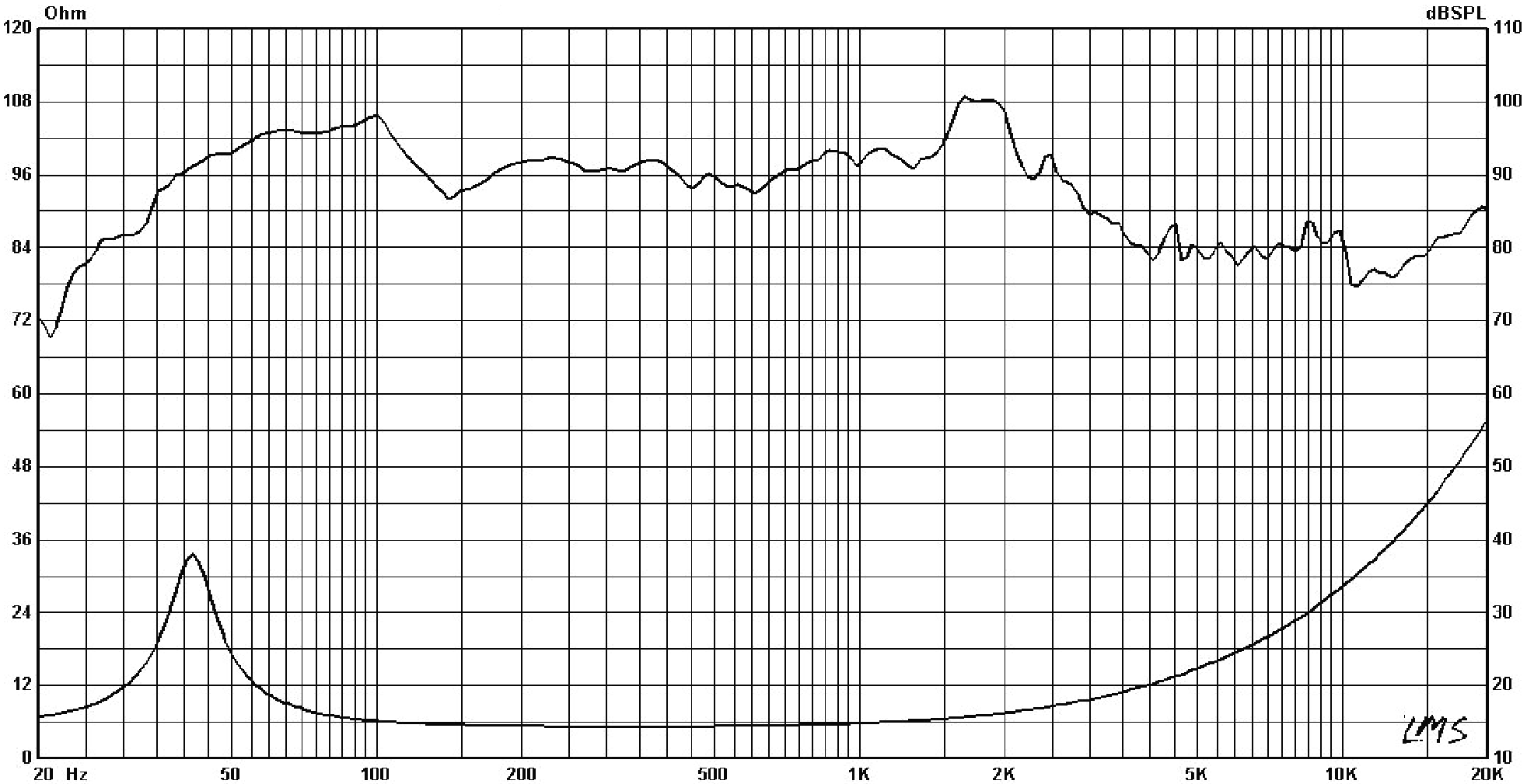

- Sensitivity (1W, 1m, infinite baffle) SPL1W 92.7dB
- Frequency response 40 - 3000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 41Hz
- Mechanical quality factor QMS 4.42
- Electrical quality factor QES 0.83
- Total quality factor QTS 0.70
Large signal parameters
- Maximum linear excursion xmax 5mm
- Air volume displaced at xmax VD 428cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.2Ω
- Inductance (1kHz) LE 0.44mH
- VC Diameter 63.7mm
- Winding height HVC 18mm
- Winding material SV-W
- Former material Aluminum
Magnet
- Flux density B 0.9T
- Force factor Bl 13.5N/A
- Motor constant Bl/√RE 5.92N/√W
- Air gap height HAG 8mm
- Material Ferrite
Diaphragm
- Effective diameter 326mm
- Effective area SD 855cm²
- Moving mass MMS 115g
- Moving mass (without air load) MMD 97.2g
- Material Paper
Suspensions
- Stiffness KMS 7.52N/mm
- Compliance CMS 133µm/N
- Equivalent volume to the compliance VAS 136L
- Mechanical resistance RMS 6.68N·s/m
- Surround material Cloth
- Spider material Single

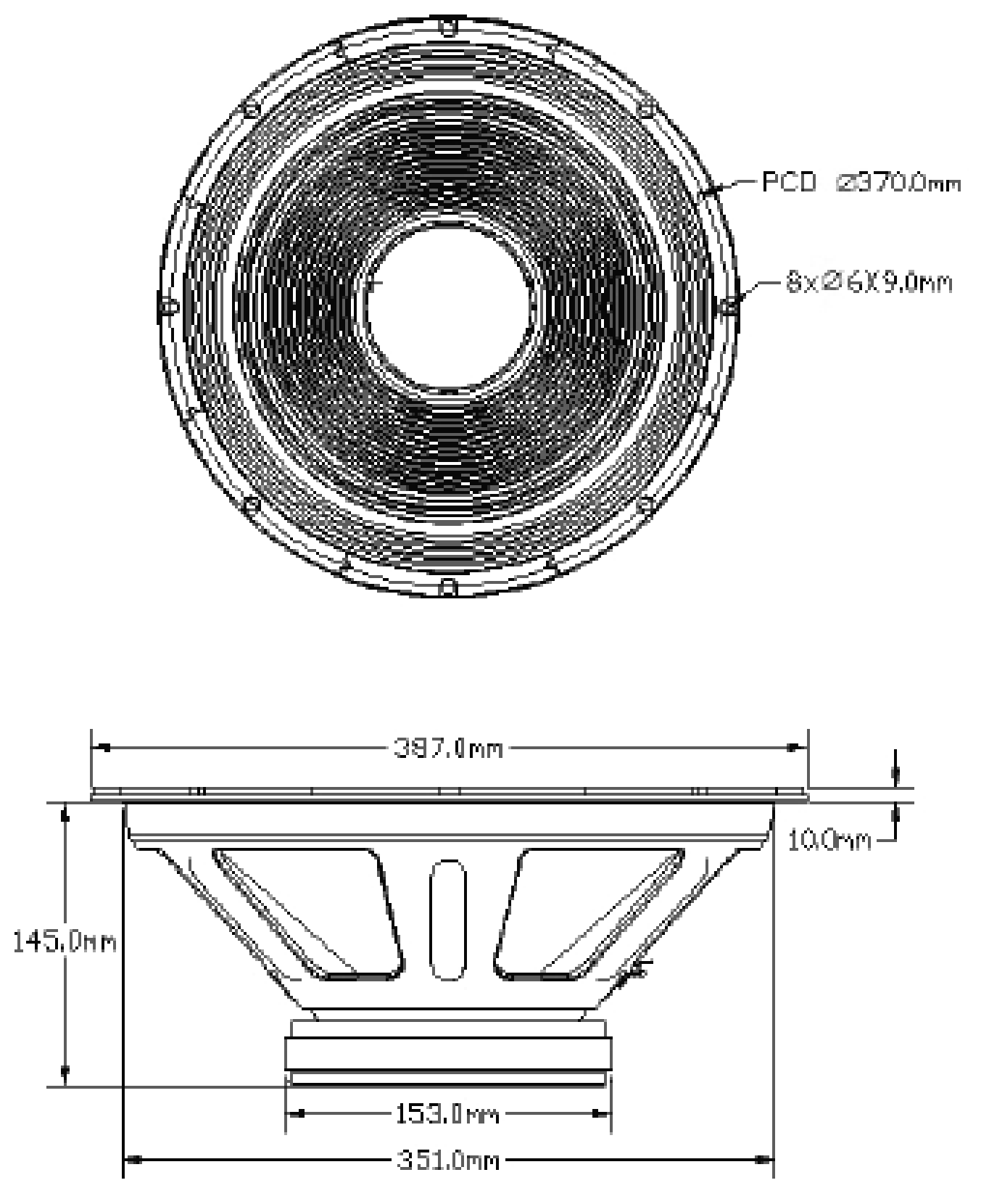

Dimensions
- Nominal diameter 15″
- 381mm
- Overall diameter 387mm
- Baffle cutout diameter 351mm
- Overall depth 155mm
- Flange thickness 10mm
- Mounting depth 145mm
- Volume occupied by the driver (estimated) 2.8L
- Net weight 4.9kg
- Frame material Heavy-duty stamp steel
