PRV Audio 10FR300
8Ω
Full-range
| Nominal diameter | 10″ / 254 mm |
| Resonance | 60.1 Hz |
| Q factor | 0.65 |
| Sensitivity | 94.3 dB |
| Linear excursion | ± 4 mm |
| Program Power | 300 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.3dB
- Frequency response 50 - 14000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 60.1Hz
- Mechanical quality factor QMS 15.57
- Electrical quality factor QES 0.68
- Total quality factor QTS 0.65
Large signal parameters
- Maximum linear excursion xmax 4mm
- Air volume displaced at xmax VD 158cm³
- Power handling P 150W
- Program power Pmax 300W
- Peak power Ppeak 600W
Voice Coil

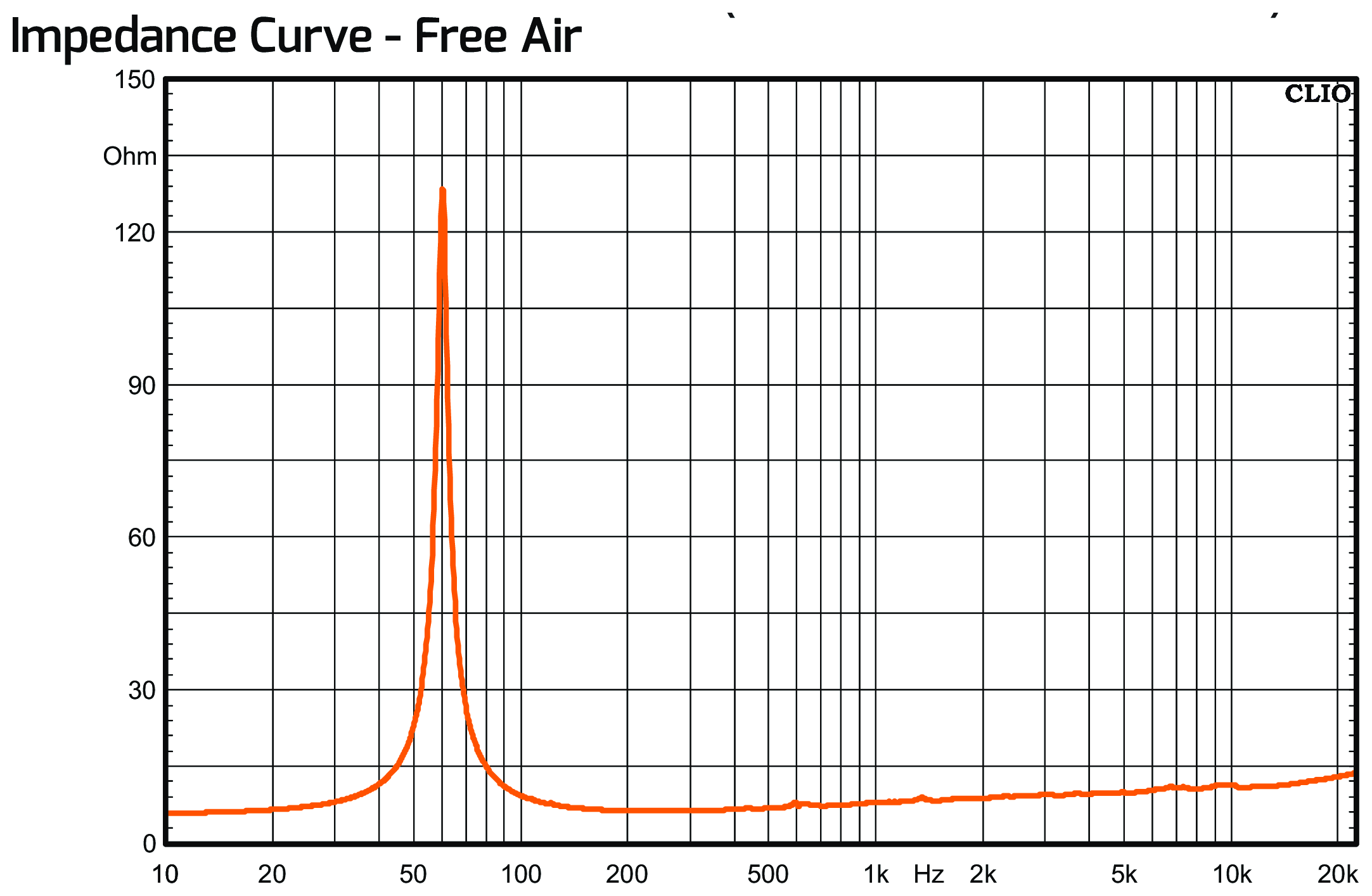

- Nominal impedance Z 8Ω
- DC resistance RE 5.4Ω
- Inductance (1kHz) LE 0.27mH
- VC Diameter 51mm
- Winding height HVC 12mm
- Winding material Copper Clad Aluminium
- Former material Kapton
Magnet
- Force factor Bl 9.78N/A
- Motor constant Bl/√RE 4.21N/√W
- Air gap height HAG 8mm
Diaphragm
- Effective diameter 224mm
- Effective area SD 394cm²
- Moving mass MMS 32.1g
- Moving mass (without air load) MMD 26.8g
Suspensions
- Stiffness KMS 4.63N/mm
- Compliance CMS 216µm/N
- Equivalent volume to the compliance VAS 47.4L
- Mechanical resistance RMS 0.78N·s/m
Dimensions
- Nominal diameter 10″
- 254mm
- Overall diameter 257mm
- Baffle cutout diameter 235mm
- Overall depth 115mm
- Flange thickness 9mm
- Mounting depth 106mm
- Volume occupied by the driver (estimated) 1.4L
- Net weight 3.27kg
- Frame material Stamped Steel
.png)
.png)
.png)
