PRV Audio 12W5000-2

2Ω
4Ω

Woofer

Nominal diameter12″ / 305 mm
Resonance86.9 Hz
Q factor0.43
Sensitivity94.4 dB
Linear excursion± 10 mm
Program Power5000 W

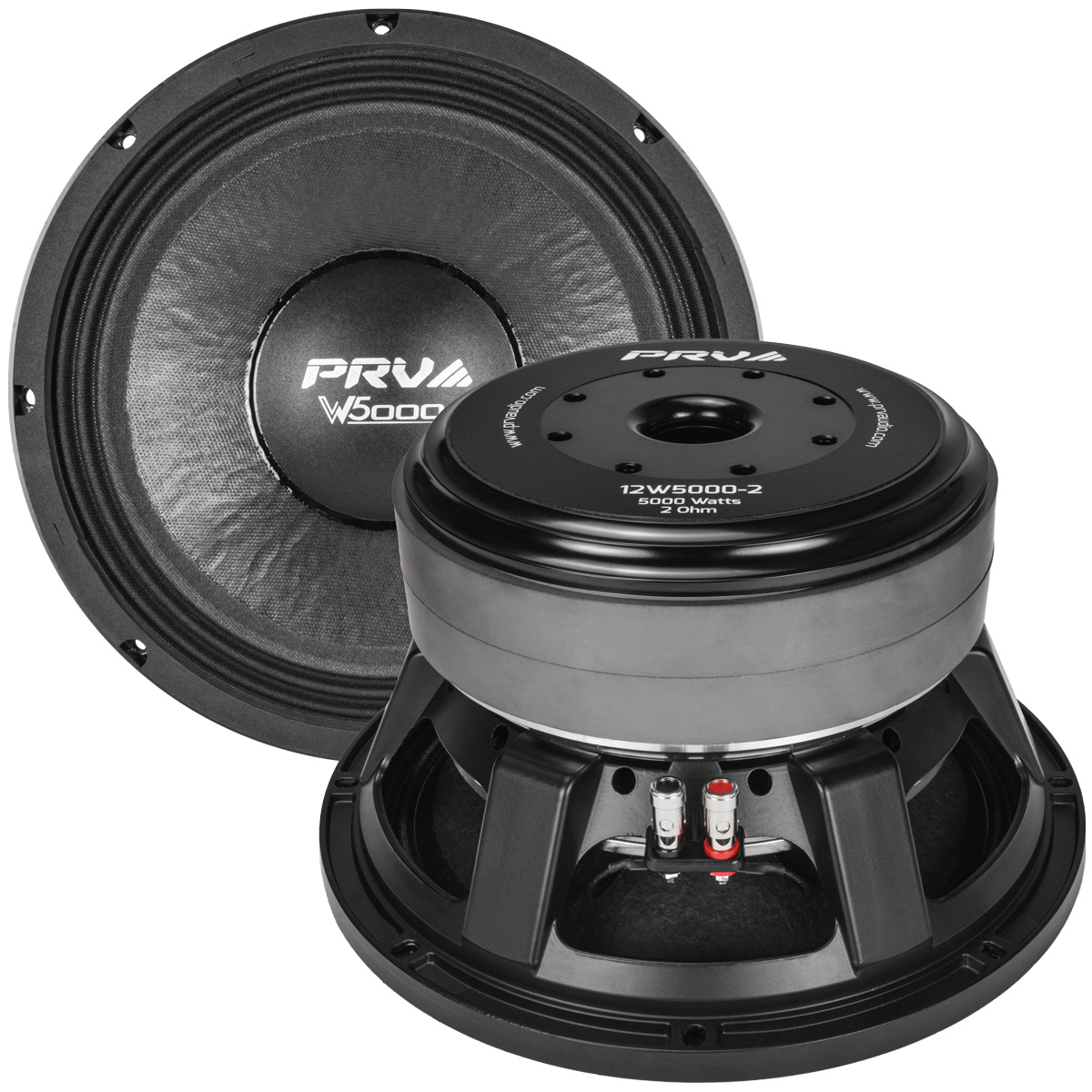

PRV Audio 12W5000-2 WooferPRV Audio 12W5000-2 WooferPRV Audio 12W5000-2 Woofer
Impedance
Excursion
Velocity
SPL
Phase
Group delay
Step response
Tone Burst
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply

Specifications

  • Sensitivity (1W, 1m, infinite baffle) SPL1W 94.4dB
  • Frequency response 60 - 800Hz

Thiele & Small parameters

  • Resonance frequency (free air) fS 86.9Hz
  • Mechanical quality factor QMS 19.19
  • Electrical quality factor QES 0.44
  • Total quality factor QTS 0.43

Large signal parameters

  • Maximum linear excursion xmax 10mm
  • Air volume displaced at xmax VD 573cm³
  • Power handling P 2500W
  • Program power Pmax 5000W
  • Peak power Ppeak 10000W

Voice Coil

  • Nominal impedance Z 2Ω
  • DC resistance RE 1.7Ω
  • Inductance (1kHz) LE 0.81mH
  • VC Diameter 100mm
  • Winding height HVC 29mm
  • Winding material Copper Clad Aluminium
  • Former material Glass Fiber

Magnet

  • Force factor Bl 17N/A
  • Motor constant Bl/√RE 13N/√W
  • Air gap height HAG 18mm

Diaphragm

  • Effective diameter 270mm
  • Effective area SD 573cm²
  • Moving mass MMS 138g
  • Moving mass (without air load) MMD 129g

Suspensions

  • Stiffness KMS 41.7N/mm
  • Compliance CMS 24µm/N
  • Equivalent volume to the compliance VAS 11.8L
  • Mechanical resistance RMS 3.94N·s/m

Dimensions

  • Nominal diameter 12″
  • 305mm
  • Overall diameter 315mm
  • Baffle cutout diameter 282mm
  • Overall depth 177mm
  • Flange thickness 16mm
  • Mounting depth 161mm
  • Volume occupied by the driver (estimated) 6.6L
  • Net weight 19.9kg
  • Frame material Die Cast Aluminium
Impedance
SPL
PRV Audio 12W5000-2 Impedance

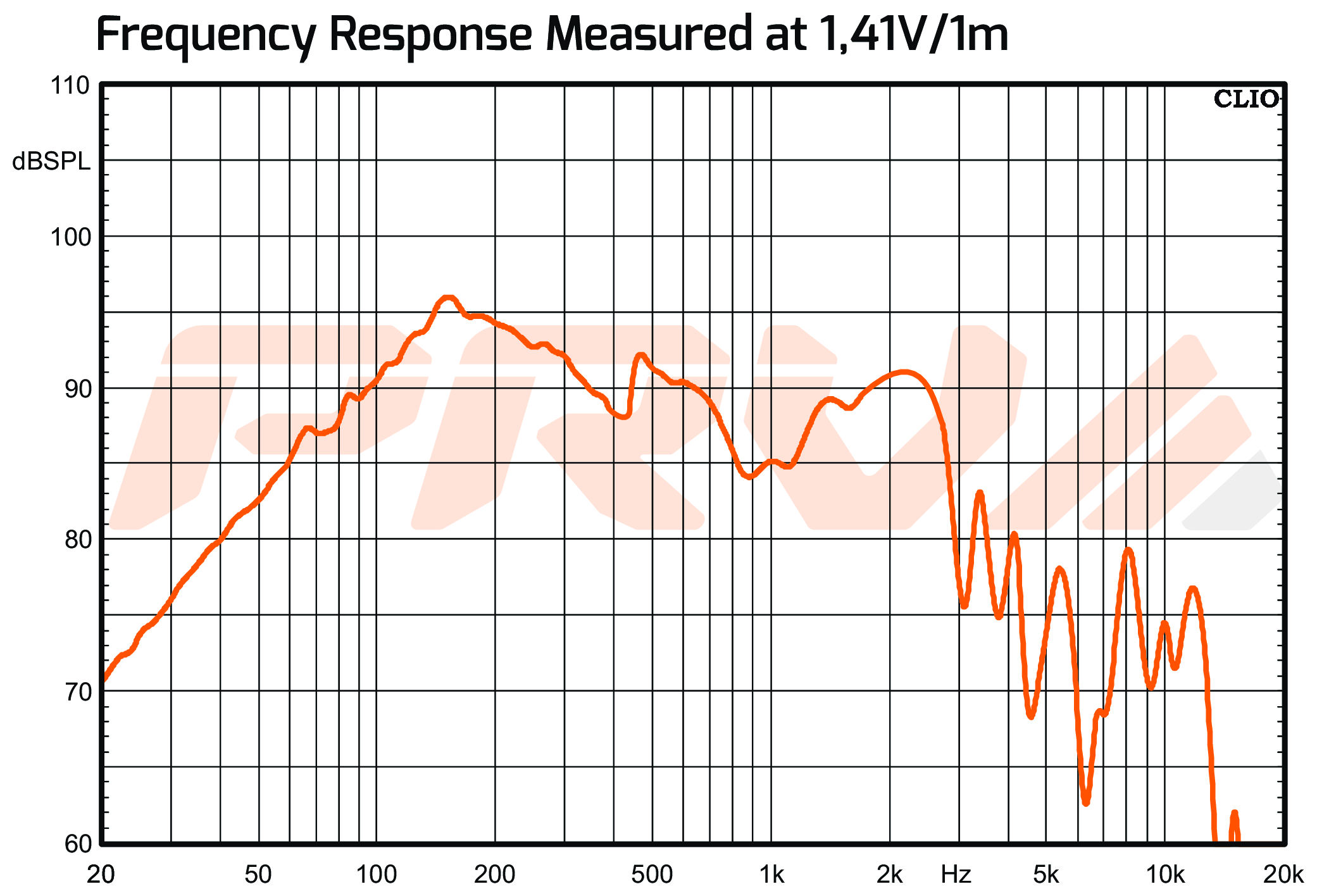

PRV Audio 12W5000-2 SPL

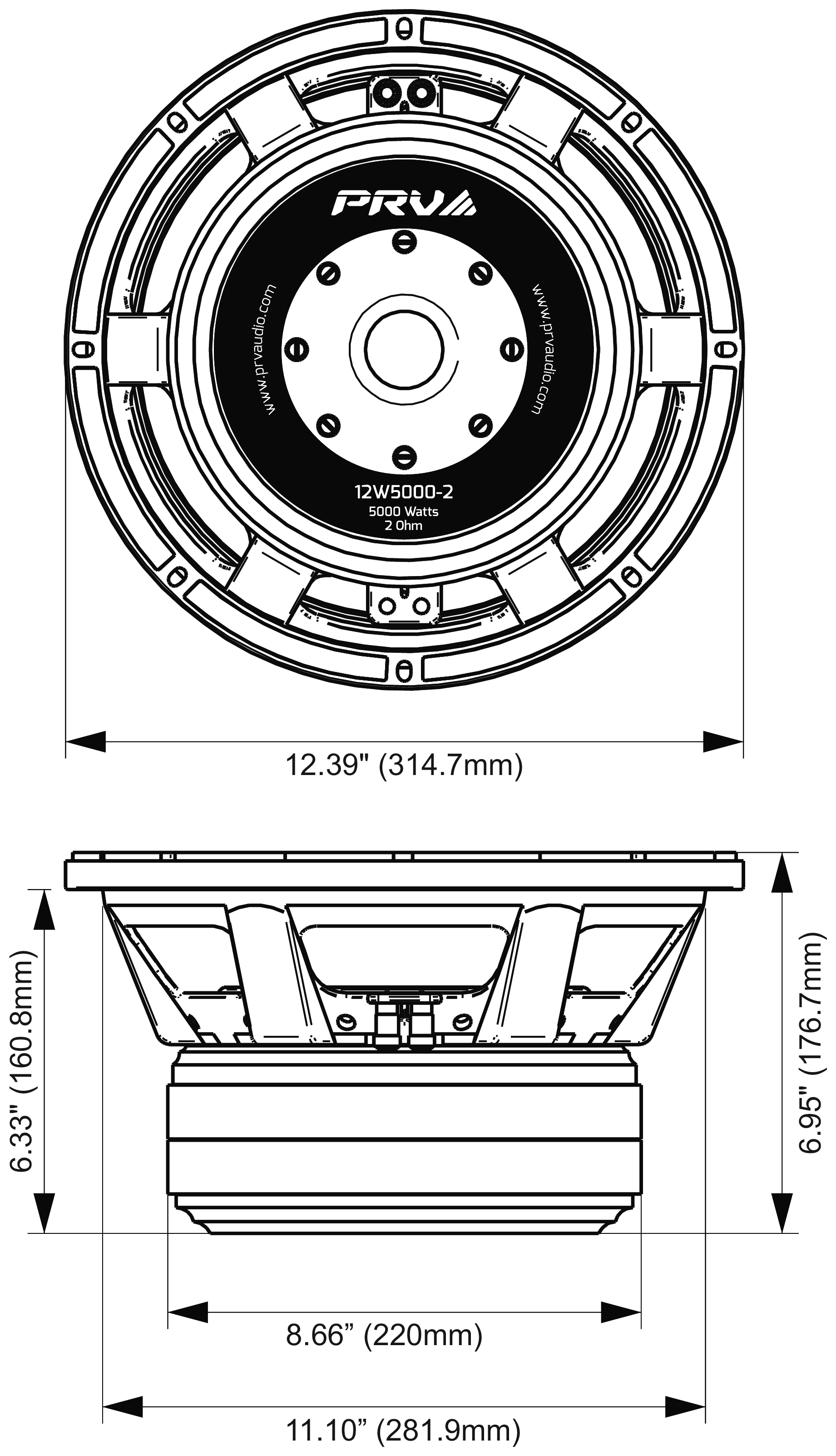

PRV Audio 12W5000-2 Dimensions
PDF fileDatasheet

Export this driver to a simulation software:

Closed Box Simulator·Speakerbench logoSpeakerbenchWinISD logoWinISDBasta! logoBasta!Hornresp logoHornrespQSpeakers logoQSpeakersSpeakerSim logoSpeakerSimMfbLabs logoMfbLabs
