Peerless PLS-50F25AL03-04
4Ω
Full-range
| Nominal diameter | 2″ / 51 mm |
| Resonance | 210 Hz |
| Q factor | 1.10 |
| Sensitivity | 82.6 dB |
| Linear excursion | ± 2.7 mm |
| Program power | 20 W |
Discontinued
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.6dB

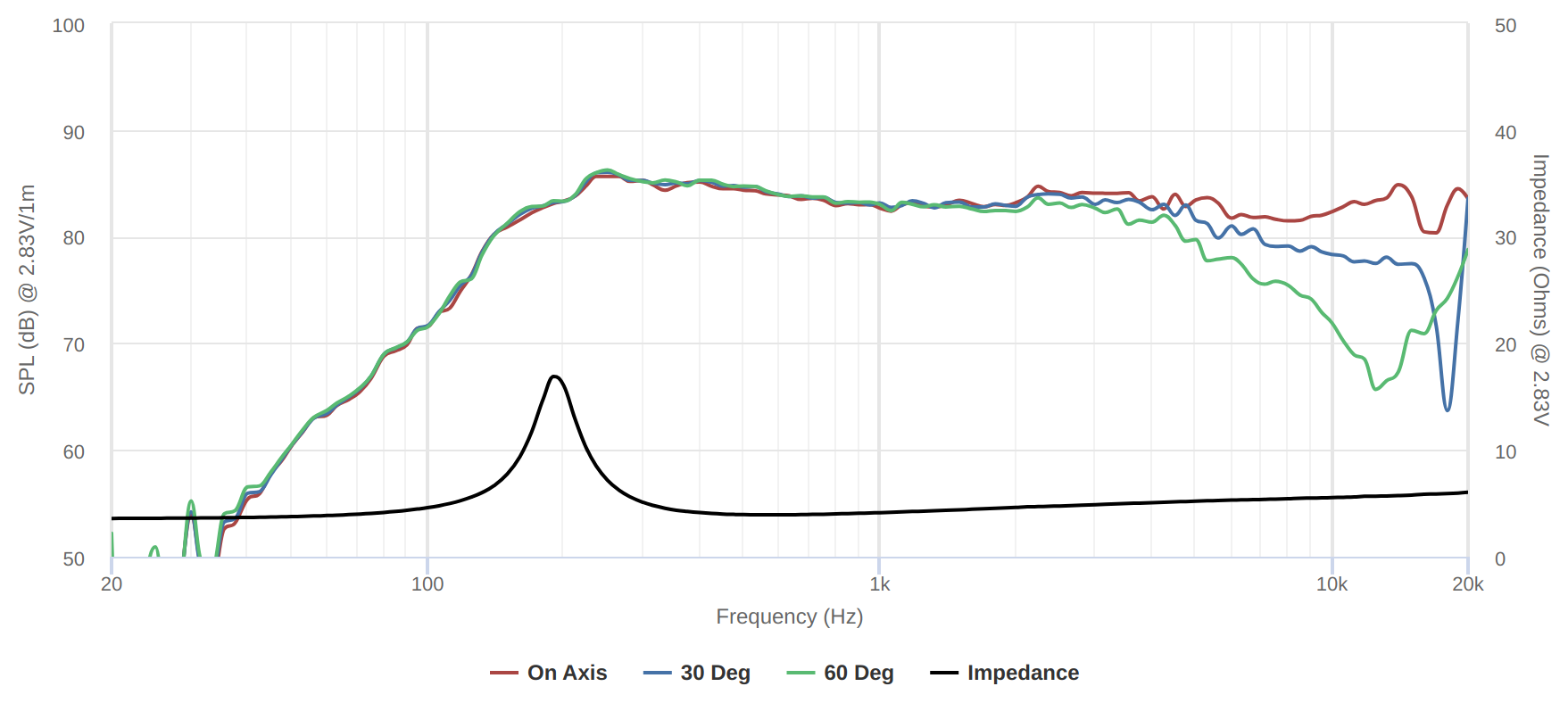

- Frequency response 150 - 20000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 210Hz
- Mechanical quality factor QMS 6.82
- Electrical quality factor QES 1.30
- Total quality factor QTS 1.10
Large signal parameters
- Maximum linear excursion (one way) xmax 2.7mm
- Air volume displaced at xmax VD 4cm³
- Power handling P 10W
- Program power Pmax 20W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.4Ω
- Inductance (1kHz) LE 0.039mH
- VC Diameter 25.7mm
Magnet
- Force factor Bl 2.38N/A
- Motor constant Bl/√RE 1.29N/√W
- Air gap height HAG 3mm
- Material Ferrite
Diaphragm
- Effective diameter 44mm
- Effective area SD 15.2cm²
- Moving mass (including air load) MMS 1.64g
- Moving mass MMD 1.6g
- Material Aluminum
Suspensions
- Stiffness KMS 2.78N/mm
- Compliance CMS 360µm/N
- Equivalent volume to the compliance VAS 0.167L
- Mechanical resistance RMS 0.32N·s/m
- Surround material Rubber

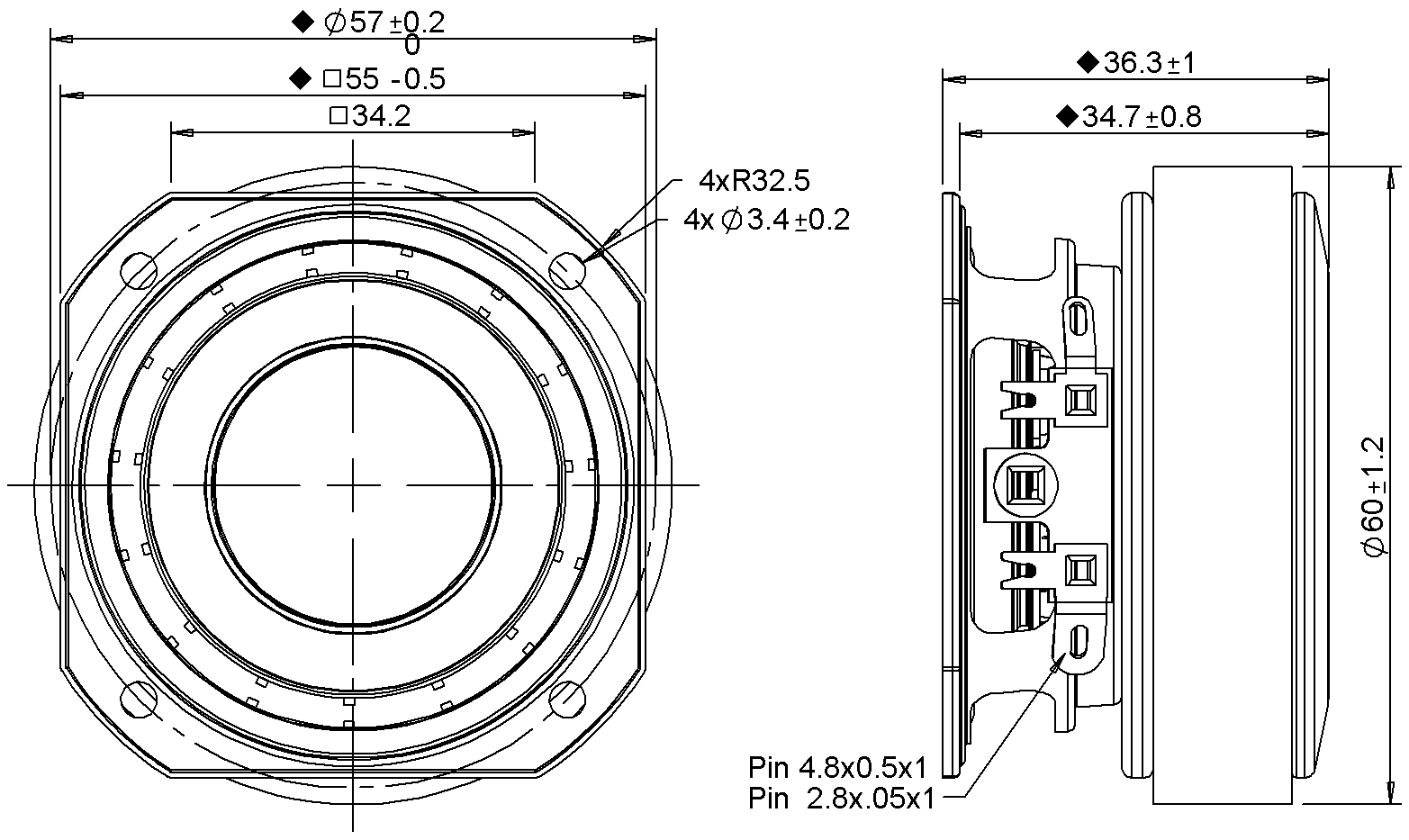

Dimensions
- Nominal diameter 2″
- 51mm
- Volume occupied by the driver (estimated) 0.12L
- Net weight 0.32kg
- Frame material Pressed Steel
.png)
.png)
