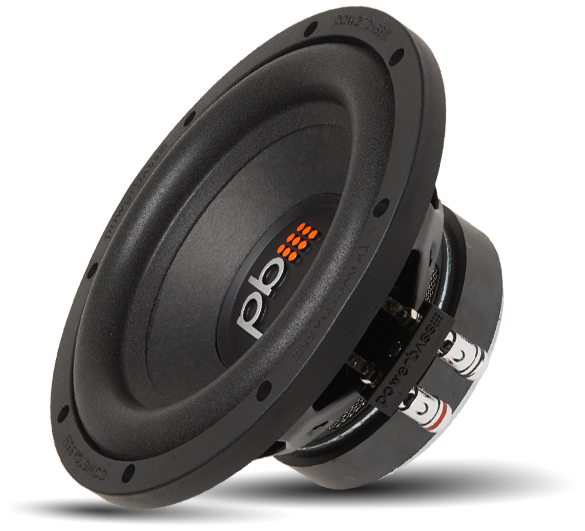

PowerBass S-84

Subwoofer

8″ / 203 mm
Nominal diameter
41 Hz
Resonance
0.43
Q factor
86 dB
Sensitivity
± 7 mm
Linear excursion
250 W
Program Power
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply

Available on (affiliate link)

Amazon.com
$$

Specifications

Sensitivity (1W, 1m, infinite baffle)
SPL1W
85.8
dB
Frequency response
41 - 800
Hz

Thiele & Small parameters

Resonance frequency (free air)
fS
41.0
Hz
Mechanical quality factor
QMS
4.85
Electrical quality factor
QES
0.47
Total quality factor
QTS
0.43

Large signal parameters

Maximum linear excursion
xmax
7.0
mm
Air volume displaced at xmax
VD
144
cm³
Power handling
P
125
W
Program power
Pmax
250
W

Voice Coil

Nominal impedance
Z
4
Ω
DC resistance
RE
3.2
Ω
Inductance (1kHz, estimated)
LE
0.48
mH
VC Diameter
38
mm

Magnet

Force factor
Bl
9.0
N/A
Motor constant
Bl/√RE
5.03
N/√W
Weight
3.29
kg

Diaphragm

Effective diameter
162
mm
Effective area
SD
206
cm²
Moving mass
MMS
49.6
g
Moving mass (without air load)
MMD
47.4
g
Material
Pressed Wool / Paper

Suspensions

Stiffness
KMS
3.16
N/mm
Compliance
CMS
317
µm/N
Equivalent volume to the compliance
VAS
19
L
Mechanical resistance
RMS
2.63
N·s/m

Dimensions

Nominal diameter
8
203
mm
Baffle cutout diameter
181
mm
Mounting depth
89
mm
Volume occupied by the driver (estimated)
0.85
L
