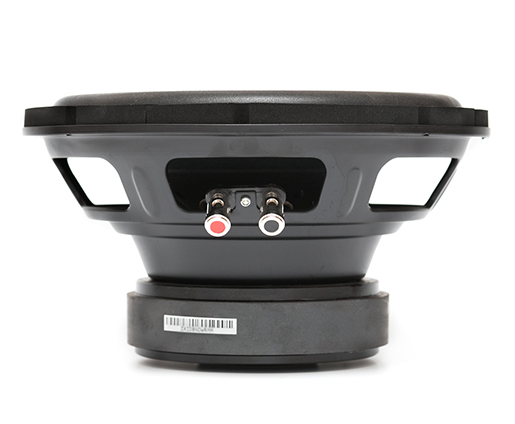

Pride Eco 10
4Ω
Subwoofer
| Nominal diameter | 10″ / 254 mm |
| Resonance | 36.4 Hz |
| Q factor | 0.60 |
| Sensitivity | 84.2 dB |
| Linear excursion | ± 14 mm |
| Program power | 600 W |
Discontinued
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.2dB
Thiele & Small parameters
- Resonance frequency (free air) fS 36.4Hz
- Mechanical quality factor QMS 4.00
- Electrical quality factor QES 0.71
- Total quality factor QTS 0.60
Large signal parameters
- Maximum linear excursion (one way) xmax 14mm
- Air volume displaced at xmax VD 472cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.3Ω
- Inductance (1kHz, estimated) LE 1.83mH
- VC Diameter 50.8mm
Magnet
- Force factor Bl 11.6N/A
- Motor constant Bl/√RE 6.39N/√W
- Weight 1.8kg
- Material Ferrite
Diaphragm
- Effective diameter 207mm
- Effective area SD 337cm²
- Moving mass (including air load) MMS 126g
- Moving mass MMD 121g
Suspensions
- Stiffness KMS 6.58N/mm
- Compliance CMS 152µm/N
- Equivalent volume to the compliance VAS 24.5L
- Mechanical resistance RMS 7.19N·s/m
Dimensions
- Nominal diameter 10″
- 254mm
- Baffle cutout diameter 236mm
- Overall depth 125mm
- Volume occupied by the driver (estimated) 1.7L
- Net weight 4.26kg
- Frame material Steel
