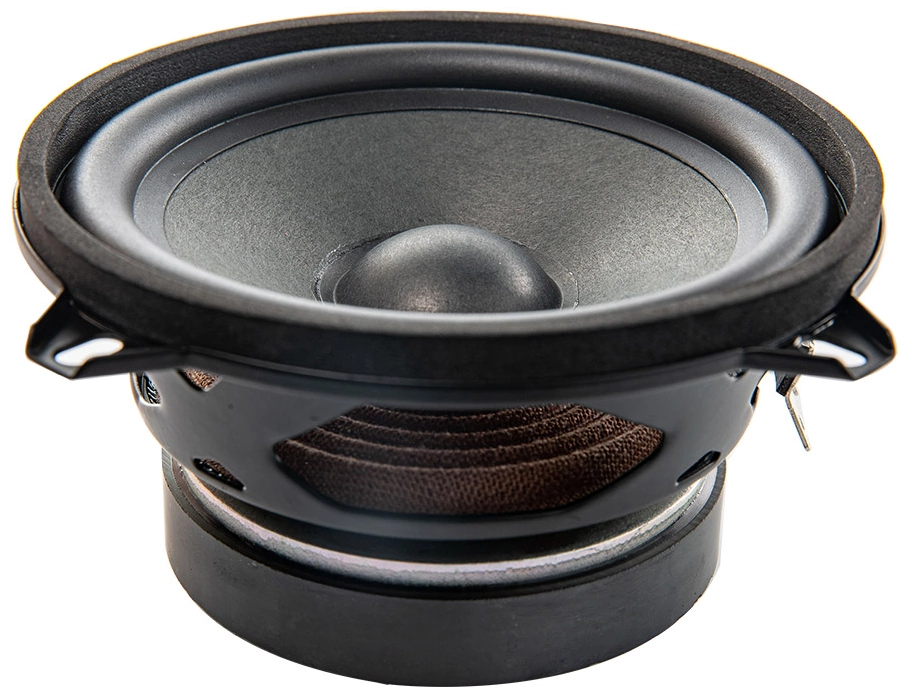

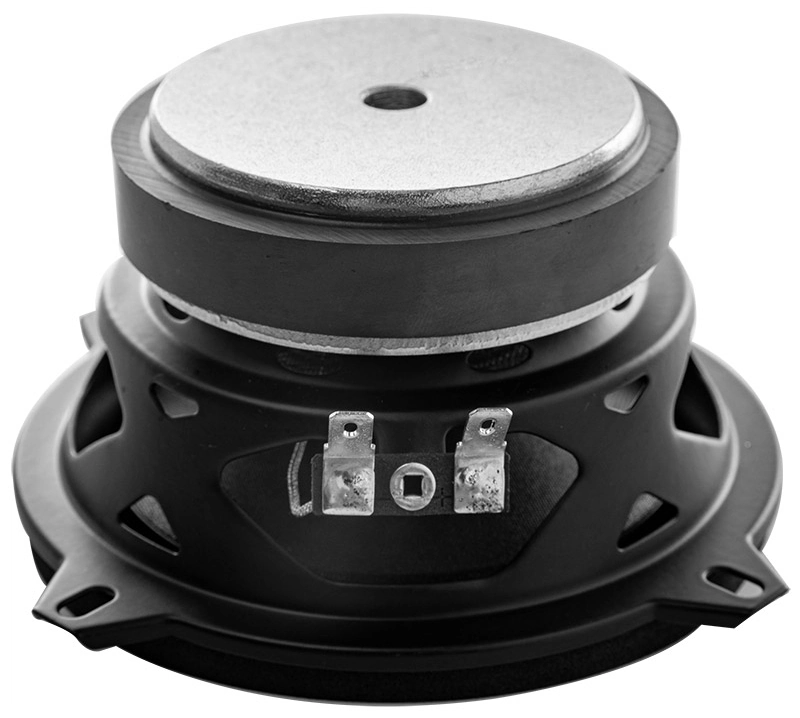

REDCATT 5FR
8Ω
Full-range
| Nominal diameter | 5″ / 131 mm |
| Resonance | 92 Hz |
| Q factor | 0.69 |
| Sensitivity | 88 dB |
| Linear excursion | ± 4.8 mm |
| Program Power | 120 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88dB
Thiele & Small parameters
- Resonance frequency (free air) fS 92Hz
- Mechanical quality factor QMS 11.40
- Electrical quality factor QES 0.73
- Total quality factor QTS 0.69
Large signal parameters
- Maximum linear excursion (one way) xmax 4.8mm
- Air volume displaced at xmax VD 43cm³
- Power handling P 60W
- Program power Pmax 120W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.6Ω
- Inductance (1kHz) LE 0.28mH
- VC Diameter 25.4mm
- Winding height HVC 9mm
- Winding material Copper
- Former material kapton
Magnet
- Force factor Bl 6.3N/A
- Motor constant Bl/√RE 2.66N/√W
- Air gap height HAG 5mm
- Material Ferrite
Diaphragm
- Effective diameter 107mm
- Effective area SD 90cm²
- Moving mass MMS 8.8g
- Moving mass (without air load) MMD 8.2g
- Material Paper
Suspensions
- Stiffness KMS 2.99N/mm
- Compliance CMS 334µm/N
- Equivalent volume to the compliance VAS 3.8L
- Mechanical resistance RMS 0.45N·s/m
- Surround material Rubber
- Spider material Nomex
Dimensions
- Nominal diameter 5″
- 131mm
- Overall diameter 131mm
- Baffle cutout diameter 114mm
- Mounting depth 61mm
- Volume occupied by the driver (estimated) 0.39L
- Net weight 0.99kg
