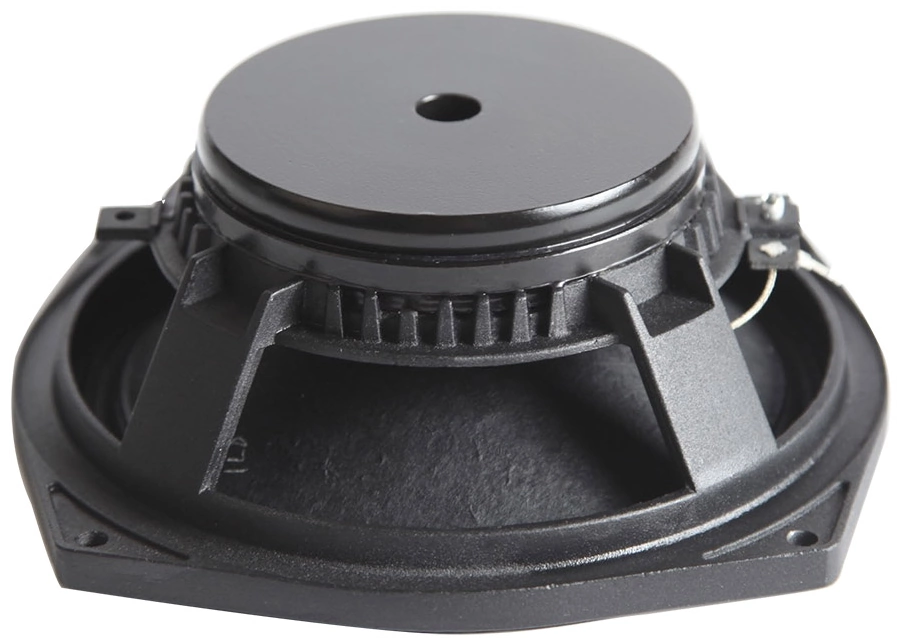

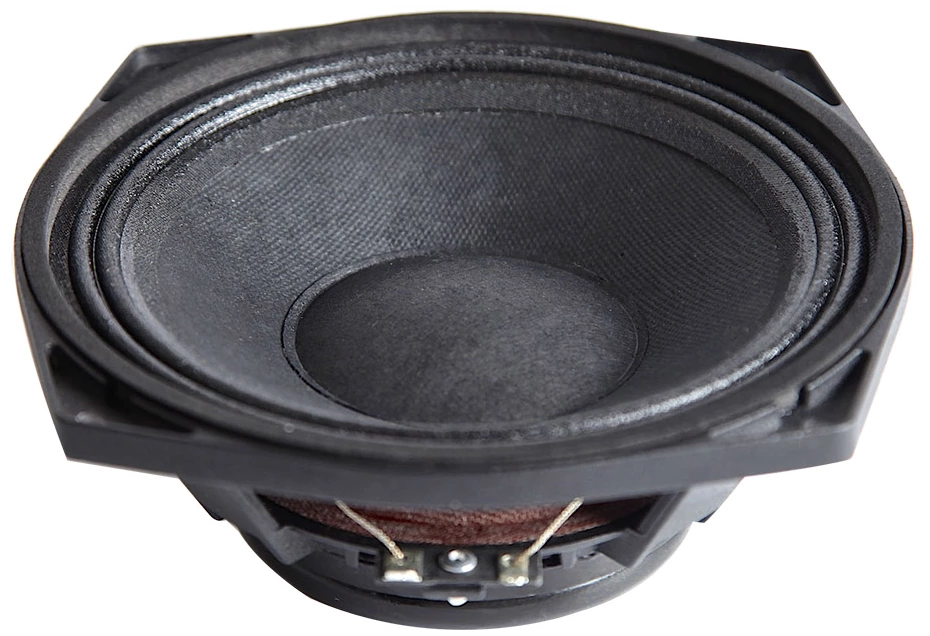

REDCATT 6NPM
8Ω
Mid-range
| Nominal diameter | 6″ / 162 mm |
| Resonance | 150 Hz |
| Q factor | 0.35 |
| Sensitivity | 96.6 dB |
| Linear excursion | ± 3.6 mm |
| Program Power | 360 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 96.6dB
Thiele & Small parameters
- Resonance frequency (free air) fS 150Hz
- Mechanical quality factor QMS 4.58
- Electrical quality factor QES 0.38
- Total quality factor QTS 0.35
Large signal parameters
- Maximum linear excursion (one way) xmax 3.6mm
- Air volume displaced at xmax VD 52cm³
- Power handling P 180W
- Program power Pmax 360W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.9Ω
- Inductance (1kHz) LE 0.16mH
- VC Diameter 44.4mm
- Winding height HVC 6.8mm
- Winding material Aluminum
- Former material kapton
Magnet
- Force factor Bl 13.7N/A
- Motor constant Bl/√RE 5.22N/√W
- Air gap height HAG 6mm
- Material Neodymium
Diaphragm
- Effective diameter 135mm
- Effective area SD 143cm²
- Moving mass MMS 11.1g
- Moving mass (without air load) MMD 9.9g
- Material Paper
Suspensions
- Stiffness KMS 9.71N/mm
- Compliance CMS 103µm/N
- Equivalent volume to the compliance VAS 2.9L
- Mechanical resistance RMS 2.28N·s/m
- Surround material Fabric
- Spider material Nomex
Dimensions
- Nominal diameter 6″
- 162mm
- Overall diameter 162mm
- Baffle cutout diameter 145mm
- Mounting depth 53mm
- Volume occupied by the driver (estimated) 0.48L
- Net weight 1.2kg

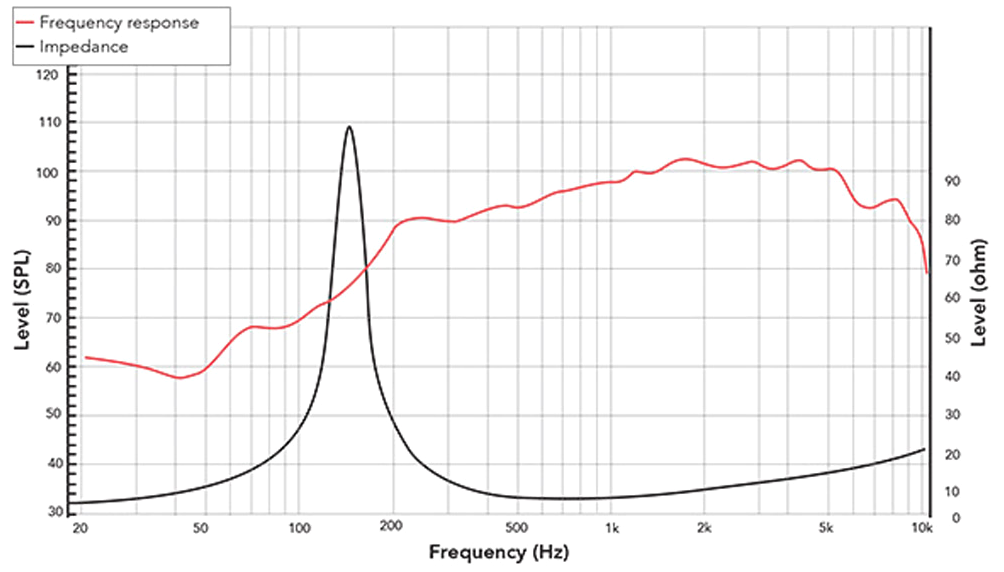

.webp)
.webp)
