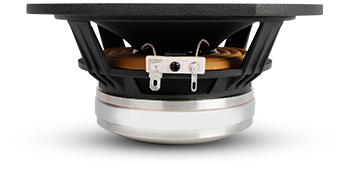

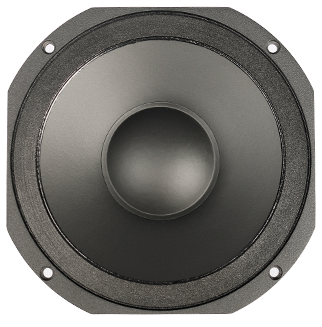

SB Audience NERO-6MRN150D
8Ω
Woofer
| Nominal diameter | 6″ / 163 mm |
| Resonance | 200 Hz |
| Q factor | 0.48 |
| Sensitivity | 94.2 dB |
| Linear excursion | ± 3.4 mm |
| Program Power | 300 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.2dB

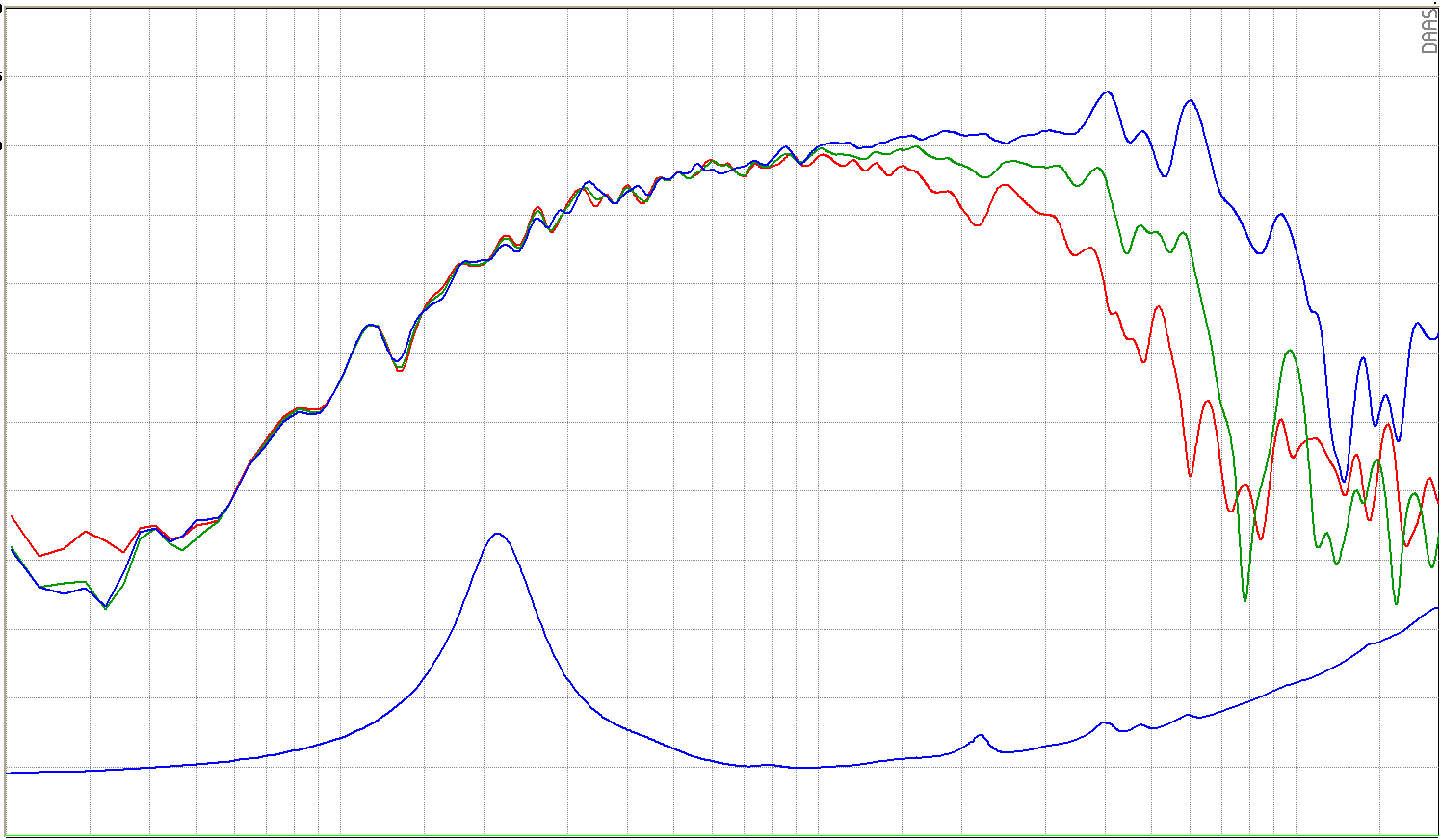

- Frequency response 200 - 10600Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 200Hz
- Mechanical quality factor QMS 2.96
- Electrical quality factor QES 0.58
- Total quality factor QTS 0.48
Large signal parameters
- Maximum linear excursion (one way) xmax 3.4mm
- Maximum excursion before damage xlim 4mm
- Air volume displaced at xmax VD 47cm³
- Power handling P 150W
- Program power Pmax 300W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.6Ω
- Inductance (1kHz) LE 0.28mH
- VC Diameter 49.5mm
- Winding height HVC 8.9mm
- Winding material Copper clad aluminium
- Former material Till
Magnet
- Flux density B 1.74T
- Force factor Bl 13.1N/A
- Motor constant Bl/√RE 5.54N/√W
- Air gap height HAG 6mm
- Material Neodymium
Diaphragm
- Effective diameter 132mm
- Effective area SD 137cm²
- Moving mass MMS 13.8g
- Moving mass (without air load) MMD 12.6g
- Material Proprietary cone paper material with graphite
Suspensions
- Stiffness KMS 25N/mm
- Compliance CMS 40µm/N
- Equivalent volume to the compliance VAS 1.1L
- Mechanical resistance RMS 6N·s/m
- Surround material Flat foam
Dimensions
- Nominal diameter 6″
- 163mm
- Overall diameter 163mm
- Baffle cutout diameter 148mm
- Overall depth 79mm
- Flange thickness 8mm
- Mounting depth 73mm
- Volume occupied by the driver 0.44L
- Net weight 1.6kg
- Frame material Aluminium die cast
.png)
.png)
