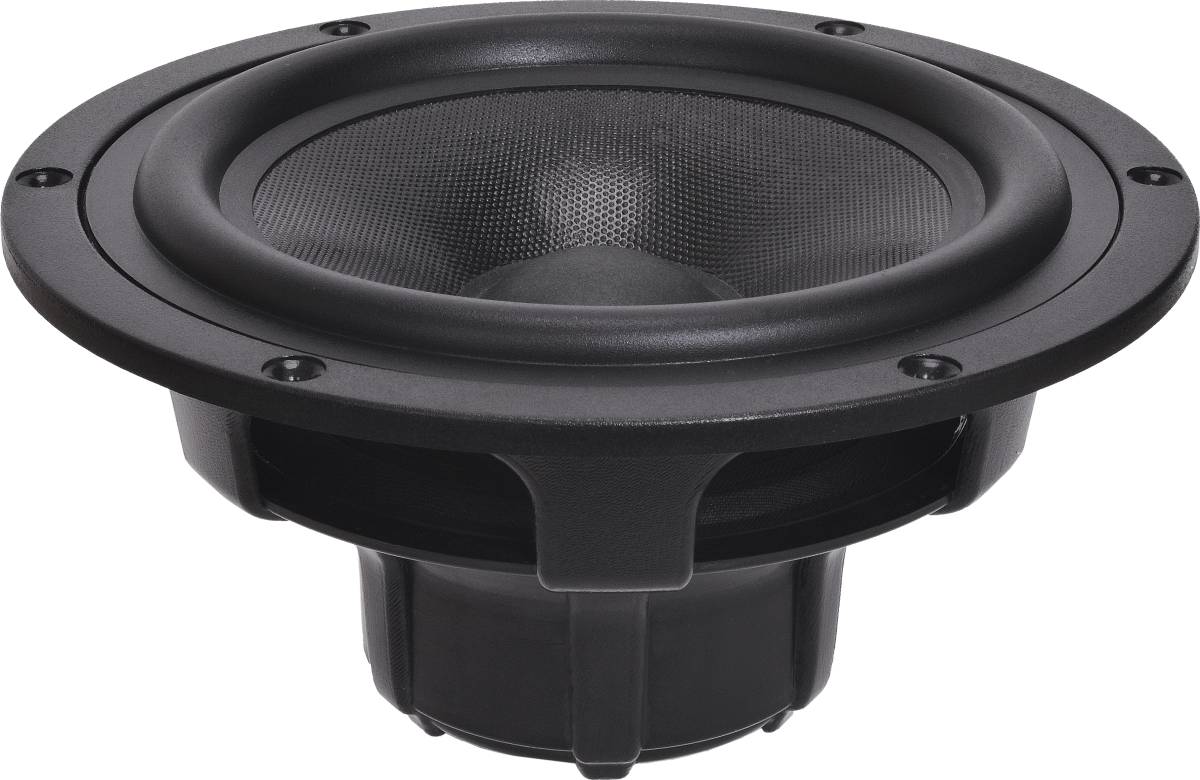

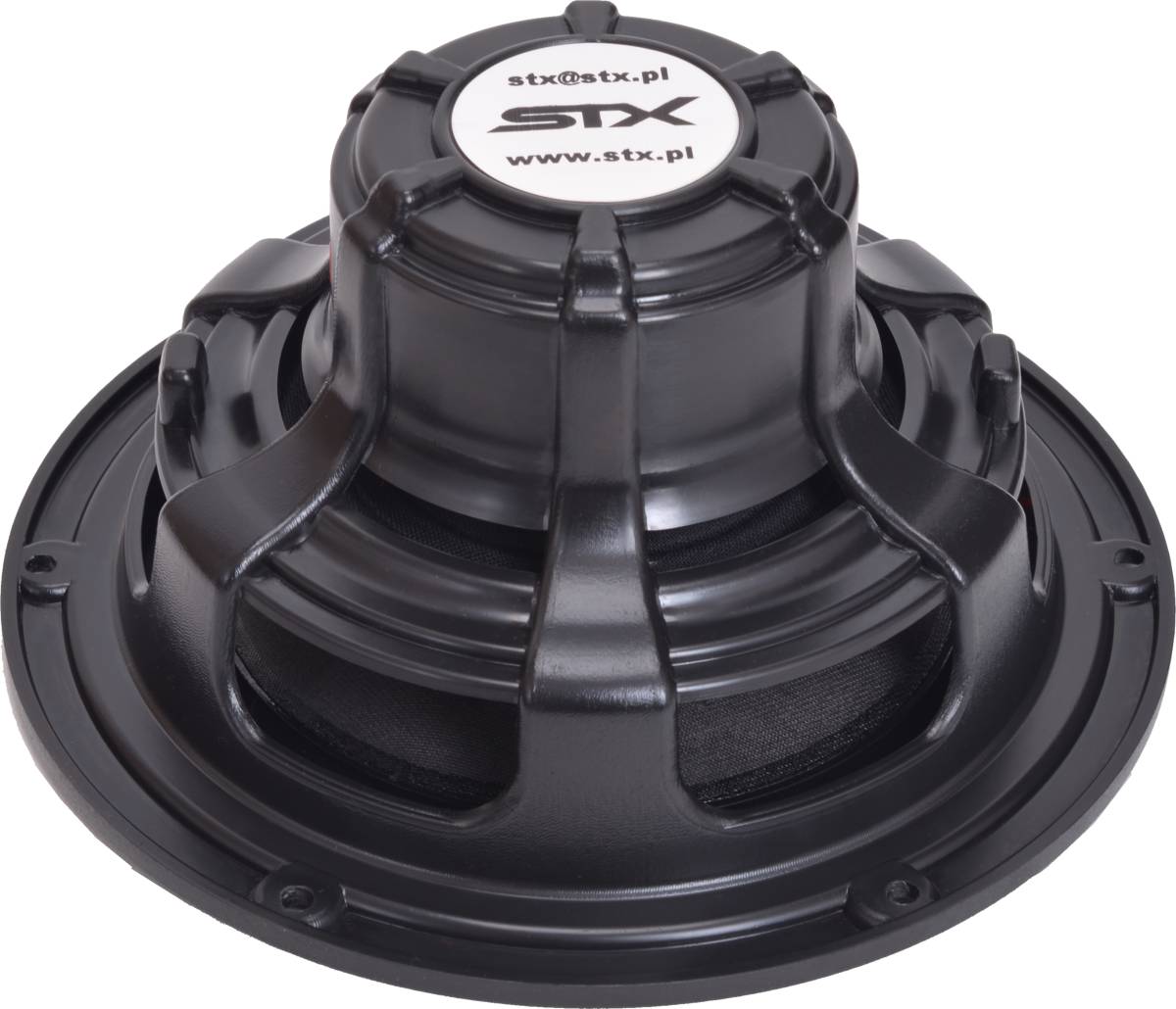

STX M.18.140.8.MC
8Ω
Mid-range
| Nominal diameter | 8″ / 180 mm |
| Resonance | 53 Hz |
| Q factor | 0.67 |
| Sensitivity | 87.4 dB |
| Linear excursion | ± 1.5 mm |
| Program power | 140 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.4dB

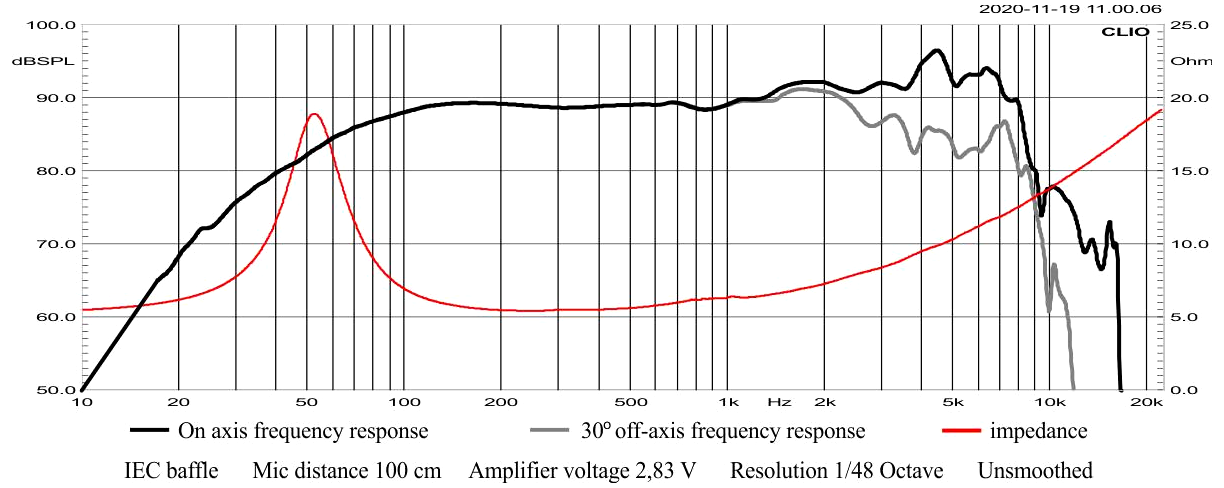

- Frequency response 70 - 10000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 53Hz
- Mechanical quality factor QMS 2.52
- Electrical quality factor QES 0.91
- Total quality factor QTS 0.67
Large signal parameters
- Maximum linear excursion (one way) xmax 1.5mm
- Maximum excursion before damage xlim 7.5mm
- Air volume displaced at xmax VD 22cm³
- Power handling P 70W
- Program power Pmax 140W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.0Ω
- Inductance (1kHz) LE 0.22mH
- VC Diameter 25mm
- Winding material Copper
- Former material Aluminium
Magnet
- Force factor Bl 4.6N/A
- Motor constant Bl/√RE 2.06N/√W
- Material Ferrite
Diaphragm
- Effective diameter 135mm
- Effective area SD 143cm²
- Moving mass (including air load) MMS 11.5g
- Moving mass MMD 10.2g
- Material Modified cellulose
Suspensions
- Stiffness KMS 1.25N/mm
- Compliance CMS 800µm/N
- Equivalent volume to the compliance VAS 23L
- Mechanical resistance RMS 1.52N·s/m

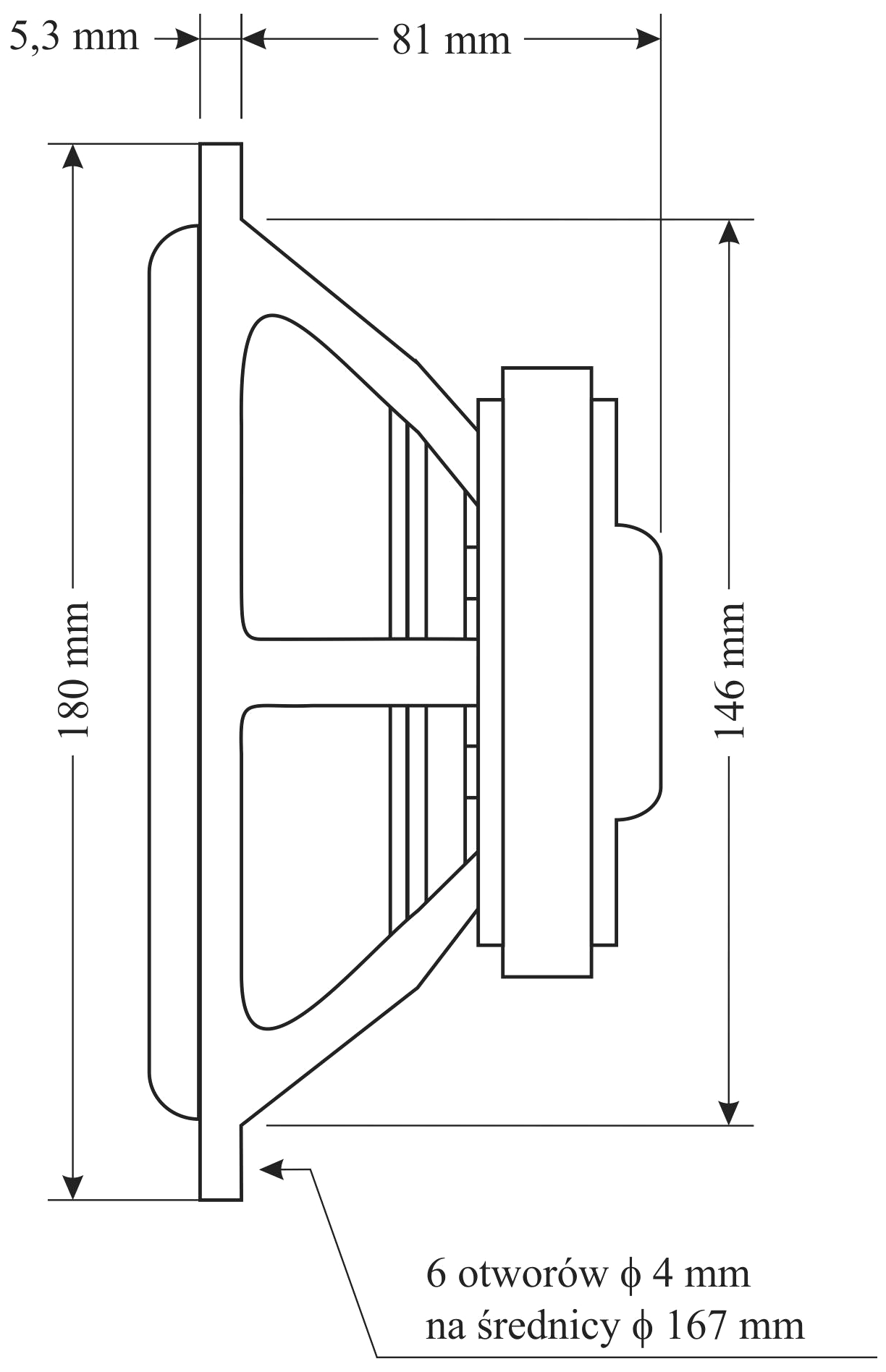

Dimensions
- Nominal diameter 8″
- 180mm
- Overall diameter 180mm
- Baffle cutout diameter 146mm
- Overall depth 87mm
- Volume occupied by the driver (estimated) 0.4L
- Net weight 0.9kg
- Frame material ABS
.webp)
.webp)
