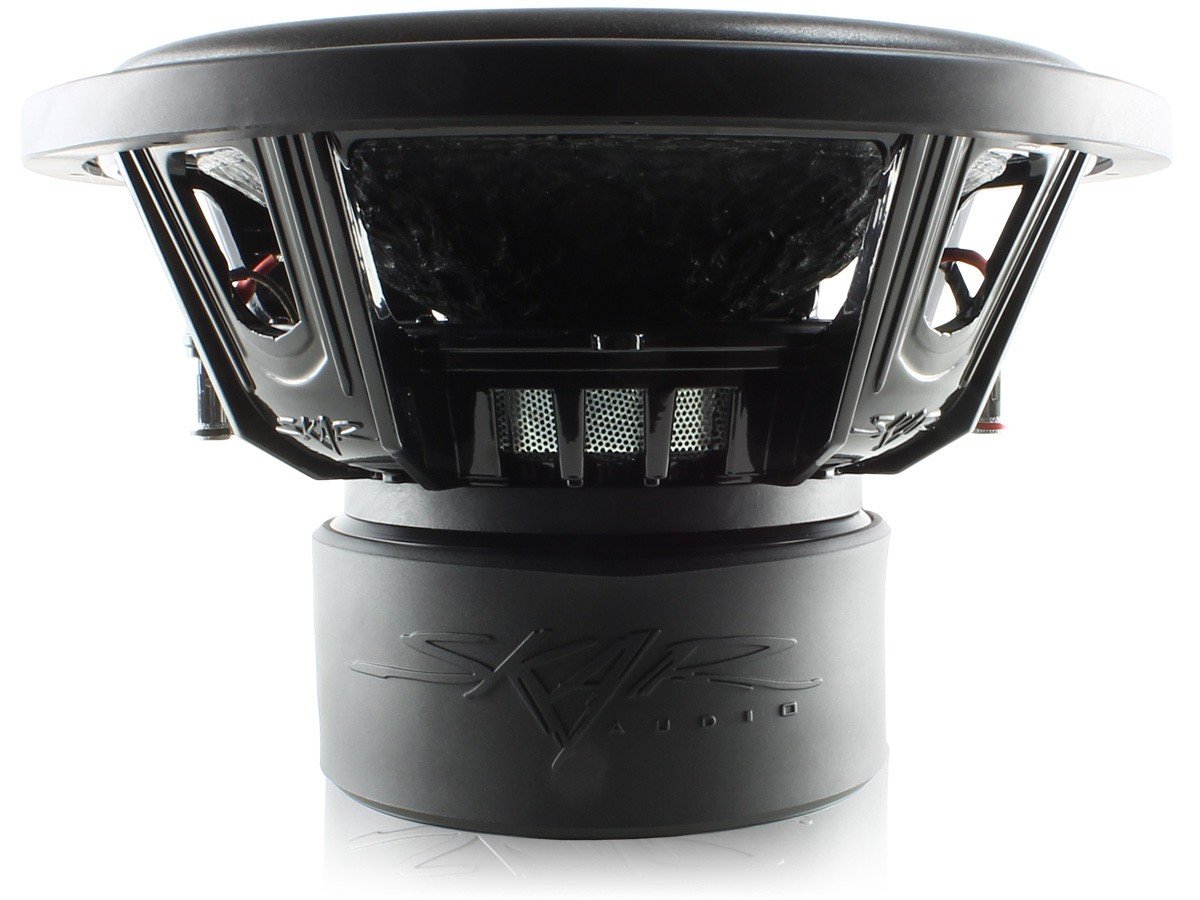

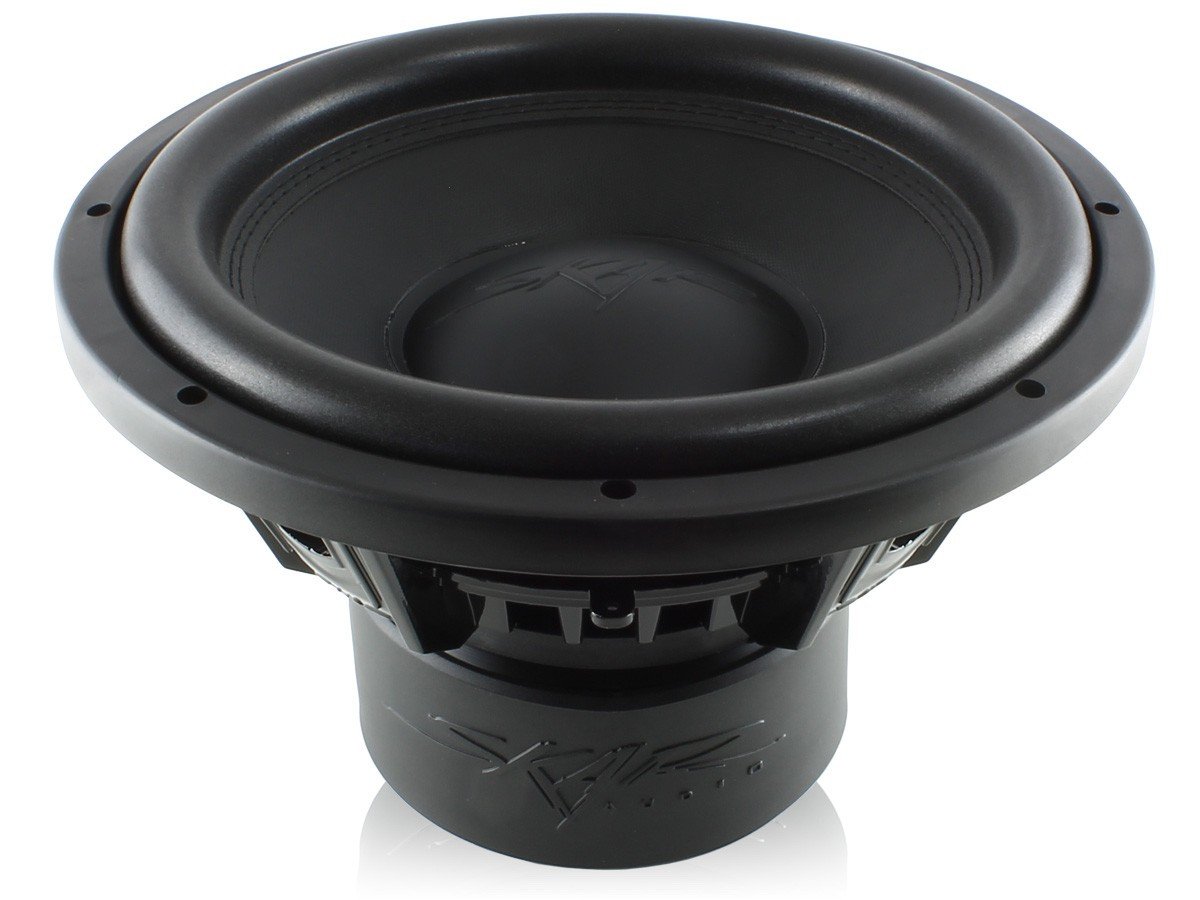

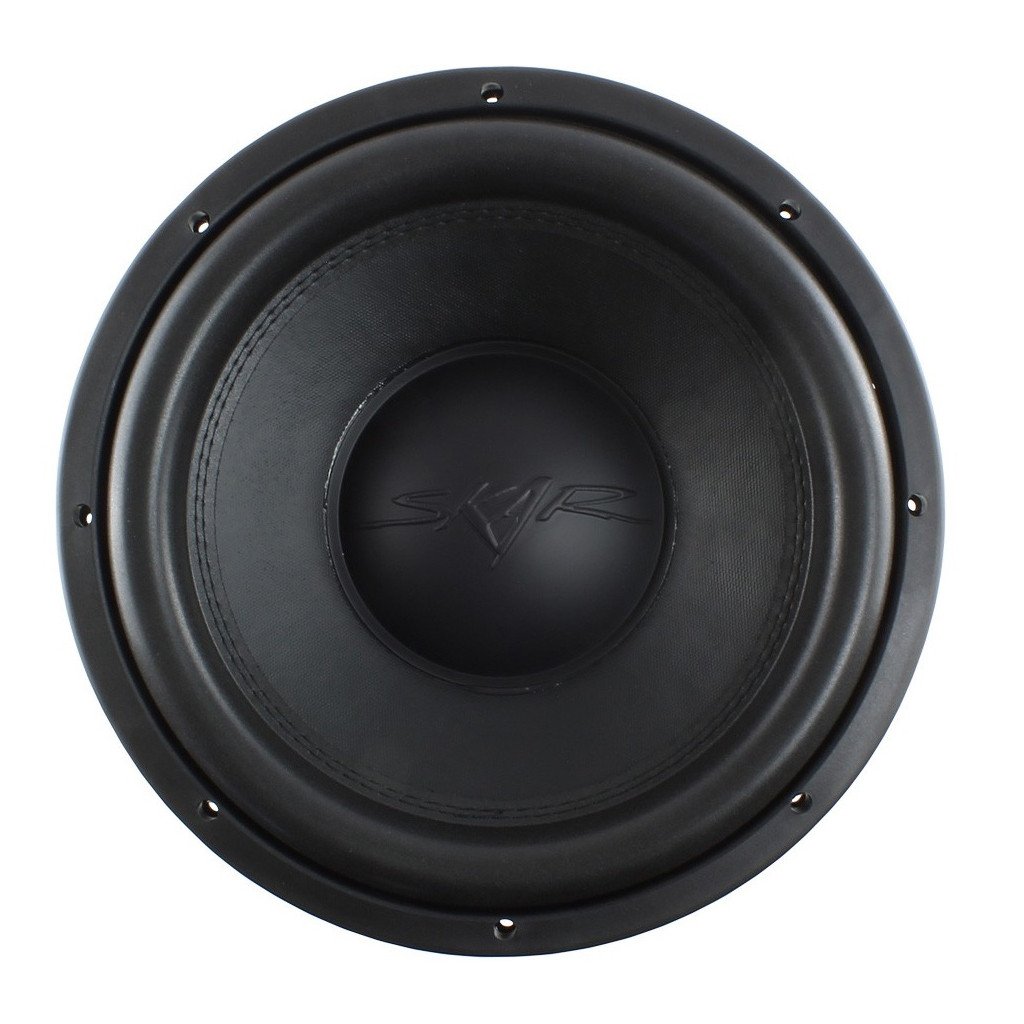

Skar Audio VVX-12v2 D2
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 12″ / 305 mm |
| Resonance | 38.3 Hz |
| Q factor | 0.41 |
| Sensitivity | 84.1 dB |
| Linear excursion | ± 18 mm |
| Program power | 1200 W |
Discontinued
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.1dB
- Frequency response 35 - 450Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 38.3Hz
- Mechanical quality factor QMS 4.52
- Electrical quality factor QES 0.52
- Total quality factor QTS 0.41
Large signal parameters
- Maximum linear excursion (one way) xmax 18mm
- Air volume displaced at xmax VD 821cm³
- Power handling P 600W
- Program power Pmax 1200W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series, estimated) LE 3.32mH
- VC Diameter 64mm
Magnet
- Force factor (in series) Bl 18.9N/A
- Motor constant Bl/√RE 9.96N/√W
- Diameter 165mm
Diaphragm
- Effective diameter 241mm
- Effective area SD 456cm²
- Moving mass (including air load) MMS 270g
- Moving mass MMD 263g
Suspensions
- Stiffness KMS 12.5N/mm
- Compliance CMS 80µm/N
- Equivalent volume to the compliance VAS 23.6L
- Mechanical resistance RMS 14.4N·s/m
Dimensions
- Nominal diameter 12″
- 305mm
- Baffle cutout diameter 284mm
- Mounting depth 183mm
- Volume occupied by the driver 4.2L
