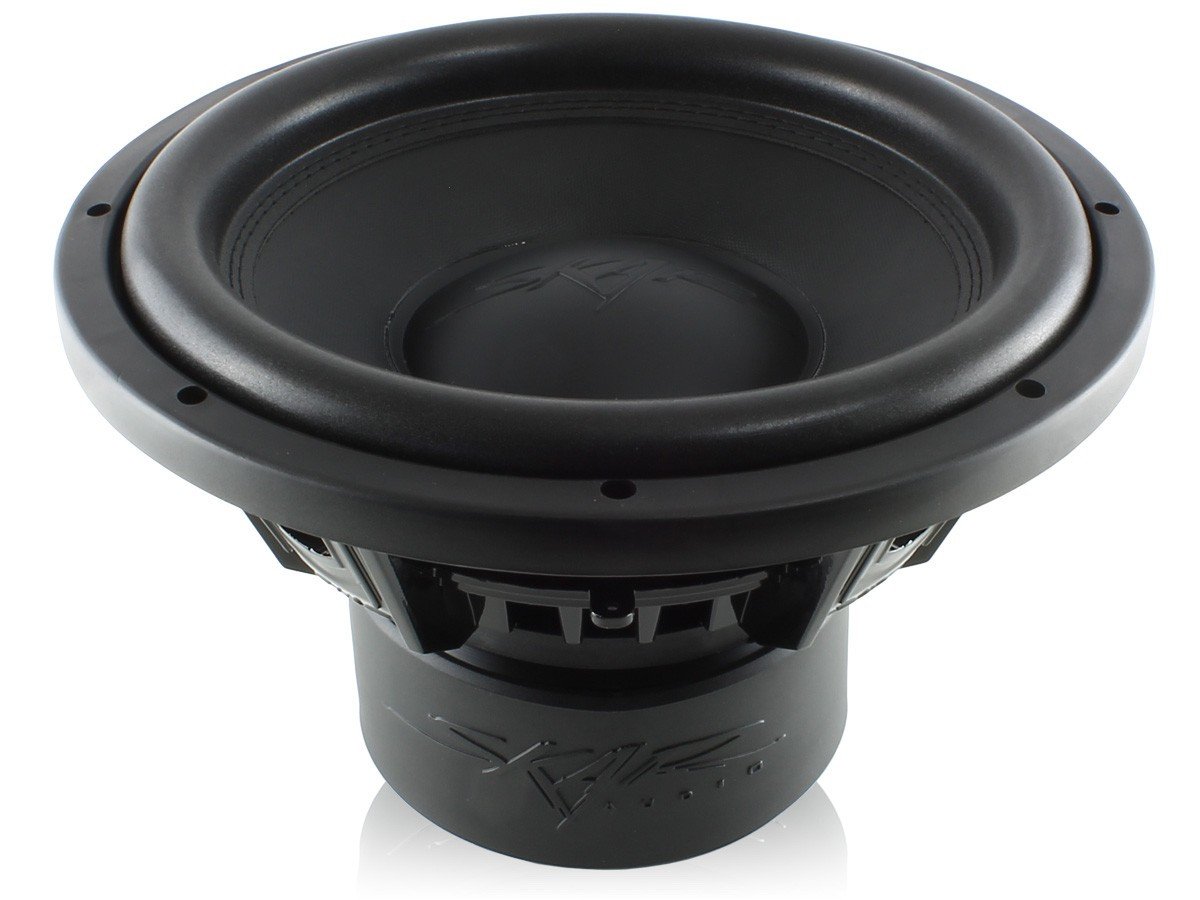

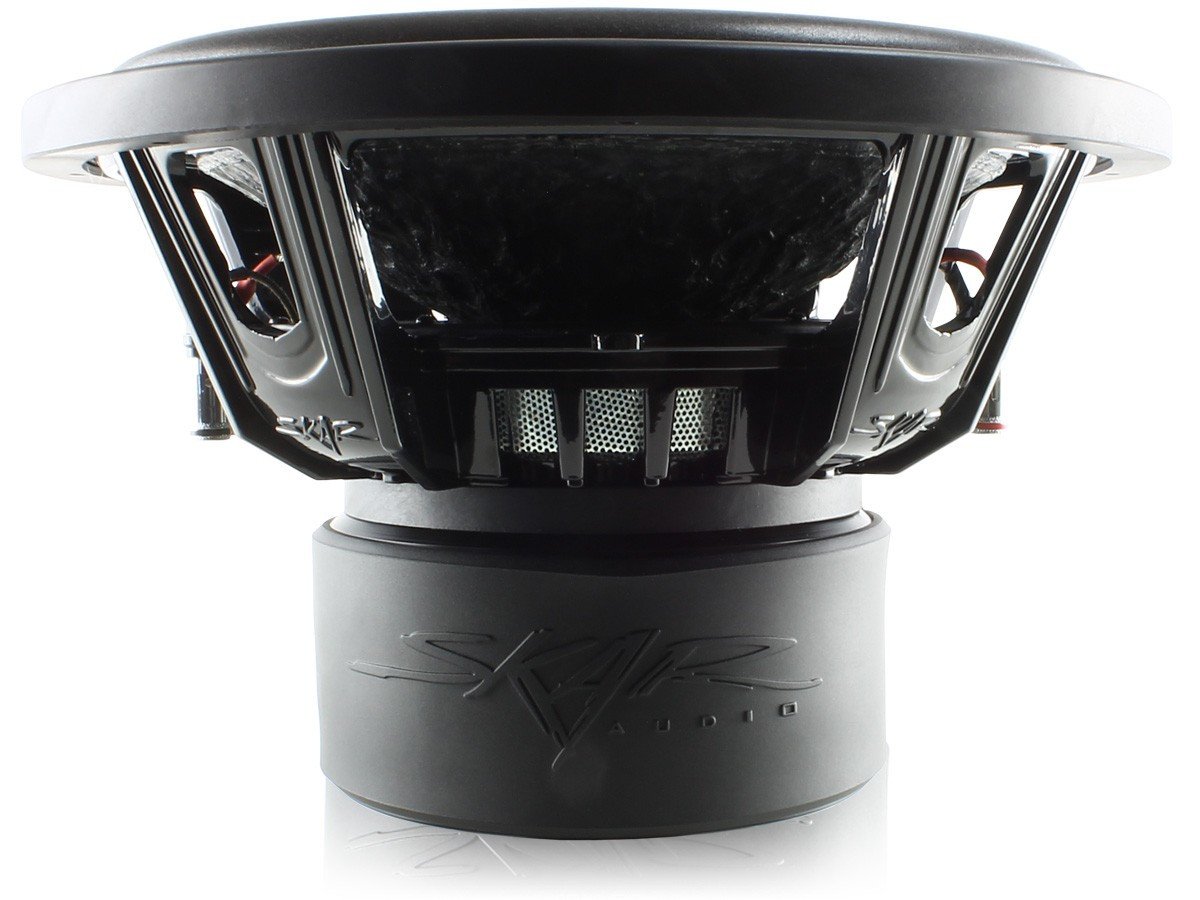

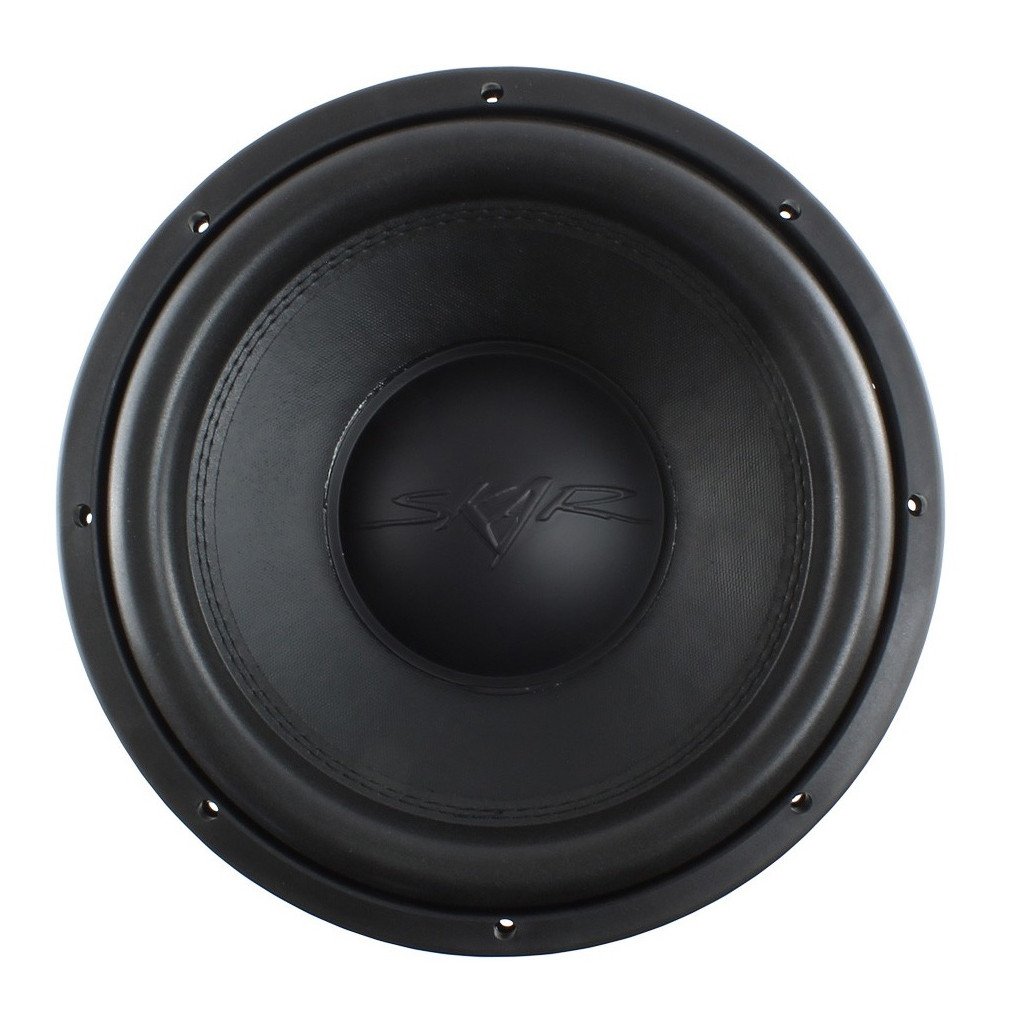

Skar Audio VVX-12v2 D4
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 12″ / 305 mm |
| Resonance | 41.2 Hz |
| Q factor | 0.45 |
| Sensitivity | 84.7 dB |
| Linear excursion | ± 18 mm |
| Program Power | 1200 W |
Discontinued
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.7dB
- Frequency response 35 - 450Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 41.2Hz
- Mechanical quality factor QMS 4.83
- Electrical quality factor QES 0.50
- Total quality factor QTS 0.45
Large signal parameters
- Maximum linear excursion xmax 18mm
- Air volume displaced at xmax VD 828cm³
- Power handling P 600W
- Program power Pmax 1200W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series, estimated) LE 5.48mH
- VC Diameter 64mm
Magnet
- Force factor (in series) Bl 24.2N/A
- Motor constant Bl/√RE 9.57N/√W
- Diameter 165mm
Diaphragm
- Effective diameter 242mm
- Effective area SD 460cm²
- Moving mass MMS 242g
- Moving mass (without air load) MMD 235g
Suspensions
- Stiffness KMS 12.5N/mm
- Compliance CMS 80µm/N
- Equivalent volume to the compliance VAS 24L
- Mechanical resistance RMS 13N·s/m
Dimensions
- Nominal diameter 12″
- 305mm
- Baffle cutout diameter 284mm
- Mounting depth 183mm
- Volume occupied by the driver 4.2L
