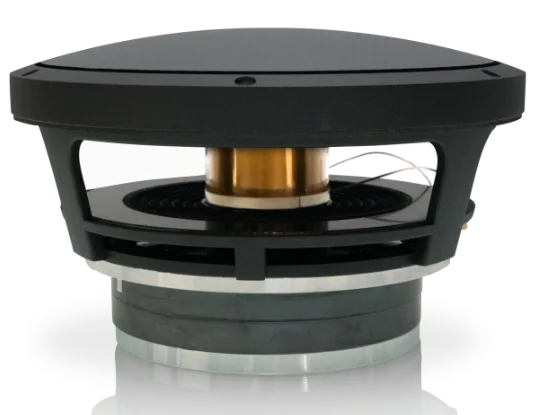

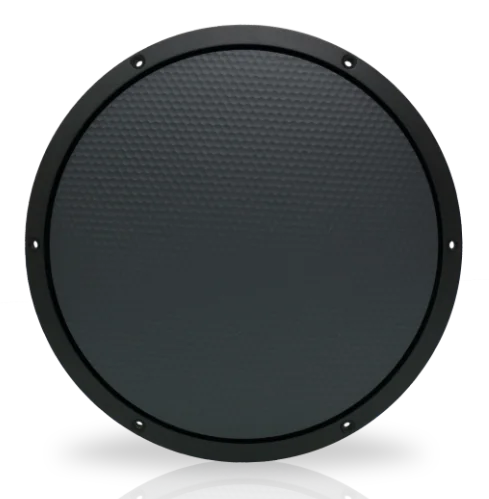

accuton AS250AM-4-559
4Ω
Subwoofer
| Nominal diameter | 11″ / 250 mm |
| Resonance | 21.4 Hz |
| Q factor | 0.38 |
| Sensitivity | 87.7 dB |
| Linear excursion | ± 9 mm |
| Program Power | 600 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.7dB

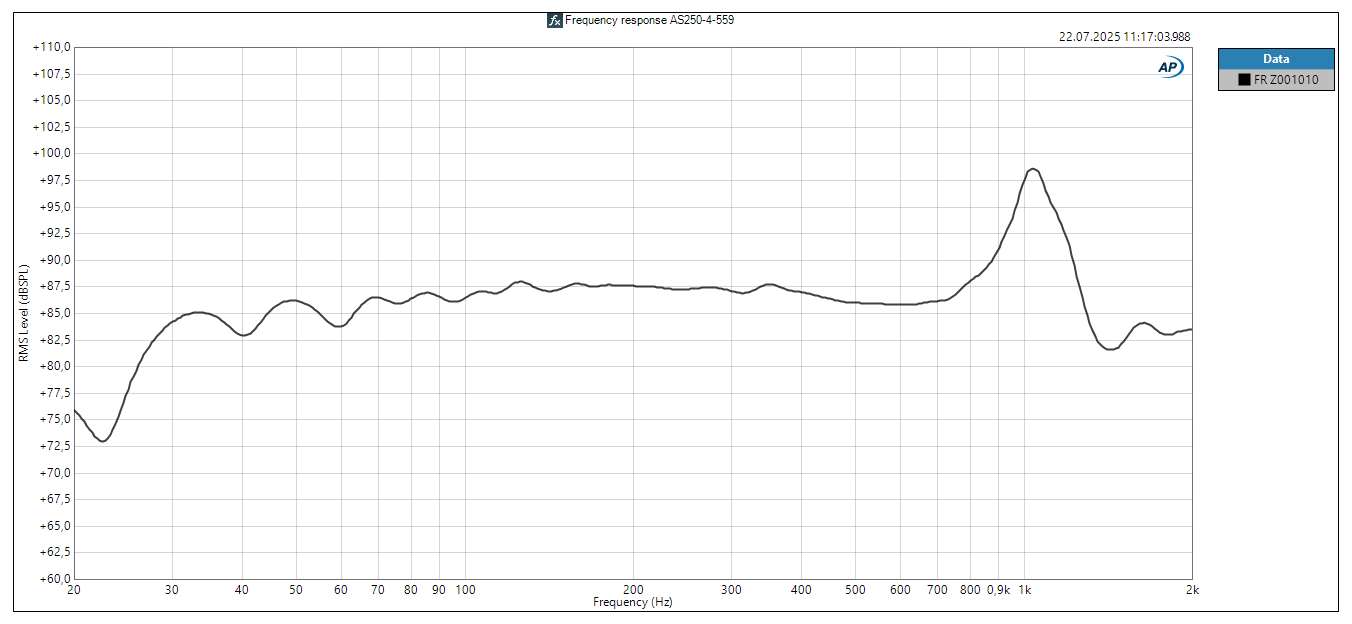

- Frequency response 20 - 300Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 21.4Hz
- Mechanical quality factor QMS 7.17
- Electrical quality factor QES 0.40
- Total quality factor QTS 0.38
Large signal parameters
- Maximum linear excursion (one way) xmax 9mm
- Air volume displaced at xmax VD 358cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil

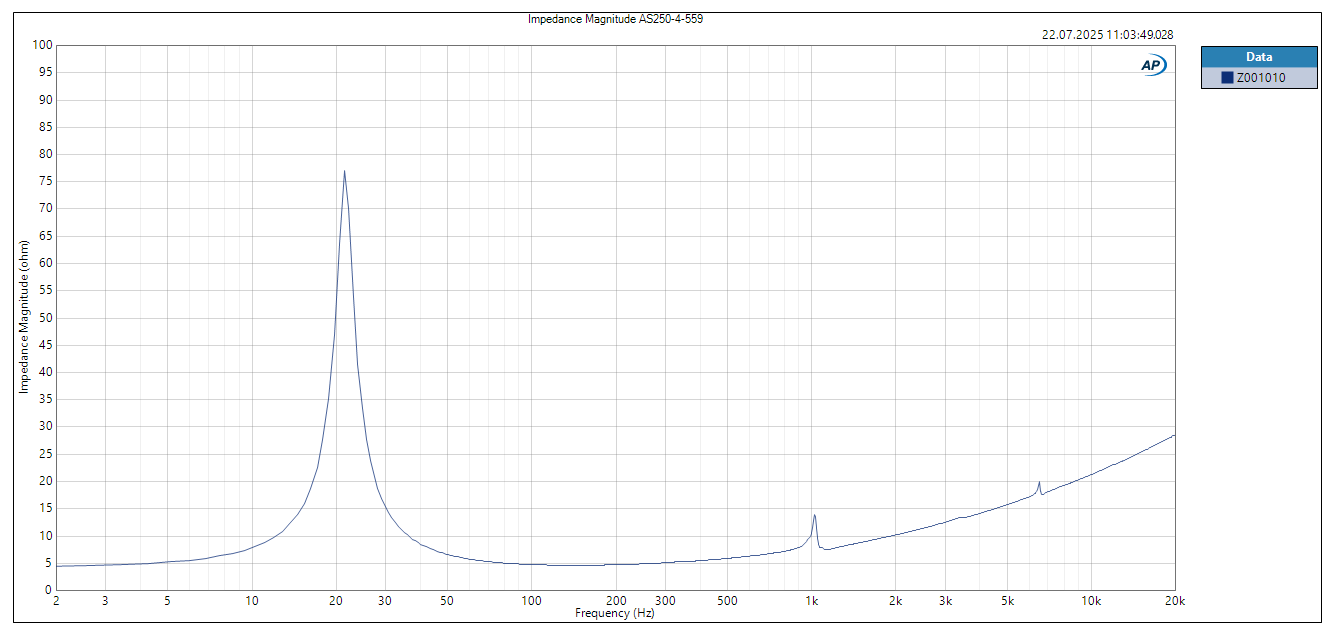

- Nominal impedance Z 4Ω
- DC resistance RE 4.0Ω
- Inductance (1kHz) LE 0.24mH
- VC Diameter 61mm
- Winding material Copper
- Former material Titanium
Magnet
- Force factor Bl 10N/A
- Motor constant Bl/√RE 5.01N/√W
- Diameter 156mm
- Height 48mm
Diaphragm
- Effective diameter 225mm
- Effective area SD 398cm²
- Moving mass MMS 75.5g
- Moving mass (without air load) MMD 70.3g
- Material Aluminium-Sandwich
Suspensions
- Stiffness KMS 1.37N/mm
- Compliance CMS 730µm/N
- Equivalent volume to the compliance VAS 165L
- Mechanical resistance RMS 1.41N·s/m
Dimensions
- Nominal diameter 11″
- 250mm
- Baffle cutout diameter 230mm
- Overall depth 150mm
- Flange thickness 18mm
- Mounting depth 132mm
- Volume occupied by the driver (estimated) 2.7L
.png)
.png)
.png)
