50 results
Brand
ATOHMAcoustic EleganceAudesAurum CantusB&C SpeakerBMSBRAXBeymaBlack HydraCT SoundsCelestionCerwin VegaCiareD.A.S. AudioDB DriveDayton AudioESXETONEighteen SoundEminenceFaitalPROFaneFi Car AudioFocalFostexFountekGRSGoldwoodHELIXHertzJL AudioJensenKICKERKICXKartesianLaVoceLowtherMATCHMD LabMONACORMTX AudioMicro-PrecisionMorelObertonP.AudioPHL audioPRV AudioPUNKTKILDEPeerlessPioneerPowerBassPrecision DevicesPrideRCFRadianReckhornRockford FosgateSB AcousticsSEASSICASONYSUPRAVOXScan-SpeakSkar AudioTang BandVISATONVOLTWVLWavecoraccutonmivoc
Type
SubwooferWooferMid BassMid-rangeFull-rangeCoaxial2 Way2 Way Kit3 WayBass Guitar SpeakerGuitar SpeakerLow frequencyMiniatureShallow SubwooferShallow WooferShallow Mid-WooferTriaxial
Available on
Amazon.comParts Express
•
Nominal diameter
″
•
SensitivitySPL1W
dB

Thiele & Small parameters

•
Resonance frequencyfS
Hz
•
Mechanical quality factorQMS
•
Electrical quality factorQES
•
Total quality factorQTS

Large signal parameters

•
Maximum linear excursionxmax
mm
•
Air volume displaced at xmaxVD
cm³
•
Program powerPmax
W

Voice Coil & Magnet

•
Nominal impedanceZ
Ω
•
DC resistanceRE
Ω
•
Force factorBl
N/A
•
Motor constantBl/√RE
N/√W
•
InductanceLE
mH
•
VC Diameter
mm

Diaphragm

•
Effective diameter
mm
•
Effective areaSD
cm²
•
Moving massMMS
g

Suspensions

•
StiffnessKMS
N/mm
•
ComplianceCMS
µm/N
•
Equivalent volume to CMSVAS
L
•
Mechanical resistanceRMS
N·s/m

Dimensions

•
Overall size
mm
•
Baffle cutout diameter
mm
•
Overall depth
mm
•
Mounting depth
mm
•
Volume occupied
L
•
Net weight
kg
Eminence DELTA-10A-2 Woofer

Eminence DELTA-10A-2

8 Ω
10″ Woofer
fS69.7 Hz
SD345 cm²
50 - 3700 Hz
QTS0.44
xmax6.4 mm
SPL1W94.6 dB
Bl/√RE5.19
Pmax850 W
PRV Audio 10W1000-NDY Woofer

PRV Audio 10W1000-NDY

8 Ω
10″ Woofer
fS62.1 Hz
SD380 cm²
55 - 5500 Hz
QTS0.40
xmax6.5 mm
SPL1W94.9 dB
Bl/√RE5.64
Pmax1000 W
PRV Audio 10MR650A Mid-range

PRV Audio 10MR650A

8 Ω
10″ Mid-range
fS64.7 Hz
SD398 cm²
80 - 6500 Hz
QTS0.47
xmax5.7 mm
SPL1W95.7 dB
Bl/√RE5.18
Pmax650 W
PRV Audio 10MB1000FT Mid Bass

PRV Audio 10MB1000FT

8 Ω
10″ Mid Bass
fS75 Hz
SD380 cm²
75 - 7000 Hz
QTS0.32
xmax5.9 mm
SPL1W99 dB
Bl/√RE6.29
Pmax1000 W
PHL audio 3840NdU Woofer

PHL audio 3840NdU

8 Ω
10″ Woofer
fS62 Hz
SD356 cm²
60 - 3000 Hz
QTS0.22
xmax4.5 mm
SPL1W95.7 dB
Bl/√RE8.79
Pmax500 W
PHL audio 3840 Woofer

PHL audio 3840

8 Ω
10″ Woofer
fS62 Hz
SD356 cm²
60 - 3000 Hz
QTS0.22
xmax4.5 mm
SPL1W95.7 dB
Bl/√RE8.83
Pmax500 W
PHL audio 3020 Woofer

PHL audio 3020

8 Ω
10″ Woofer
fS60 Hz
SD356 cm²
50 - 4000 Hz
QTS0.38
xmax5 mm
SPL1W94.1 dB
Bl/√RE5.56
Pmax400 W
RCF MB10Y308 Woofer

RCF MB10Y308

8 Ω
10″ Woofer
fS60 Hz
SD400 cm²
55 - 3500 Hz
QTS0.23
xmax5 mm
SPL1W97.2 dB
Bl/√RE7.82
Pmax1000 W
FaitalPRO 10HX240 8Ω Coaxial

FaitalPRO 10HX240 8Ω

8 Ω
10″ Coaxial
fS65 Hz
SD347 cm²
65 - 20000 Hz
QTS0.28
xmax7.4 mm
SPL1W96.7 dB
Bl/√RE6.73
Pmax500 W
FaitalPRO 10FE400 8Ω Woofer

FaitalPRO 10FE400 8Ω

8 Ω
10″ Woofer
fS60 Hz
SD362 cm²
60 - 4500 Hz
QTS0.47
xmax5.4 mm
SPL1W93.1 dB
Bl/√RE5.14
Pmax400 W
LaVoce CSF102.50K Coaxial

LaVoce CSF102.50K

8 Ω
10″ Coaxial
fS65 Hz
SD350 cm²
65 - 20000 Hz
QTS0.45
xmax6.3 mm
SPL1W94 dB
Bl/√RE5.36
Pmax600 W
RCF MB10N305 Woofer

RCF MB10N305

8 Ω
10″ Woofer
fS60 Hz
SD400 cm²
55 - 3500 Hz
QTS0.23
xmax5 mm
SPL1W97.2 dB
Bl/√RE7.82
Pmax1000 W
Discontinued
RCF L10-568H Mid Bass

RCF L10-568H

8 Ω
10″ Mid Bass
fS70 Hz
SD400 cm²
50 - 3000 Hz
QTS0.38
xmax4 mm
SPL1W98.3 dB
Bl/√RE5.67
Pmax400 W
Discontinued
RCF CX10N251 Coaxial

RCF CX10N251

8 Ω
10″ Coaxial
fS72 Hz
SD400 cm²
65 - 20000 Hz
QTS0.23
xmax5 mm
SPL1W98.9 dB
Bl/√RE7.67
Pmax600 W
Discontinued
RCF CX10G251 Coaxial

RCF CX10G251

8 Ω
10″ Coaxial
fS72 Hz
SD400 cm²
65 - 20000 Hz
QTS0.28
xmax5 mm
SPL1W99.4 dB
Bl/√RE6.23
Pmax600 W
Discontinued
Peerless FSL-1020R02-08 Woofer

Peerless FSL-1020R02-08

8 Ω
10″ Woofer
fS65 Hz
SD373 cm²
50 - 2000 Hz
QTS0.36
xmax5.1 mm
SPL1W95.6 dB
Bl/√RE5.65
Pmax334 W
PRV Audio 10W650A Woofer

PRV Audio 10W650A

8 Ω
10″ Woofer
fS72.3 Hz
SD415 cm²
75 - 5500 Hz
QTS0.46
xmax4.5 mm
SPL1W95.6 dB
Bl/√RE5.7
Pmax650 W
Discontinued
PRV Audio 10MR1003FT Mid-range

PRV Audio 10MR1003FT

8 Ω
10″ Mid-range
fS60.9 Hz
SD405 cm²
65 - 6000 Hz
QTS0.31
xmax5.3 mm
SPL1W96.1 dB
Bl/√RE7.08
Pmax1000 W
Discontinued
PRV Audio 10MB400 Mid Bass

PRV Audio 10MB400

8 Ω
10″ Mid Bass
fS64.2 Hz
SD398 cm²
65 - 4000 Hz
QTS0.50
xmax5.3 mm
SPL1W94.6 dB
Bl/√RE5.01
Pmax400 W
MONACOR SPA-110PA Mid-range

MONACOR SPA-110PA

8 Ω
10″ Mid-range
fS61 Hz
SD364 cm²
61 - 5000 Hz
QTS0.47
xmax4 mm
SPL1W94 dB
Bl/√RE4.56
Pmax300 W
Discontinued
LaVoce WSN102.00 Woofer

LaVoce WSN102.00

8 Ω
10″ Woofer
fS65 Hz
SD356 cm²
60 - 4000 Hz
QTS0.42
xmax5.3 mm
SPL1W93.5 dB
Bl/√RE5.33
Pmax300 W
LaVoce WSF102.50 Woofer

LaVoce WSF102.50

8 Ω
10″ Woofer
fS64 Hz
SD350 cm²
60 - 2000 Hz
QTS0.31
xmax4.8 mm
SPL1W95.4 dB
Bl/√RE6.36
Pmax500 W
LaVoce WSF102.00 Woofer

LaVoce WSF102.00

8 Ω
10″ Woofer
fS65 Hz
SD350 cm²
60 - 4000 Hz
QTS0.45
xmax5.2 mm
SPL1W94.4 dB
Bl/√RE5.1
Pmax350 W
Discontinued
LaVoce WSF101.82 Woofer

LaVoce WSF101.82

8 Ω
10″ Woofer
fS64 Hz
SD363 cm²
65 - 3000 Hz
QTS0.40
xmax4.6 mm
SPL1W96 dB
Bl/√RE4.86
Pmax300 W
LaVoce FBASS10-18 Bass Guitar Speaker

LaVoce FBASS10-18

8 Ω
10″ Bass Guitar Speaker
fS65 Hz
SD353 cm²
60 - 5000 Hz
QTS0.43
xmax4.5 mm
SPL1W94.4 dB
Bl/√RE5.27
Pmax300 W
Discontinued
FaitalPRO W10N8-350 8Ω Woofer

FaitalPRO W10N8-350 8Ω

8 Ω
10″ Woofer
fS60 Hz
SD319 cm²
60 - 3150 Hz
QTS0.25
xmax5.8 mm
SPL1W95.6 dB
Bl/√RE6.86
Pmax700 W
Discontinued

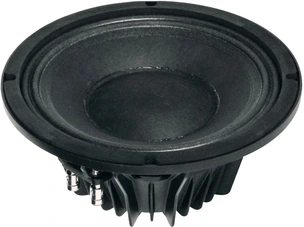

FaitalPRO W10N8-200 8Ω Woofer

FaitalPRO W10N8-200 8Ω

8 Ω
10″ Woofer
fS60 Hz
SD319 cm²
60 - 5000 Hz
QTS0.35
xmax4.9 mm
SPL1W93.9 dB
Bl/√RE5.94
Pmax400 W
FaitalPRO 10PR410 8Ω Woofer

FaitalPRO 10PR410 8Ω

8 Ω
10″ Woofer
fS60 Hz
SD345 cm²
100 - 2000 Hz
QTS0.23
xmax4.5 mm
SPL1W96.6 dB
Bl/√RE7.96
Pmax600 W
FaitalPRO 10PR330 8Ω Subwoofer

FaitalPRO 10PR330 8Ω

8 Ω
10″ Subwoofer
fS60 Hz
SD348 cm²
60 - 3150 Hz
QTS0.33
xmax7.4 mm
SPL1W94.4 dB
Bl/√RE6.21
Pmax600 W
FaitalPRO 10PR310 8Ω Woofer

FaitalPRO 10PR310 8Ω

8 Ω
10″ Woofer
fS60 Hz
SD348 cm²
60 - 4000 Hz
QTS0.34
xmax4.9 mm
SPL1W94.3 dB
Bl/√RE6.2
Pmax600 W
FaitalPRO 10PR300 8Ω Woofer

FaitalPRO 10PR300 8Ω

8 Ω
10″ Woofer
fS60 Hz
SD348 cm²
60 - 5000 Hz
QTS0.28
xmax4.9 mm
SPL1W96.4 dB
Bl/√RE6.07
Pmax600 W
FaitalPRO 10HX230 8Ω Coaxial

FaitalPRO 10HX230 8Ω

8 Ω
10″ Coaxial
fS65 Hz
SD347 cm²
65 - 20000 Hz
QTS0.39
xmax7.4 mm
SPL1W94.6 dB
Bl/√RE5.69
Pmax500 W
FaitalPRO 10FH500 8Ω Subwoofer

FaitalPRO 10FH500 8Ω

8 Ω
10″ Subwoofer
fS60 Hz
SD351 cm²
60 - 4000 Hz
QTS0.26
xmax7.5 mm
SPL1W94.3 dB
Bl/√RE7.93
Pmax1000 W
Discontinued
Eminence KL3010HO-8 Mid-range

Eminence KL3010HO-8

8 Ω
10″ Mid-range
fS62 Hz
SD366 cm²
400 - 4000 Hz
QTS0.27
xmax4.4 mm
SPL1W96.8 dB
Bl/√RE6.8
Pmax800 W
Discontinued
Eminence KAPPALITE 3010HO Mid-range

Eminence KAPPALITE 3010HO

8 Ω
10″ Mid-range
fS61 Hz
SD366 cm²
400 - 4000 Hz
QTS0.26
xmax4.4 mm
SPL1W96.7 dB
Bl/√RE6.96
Pmax800 W
Discontinued
Ciare PW258ND Woofer

Ciare PW258ND

8 Ω
10″ Woofer
fS63 Hz
SD347 cm²
60 - 5000 Hz
QTS0.36
xmax8 mm
SPL1W95.8 dB
Bl/√RE6.66
Pmax600 W
Celestion TF1020 Low frequency

Celestion TF1020

8 Ω
10″ Low frequency
fS69.4 Hz
SD346 cm²
60 - 5500 Hz
QTS0.32
xmax4 mm
SPL1W95.4 dB
Bl/√RE6.04
Pmax300 W
Celestion PULSE10 Bass Guitar Speaker

Celestion PULSE10

8 Ω
10″ Bass Guitar Speaker
fS66.3 Hz
SD346 cm²
45 - 3500 Hz
QTS0.44
xmax4 mm
SPL1W93.7 dB
Bl/√RE5.21
Pmax400 W
Celestion FTX1025 Coaxial

Celestion FTX1025

8 Ω
10″ Coaxial
fS71.5 Hz
SD346 cm²
60 - 20000 Hz
QTS0.44
xmax5 mm
SPL1W94.1 dB
Bl/√RE5.28
Pmax600 W
BMS 10C262 Coaxial

BMS 10C262

8 Ω
10″ Coaxial
fS65 Hz
SD320 cm²
60 - 20000 Hz
QTS0.37
xmax5.5 mm
SPL1W94.1 dB
Bl/√RE5.89
Pmax800 W
