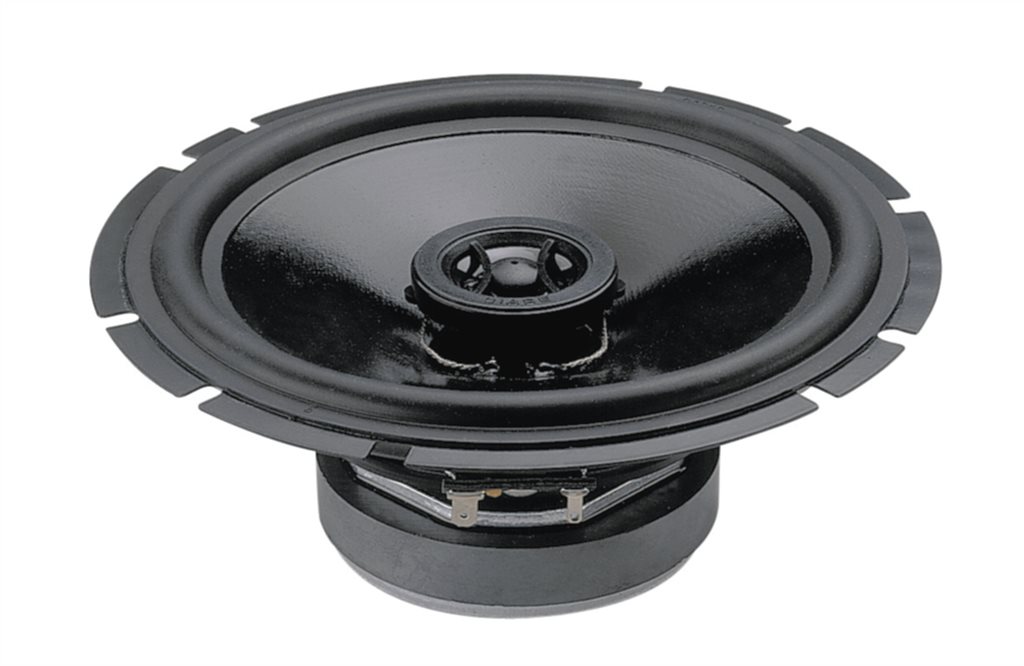

Ciare CZ170

2 Way

Nominal diameter6.5″ / 165 mm
Resonance104 Hz
Q factor1.47
Sensitivity91.5 dB
Linear excursion± 1.1 mm
Program Power100 W
Discontinued
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply
  • Sensitivity (1W, 1m, infinite baffle) SPL1W 91.5dB

Thiele & Small parameters

  • Resonance frequency (free air) fS 104Hz
  • Mechanical quality factor QMS 4.59
  • Electrical quality factor QES 2.16
  • Total quality factor QTS 1.47

Large signal parameters

  • Maximum linear excursion xmax 1.1mm
  • Air volume displaced at xmax VD 15cm³
  • Power handling P 50W
  • Program power Pmax 100W

Voice Coil

  • Nominal impedance Z 4Ω
  • DC resistance RE 3.5Ω
  • Inductance (1kHz, estimated) LE 0.28mH
  • VC Diameter 25mm
  • Former material Aluminium

Magnet

  • Force factor Bl 2.73N/A
  • Motor constant Bl/√RE 1.46N/√W
  • Air gap height HAG 4mm
  • Material Ferrite

Diaphragm

  • Effective diameter 130mm
  • Effective area SD 132cm²
  • Moving mass MMS 7.05g
  • Moving mass (without air load) MMD 5.9g

Suspensions

  • Stiffness KMS 3.03N/mm
  • Compliance CMS 330µm/N
  • Equivalent volume to the compliance VAS 8.16L
  • Mechanical resistance RMS 1N·s/m
  • Surround material Rubber

Dimensions

  • Nominal diameter 6.5
  • 165mm
  • Overall diameter 165mm
  • Baffle cutout diameter 142mm
  • Overall depth 60mm
  • Flange thickness 6mm
  • Mounting depth 54mm
  • Volume occupied by the driver (estimated) 0.32L
  • Frame material Steel

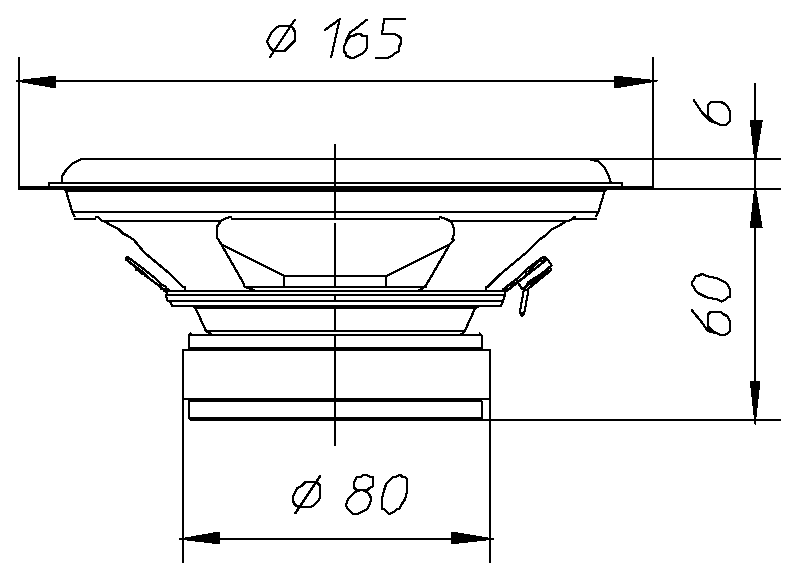

Ciare CZ170 Dimensions
