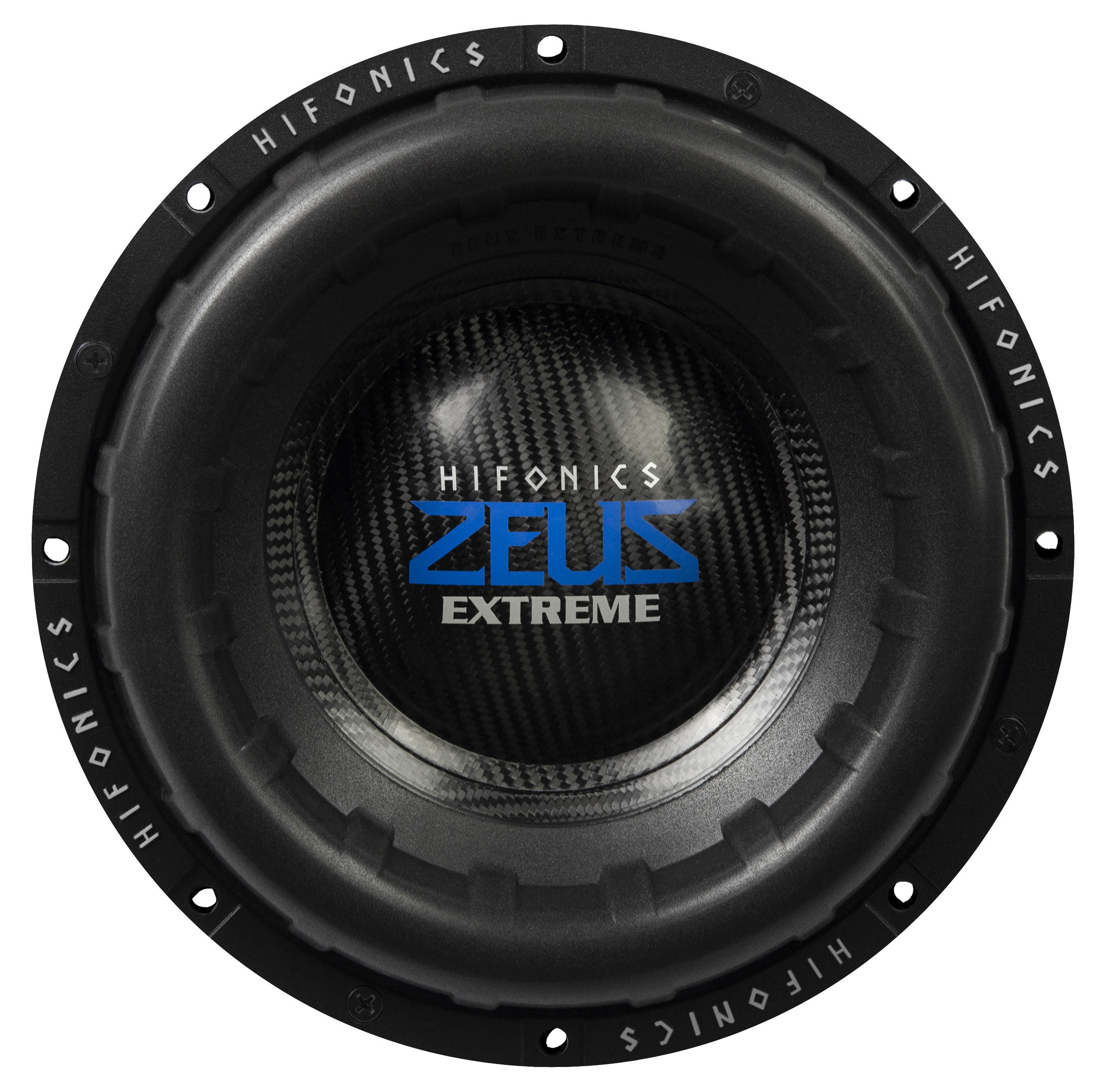

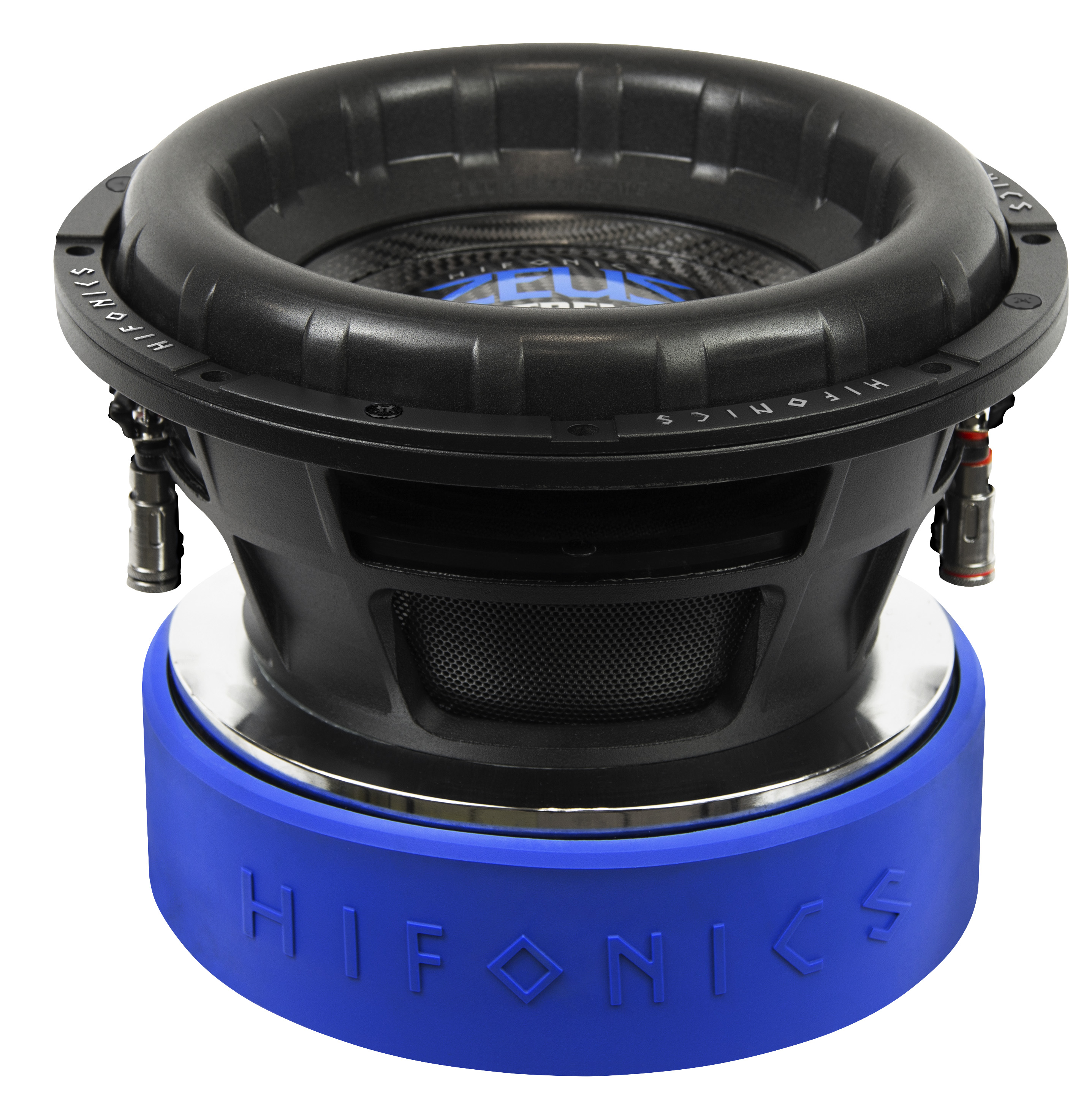

HiFonics ZEUS EXTREME ZXT10D2
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 46 Hz |
| Q factor | 0.53 |
| Sensitivity | 82.3 dB |
| Linear excursion | ± 23 mm |
| Program Power | 5000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.3dB
Thiele & Small parameters
- Resonance frequency (free air) fS 46Hz
- Mechanical quality factor QMS 4.10
- Electrical quality factor QES 0.61
- Total quality factor QTS 0.53
Large signal parameters
- Maximum linear excursion (one way) xmax 23mm
- Maximum excursion before damage xlim 30mm
- Air volume displaced at xmax VD 759cm³
- Power handling P 2500W
- Program power Pmax 5000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.1Ω
- Inductance (1kHz, in series) LE 1.52mH
- VC Diameter 76mm
- Winding height HVC 57.5mm
- Former material BASV
Magnet
- Force factor (in series) Bl 23.3N/A
- Motor constant Bl/√RE 11.5N/√W
- Diameter 220mm
- Height 60mm
- Weight 8.505kg
Diaphragm
- Effective diameter 205mm
- Effective area SD 330cm²
- Moving mass MMS 282g
- Moving mass (without air load) MMD 278g
- Material Carbon Composite
Suspensions
- Stiffness KMS 25N/mm
- Compliance CMS 40µm/N
- Equivalent volume to the compliance VAS 6.2L
- Mechanical resistance RMS 19.9N·s/m
- Surround material Foam
- Spider material Triple Nomex
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 262mm
- Baffle cutout diameter 235mm
- Mounting depth 198mm
- Volume occupied by the driver (estimated) 1.6L
- Frame material Diecast Aluminium
