KICKER CompVX 50CVX104

• Sensitivity (1W, 1m, infinite baffle) SPL1W 86.6dB
• Frequency response 24 - 500Hz

Thiele & Small parameters

• Resonance frequency (free air) fS 43.9Hz
• Mechanical quality factor QMS 8.47
• Electrical quality factor QES 0.51
• Total quality factor QTS 0.48

Large signal parameters

• Maximum linear excursion xmax 16.3mm
• Air volume displaced at xmax VD 585cm³
• Power handling P 600W
• Program power Pmax 1200W

Voice Coil

• Nominal impedance Z 2 x 4Ω
• DC resistance (in series) RE 7.4Ω
• Inductance (1kHz, in series) LE 7.06mH

Magnet

• Force factor (in series) Bl 24.9N/A
• Motor constant Bl/√RE 9.15N/√W

Diaphragm

• Effective diameter 214mm
• Effective area SD 360cm²
• Moving mass MMS 154g
• Moving mass (without air load) MMD 150g

Suspensions

• Stiffness KMS 11.8N/mm
• Compliance CMS 87µm/N
• Equivalent volume to the compliance VAS 15.9L
• Mechanical resistance RMS 5.04N·s/m

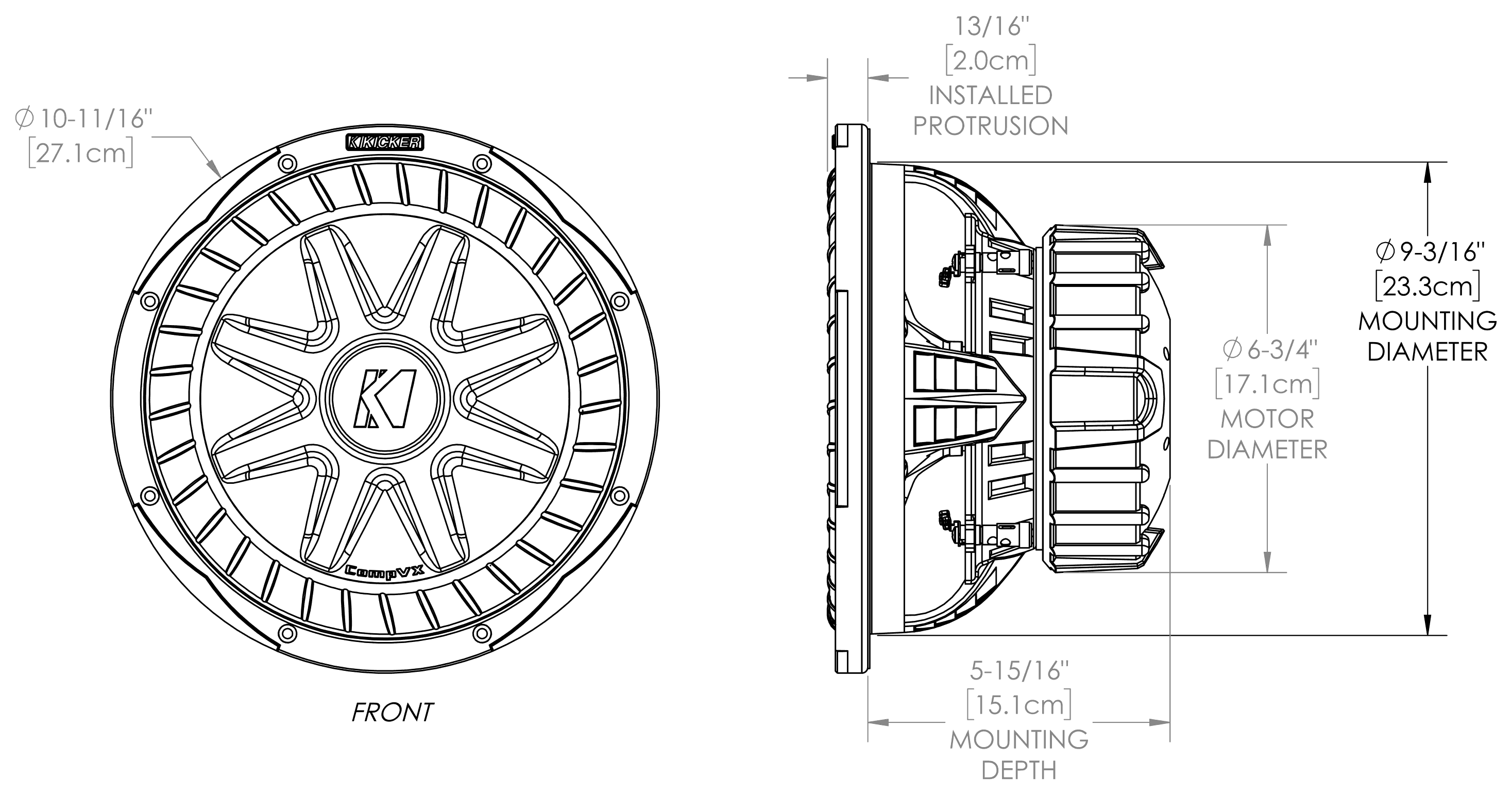

Dimensions

• Nominal diameter 10″
• 250mm
• Baffle cutout diameter 233mm
• Mounting depth 151mm
• Volume occupied by the driver (estimated) 1.5L
