KICKER CompVX 50CVX102
2x2Ω
2x4ΩSubwoofer
10″ / 250 mm
Nominal diameter
36 Hz
Resonance
0.39
Q factor
86 dB
Sensitivity
± 16.25 mm
Linear excursion
1200 W
Program Power
![KICKER 50CVX102 Subwoofer](/KICKER/50CVX102/KICKER_50CVX102_(Photo_1).jpg)
![KICKER 50CVX102 Subwoofer](/KICKER/50CVX102/KICKER_50CVX102_(Photo_2).jpg)
![KICKER 50CVX102 Subwoofer](/KICKER/50CVX102/KICKER_50CVX102_(Photo_3).jpg)
- Sensitivity (1W, 1m, infinite baffle)
- SPL1W
- 85.9
- dB
- Frequency response
- 24 - 500
- Hz
- Resonance frequency (free air)
- fS
- 36.3
- Hz
- Mechanical quality factor
- QMS
- 9.37
- Electrical quality factor
- QES
- 0.41
- Total quality factor
- QTS
- 0.39
- Maximum linear excursion
- xmax
- 16.25
- mm
- Air volume displaced at xmax
- VD
- 585
- cm³
- Power handling
- P
- 600
- W
- Program power
- Pmax
- 1200
- W
- Nominal impedance
- Z
- 2 x 2
- Ω
- DC resistance (in series)
- RE
- 3.4
- Ω
- Inductance (1kHz, in series)
- LE
- 4.19
- mH
- Force factor (in series)
- Bl
- 18.43
- N/A
- Motor constant
- Bl/√RE
- 10.1
- N/√W
- Effective diameter
- 214
- mm
- Effective area
- SD
- 360
- cm²
- Moving mass
- MMS
- 181.7
- g
- Moving mass (without air load)
- MMD
- 177
- g
- Stiffness
- KMS
- 9.46
- N/mm
- Compliance
- CMS
- 106
- µm/N
- Equivalent volume to the compliance
- VAS
- 19.4
- L
- Mechanical resistance
- RMS
- 4.423
- N·s/m
- Nominal diameter
- 10
- ″
- 250
- mm
- Baffle cutout diameter
- 233
- mm
- Mounting depth
- 151
- mm
- Volume occupied by the driver (estimated)
- 1.5
- L
Thiele & Small parameters
Large signal parameters
Voice Coil
Magnet
Diaphragm
Suspensions

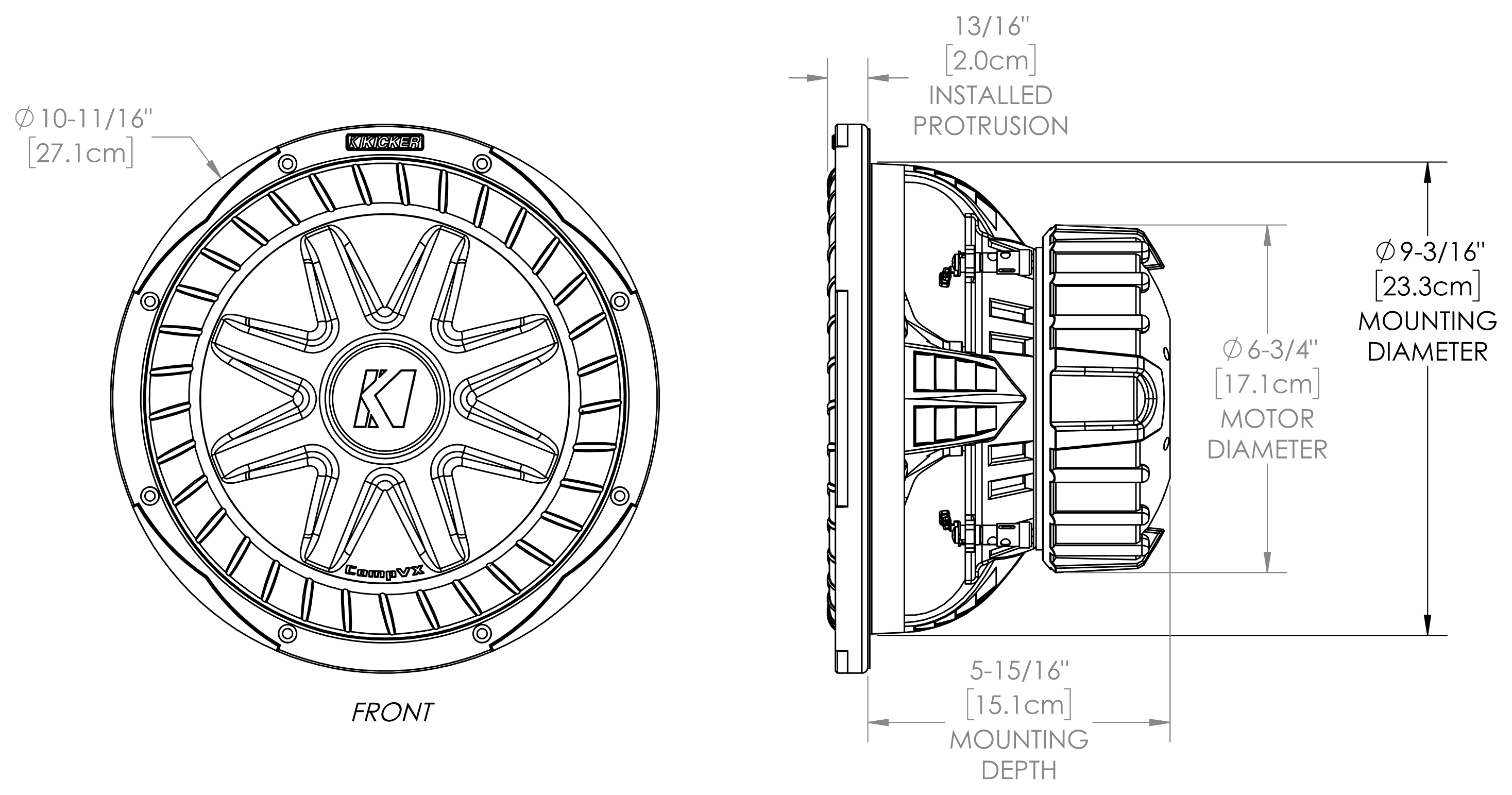

Dimensions
