KICKER CompC 50CWCD104
2x4Ω
4ΩSubwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 34 Hz |
| Q factor | 0.70 |
| Sensitivity | 85.7 dB |
| Linear excursion | ± 13.2 mm |
| Program Power | 500 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.7dB
- Frequency response 30 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 34Hz
- Mechanical quality factor QMS 7.14
- Electrical quality factor QES 0.77
- Total quality factor QTS 0.70
Large signal parameters
- Maximum linear excursion (one way) xmax 13.2mm
- Air volume displaced at xmax VD 473cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 7.5Ω
- Inductance (1kHz, in series) LE 4.93mH
Magnet
- Force factor (in series) Bl 14.1N/A
- Motor constant Bl/√RE 5.17N/√W
Diaphragm
- Effective diameter 214mm
- Effective area SD 360cm²
- Moving mass MMS 97g
- Moving mass (without air load) MMD 92g
Suspensions
- Stiffness KMS 4.43N/mm
- Compliance CMS 228µm/N
- Equivalent volume to the compliance VAS 1.62L
- Mechanical resistance RMS 2.97N·s/m

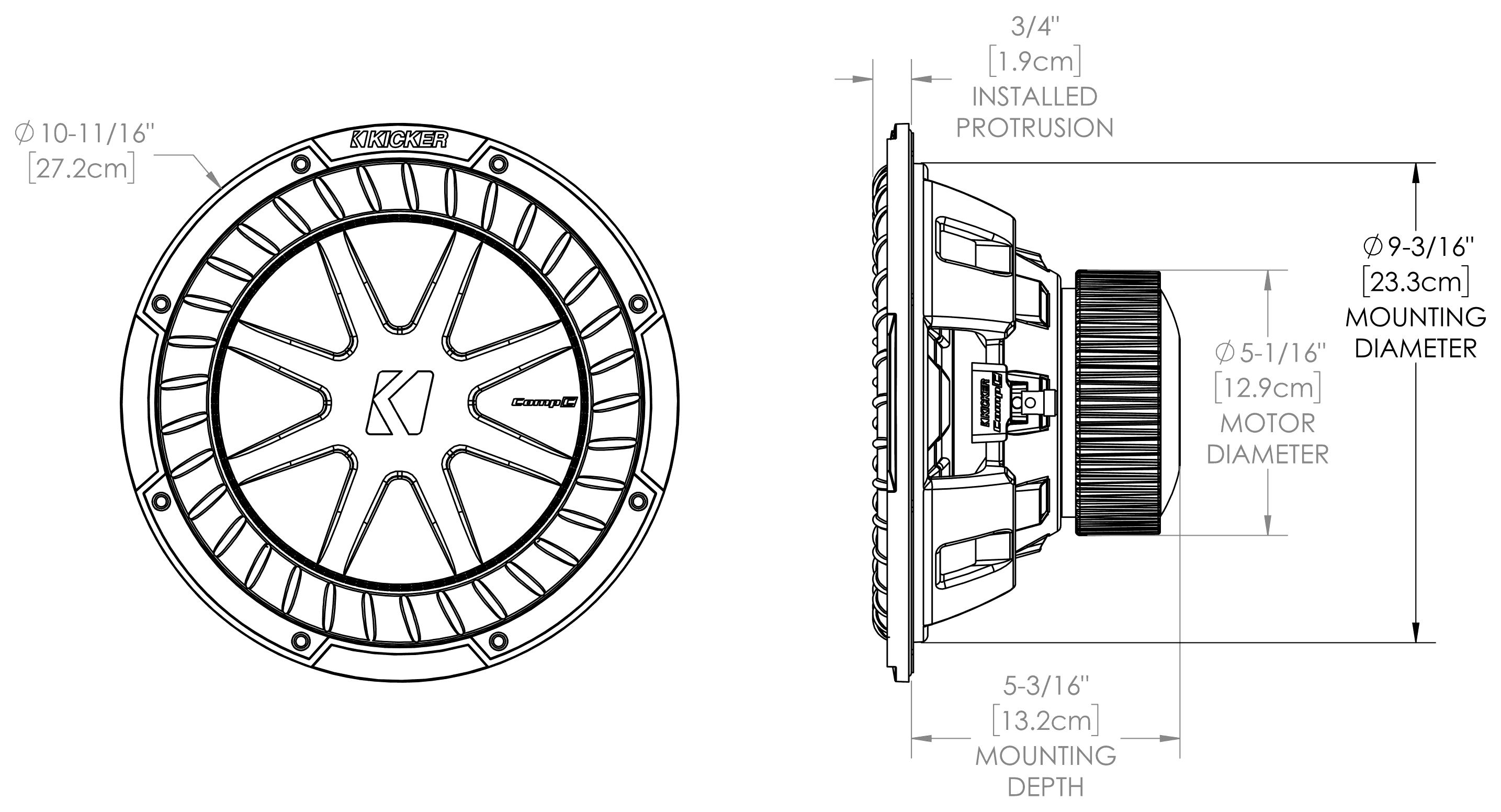

Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 272mm
- Baffle cutout diameter 233mm
- Mounting depth 132mm
- Volume occupied by the driver (estimated) 1.8L
