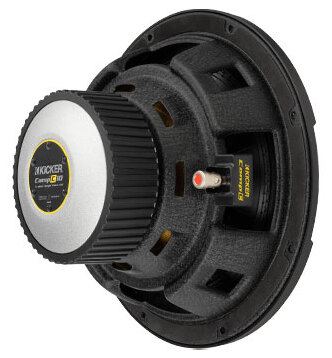

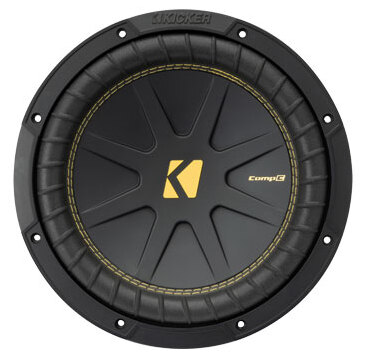

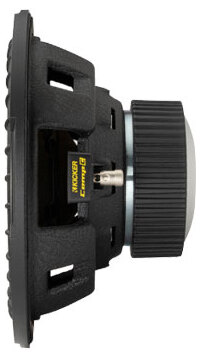

KICKER CompC 50CWCS104
2x4Ω
4Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 31 Hz |
| Q factor | 0.59 |
| Sensitivity | 85.9 dB |
| Linear excursion | ± 13.2 mm |
| Program Power | 500 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.9dB
- Frequency response 30 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 31Hz
- Mechanical quality factor QMS 8.17
- Electrical quality factor QES 0.64
- Total quality factor QTS 0.59
Large signal parameters
- Maximum linear excursion (one way) xmax 13.2mm
- Air volume displaced at xmax VD 473cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.8Ω
- Inductance (1kHz) LE 2.63mH
Magnet
- Force factor Bl 10.6N/A
- Motor constant Bl/√RE 5.44N/√W
Diaphragm
- Effective diameter 214mm
- Effective area SD 360cm²
- Moving mass MMS 96.9g
- Moving mass (without air load) MMD 91.9g
Suspensions
- Stiffness KMS 3.66N/mm
- Compliance CMS 274µm/N
- Equivalent volume to the compliance VAS 15.2L
- Mechanical resistance RMS 2.31N·s/m
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 272mm
- Baffle cutout diameter 233mm
- Mounting depth 132mm
- Volume occupied by the driver (estimated) 1.8L
