KICKER CompC 50CWCD124
2x4Ω
4ΩSubwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 32.5 Hz |
| Q factor | 0.84 |
| Sensitivity | 87.1 dB |
| Linear excursion | ± 13.3 mm |
| Program Power | 600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.1dB
- Frequency response 27 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 32.5Hz
- Mechanical quality factor QMS 7.86
- Electrical quality factor QES 0.93
- Total quality factor QTS 0.84
Large signal parameters
- Maximum linear excursion xmax 13.3mm
- Air volume displaced at xmax VD 705cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 7.5Ω
- Inductance (1kHz, in series) LE 4.27mH
Magnet
- Force factor (in series) Bl 14.4N/A
- Motor constant Bl/√RE 5.27N/√W
Diaphragm
- Effective diameter 260mm
- Effective area SD 531cm²
- Moving mass MMS 127g
- Moving mass (without air load) MMD 118g
Suspensions
- Stiffness KMS 5.28N/mm
- Compliance CMS 190µm/N
- Equivalent volume to the compliance VAS 75.7L
- Mechanical resistance RMS 3.3N·s/m

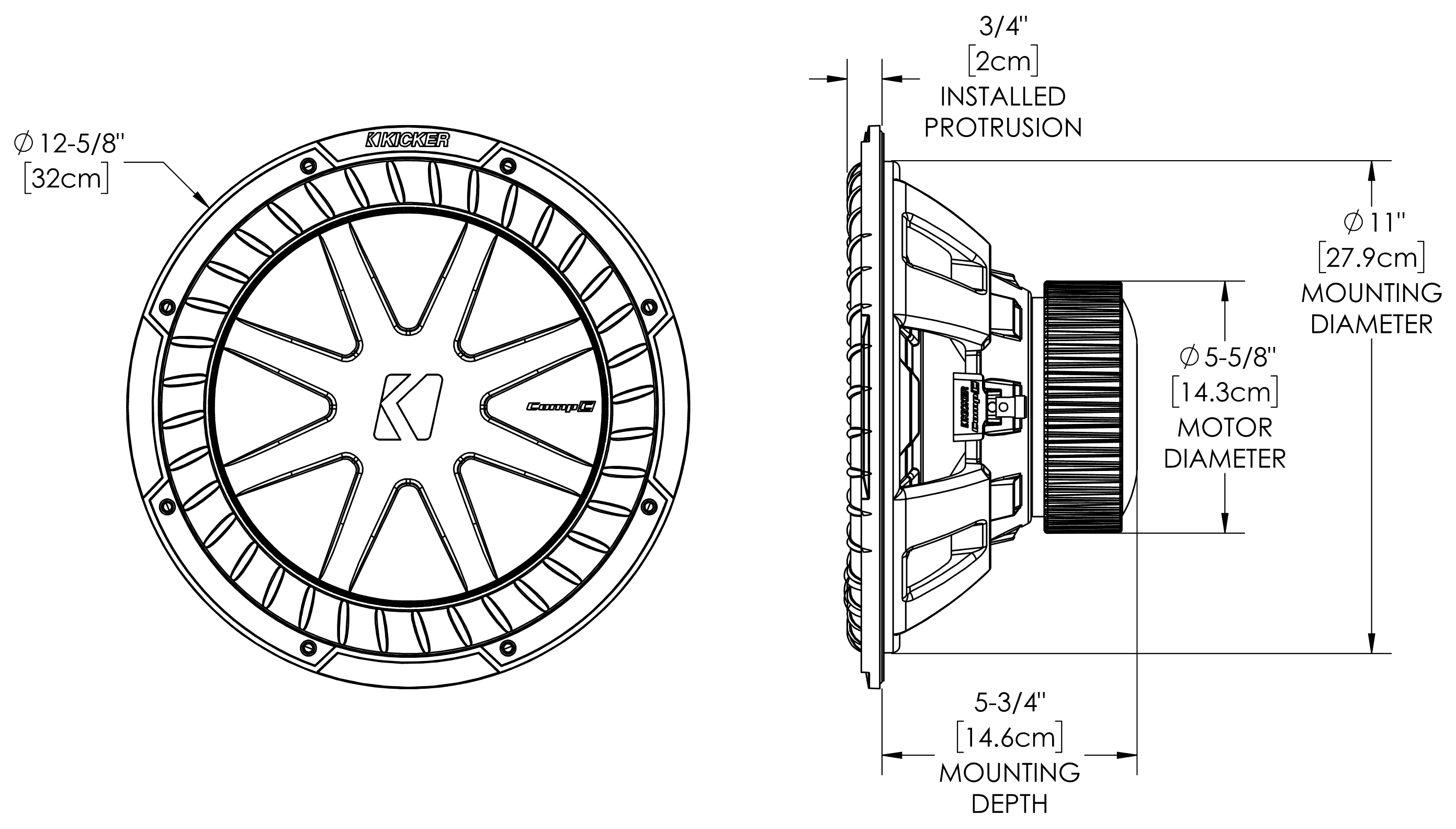

Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 320mm
- Baffle cutout diameter 279mm
- Mounting depth 146mm
- Volume occupied by the driver (estimated) 2.7L
