KICKER CompC 50CWCS124
2x4Ω
4Ω
Subwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 31.3 Hz |
| Q factor | 0.72 |
| Sensitivity | 87.4 dB |
| Linear excursion | ± 13.3 mm |
| Program Power | 600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.4dB
- Frequency response 27 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 31.3Hz
- Mechanical quality factor QMS 9.02
- Electrical quality factor QES 0.79
- Total quality factor QTS 0.72
Large signal parameters
- Maximum linear excursion xmax 13.3mm
- Air volume displaced at xmax VD 705cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.7Ω
- Inductance (1kHz) LE 2.53mH
Magnet
- Force factor Bl 11N/A
- Motor constant Bl/√RE 5.72N/√W
Diaphragm
- Effective diameter 260mm
- Effective area SD 531cm²
- Moving mass MMS 131g
- Moving mass (without air load) MMD 122g
Suspensions
- Stiffness KMS 5.06N/mm
- Compliance CMS 198µm/N
- Equivalent volume to the compliance VAS 79L
- Mechanical resistance RMS 2.86N·s/m

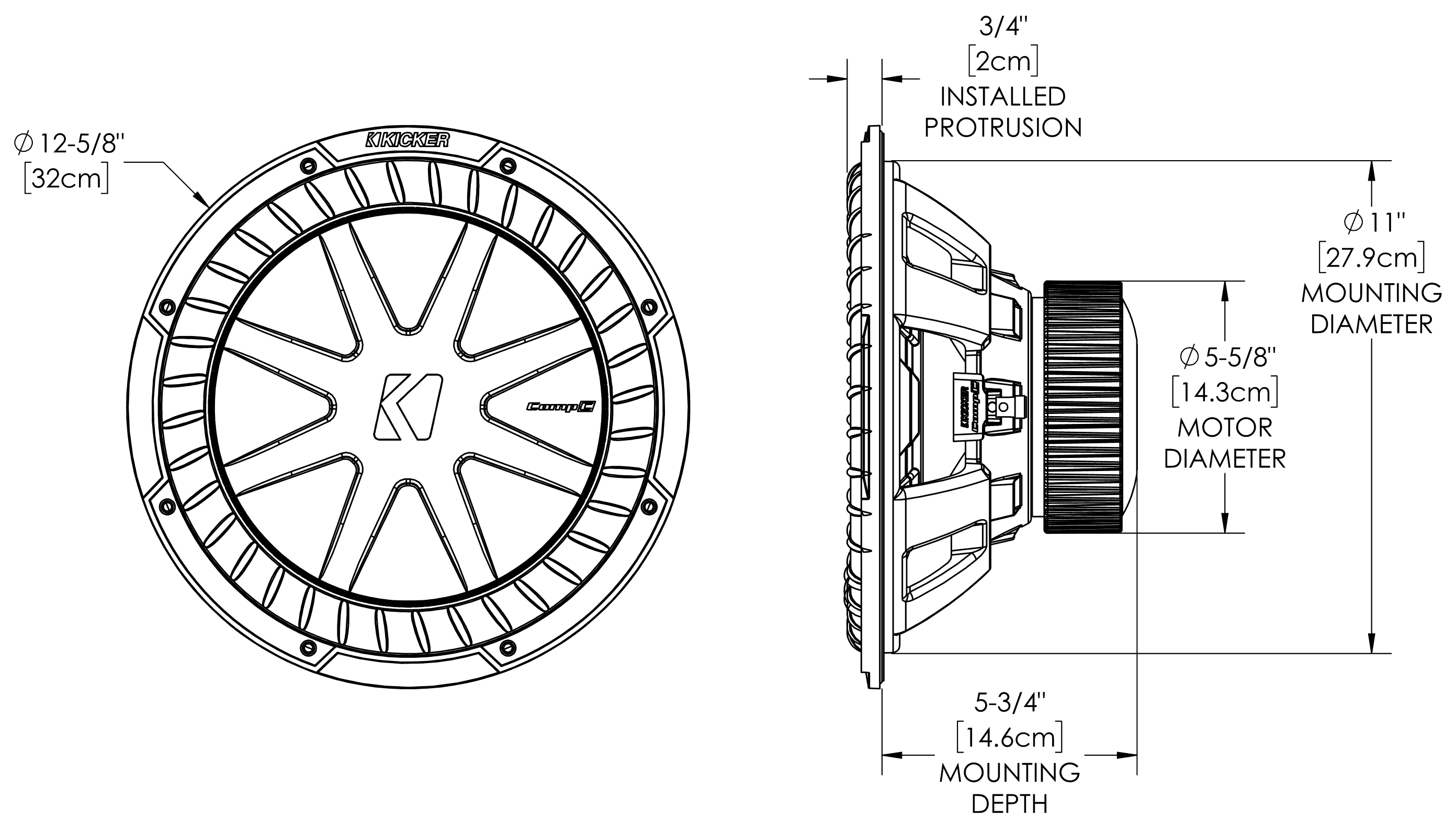

Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 320mm
- Baffle cutout diameter 279mm
- Mounting depth 146mm
- Volume occupied by the driver (estimated) 2.7L
.png)
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
