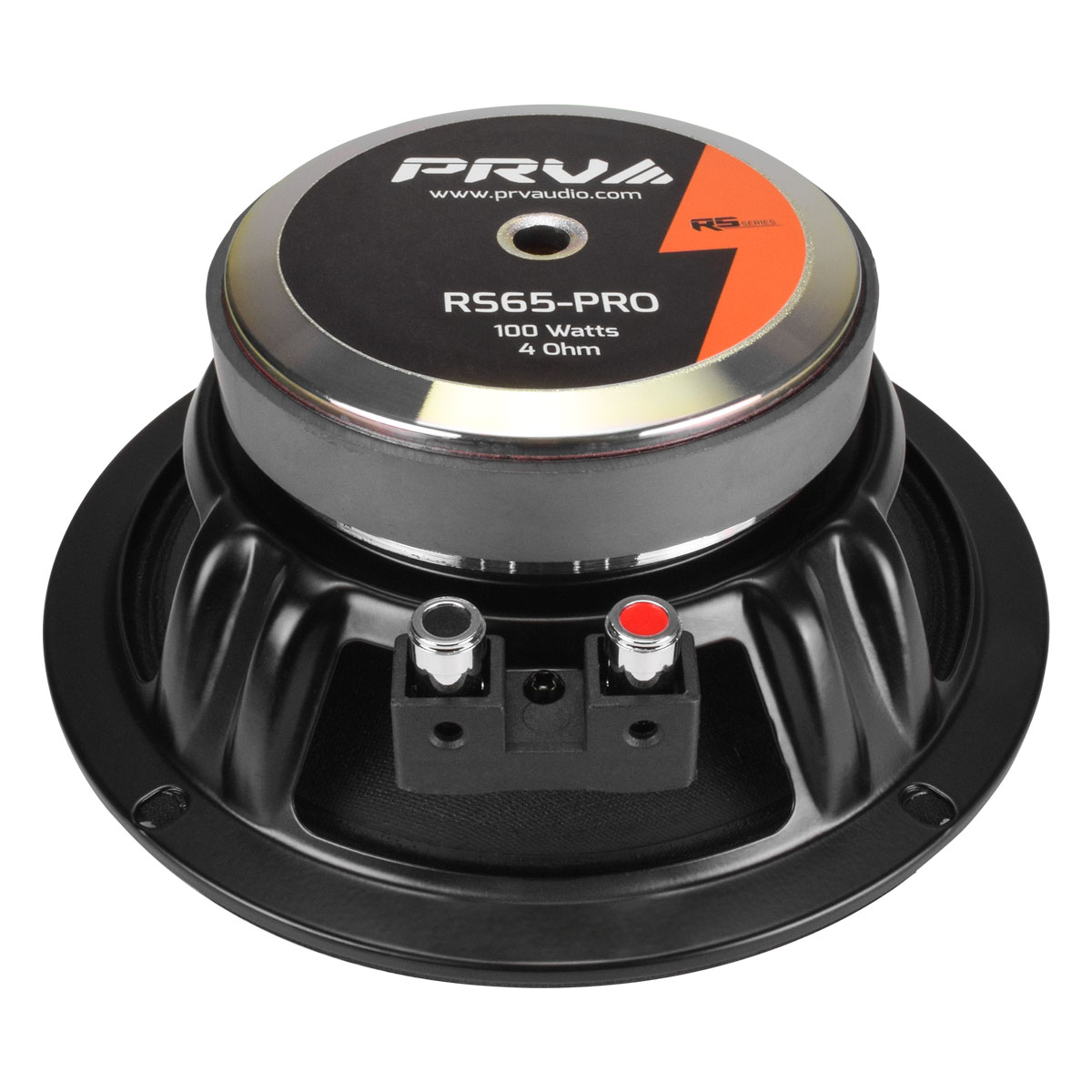

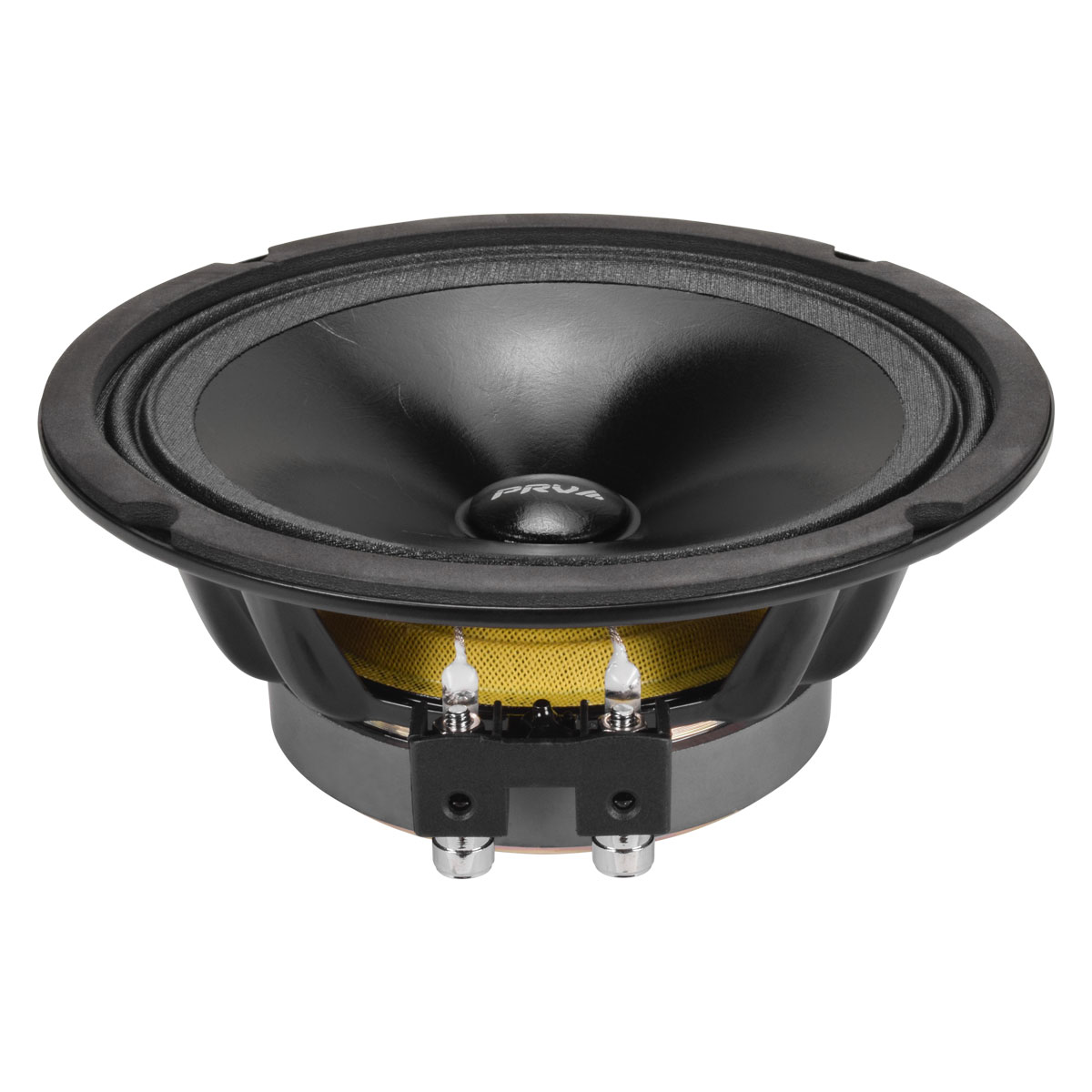

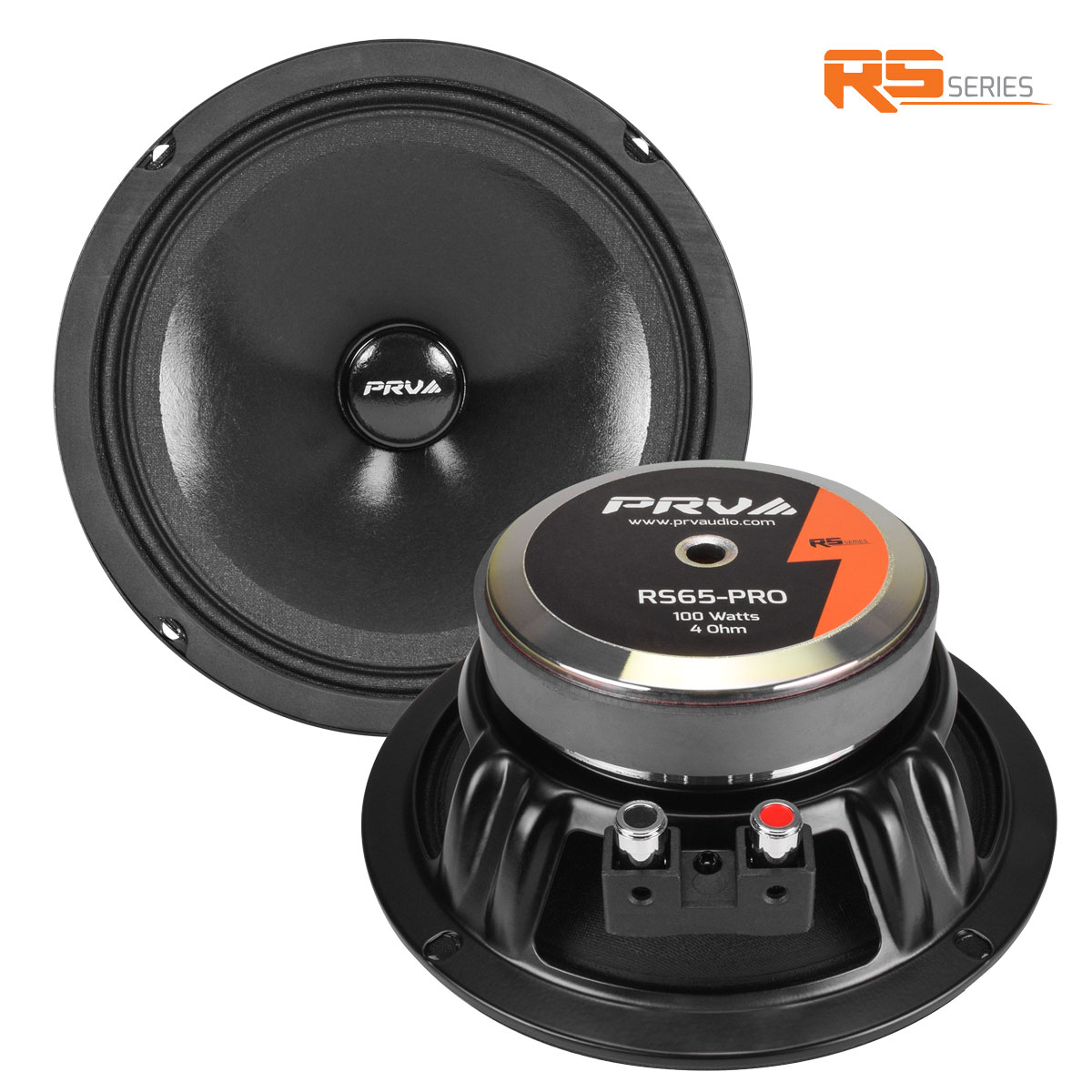

PRV Audio RS65-PRO
4Ω
Full-range
| Nominal diameter | 6.5″ / 152 mm |
| Resonance | 132 Hz |
| Q factor | 1.06 |
| Sensitivity | 93.4 dB |
| Linear excursion | ± 3.4 mm |
| Program Power | 100 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 93.4dB

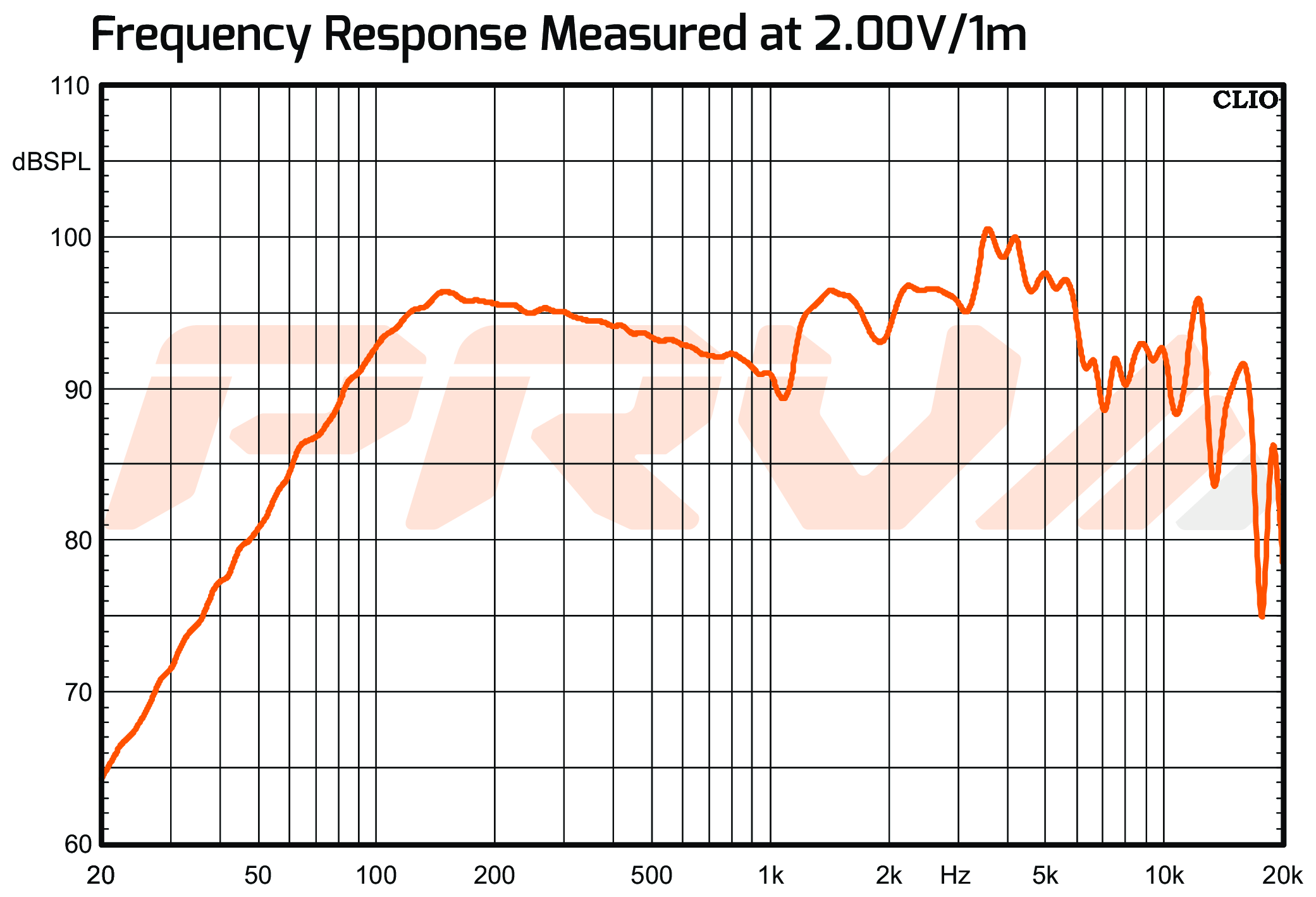

- Frequency response 60 - 18000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 132Hz
- Mechanical quality factor QMS 10.15
- Electrical quality factor QES 1.18
- Total quality factor QTS 1.06
Large signal parameters
- Maximum linear excursion xmax 3.4mm
- Air volume displaced at xmax VD 52cm³
- Power handling P 50W
- Program power Pmax 100W
- Peak power Ppeak 200W
Voice Coil

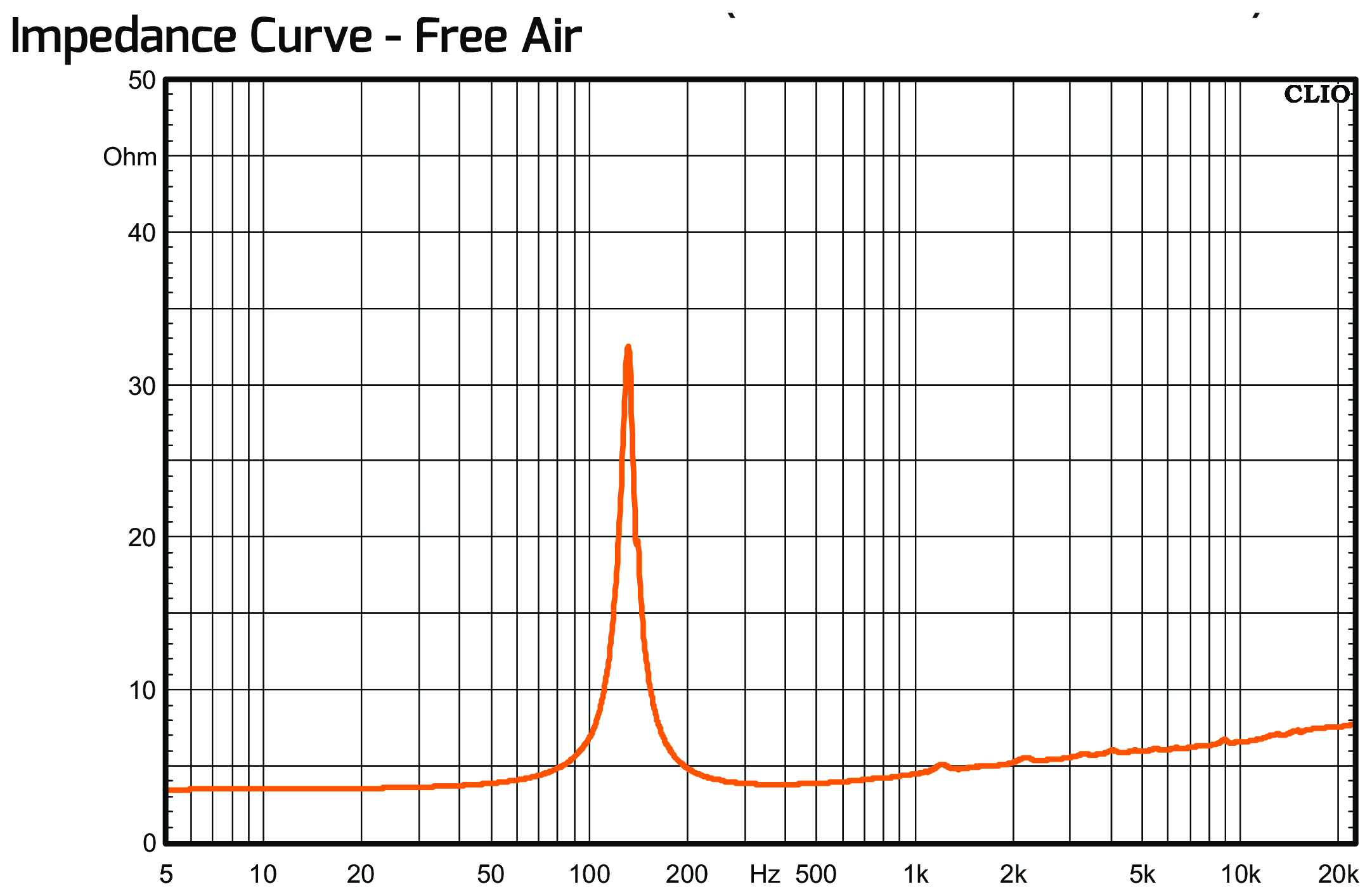

- Nominal impedance Z 4Ω
- DC resistance RE 3.4Ω
- Inductance (1kHz) LE 0.16mH
- VC Diameter 25.4mm
- Winding height HVC 9.2mm
- Winding material Copper Clad Aluminium
- Former material Kapton
Magnet
- Force factor Bl 4.46N/A
- Motor constant Bl/√RE 2.42N/√W
- Air gap height HAG 5mm
Diaphragm
- Effective diameter 140mm
- Effective area SD 154cm²
- Moving mass MMS 8.37g
- Moving mass (without air load) MMD 7g
Suspensions
- Stiffness KMS 5.71N/mm
- Compliance CMS 175µm/N
- Equivalent volume to the compliance VAS 5.77L
- Mechanical resistance RMS 0.68N·s/m

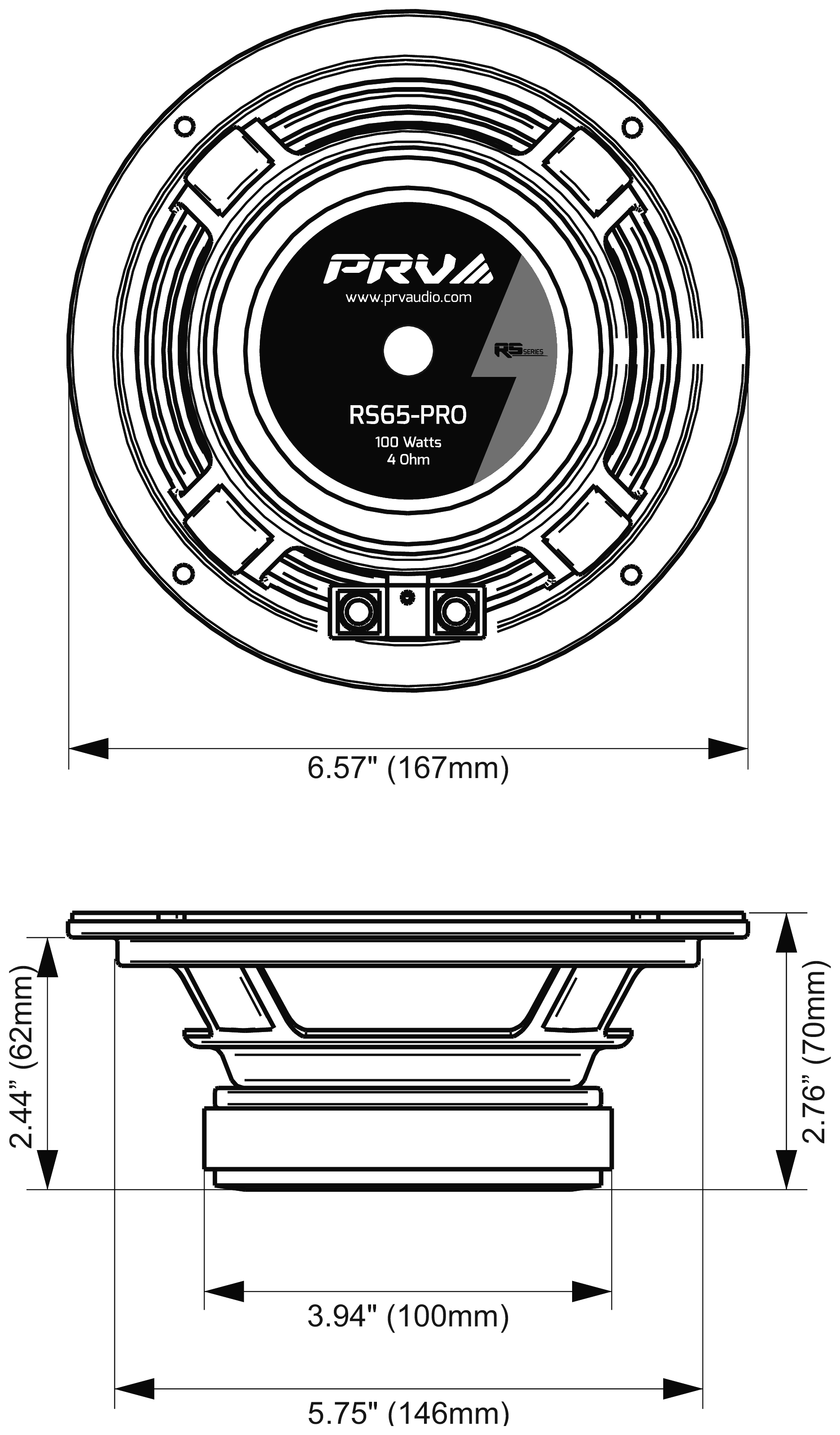

Dimensions
- Nominal diameter 6.5″
- 152mm
- Overall diameter 167mm
- Baffle cutout diameter 146mm
- Overall depth 70mm
- Flange thickness 8mm
- Mounting depth 62mm
- Volume occupied by the driver (estimated) 0.41L
- Net weight 1.25kg
- Frame material Stamped Steel
.png)
.png)
.png)
